QZNB-2800 horizontal three- cylinder reciprocating single acting mud pump

Availability:

Specifications:

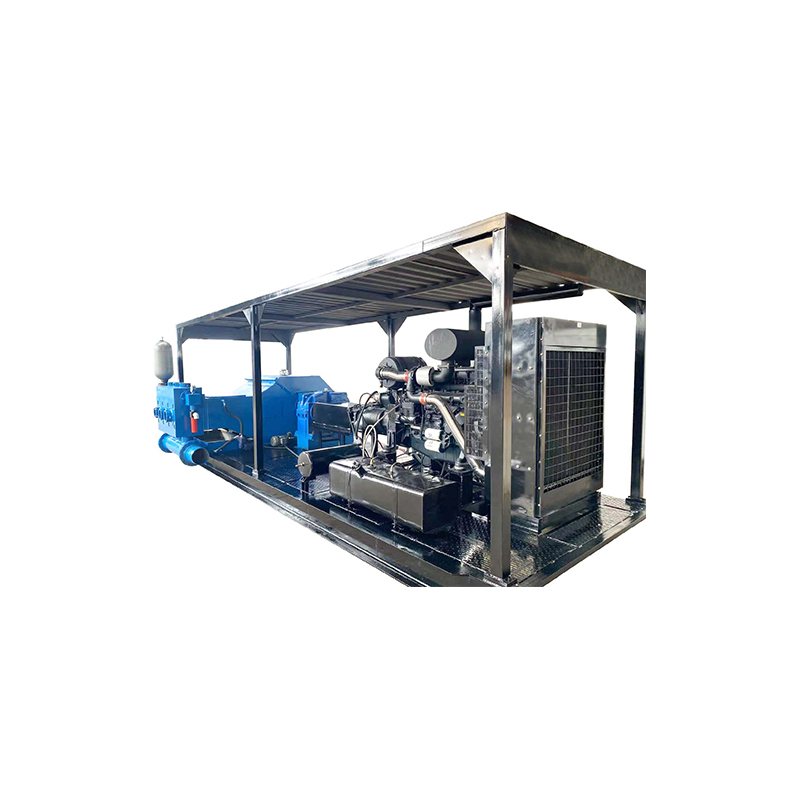

QZNB-2800 mud pump is a horizontal three- cylinder reciprocating single acting mud pump, which is driven by diesel engine, manual shift gear box with wireless remote control.

It is mainly used for matching with trenchless drilling rig of more than 200 tons, and can also be used for grouting, mine drainage and long- distance water delivery and other purposes.

The flow rates and pressures can be controlled by 5 levels, with a wide range of flow and pressure, and can be used for drilling and towing with different pore sizes.

The pump according to the drilling pump design specification and API standard design and manufacture,pump shell is made of high strength steel plate welding, connecting rod cross rolling bearing, cylinder liner with bi-metal type, inner sleeve using high Cr alloy, with hardness of HRC62.
In a word,the pump increases the service life of spare parts, reduce the loss of spare parts.



QZNB-2800 Mud Pump




Type

Horizontal triplex reciprocating single acting piston pump

  Trip(mm)180
  Cylinder diameter(mm)220
  Flow(L/min)800-3500
  Pressure(MPa)5-20
  Input power(KW)300
  Outline dimensions(mm)7000x2800x2400
  Mass(kg)12000
  Diesel engine modelWP12
  Diesel engine powe(KW)353
  Rated rotation speed(r/min)2100
