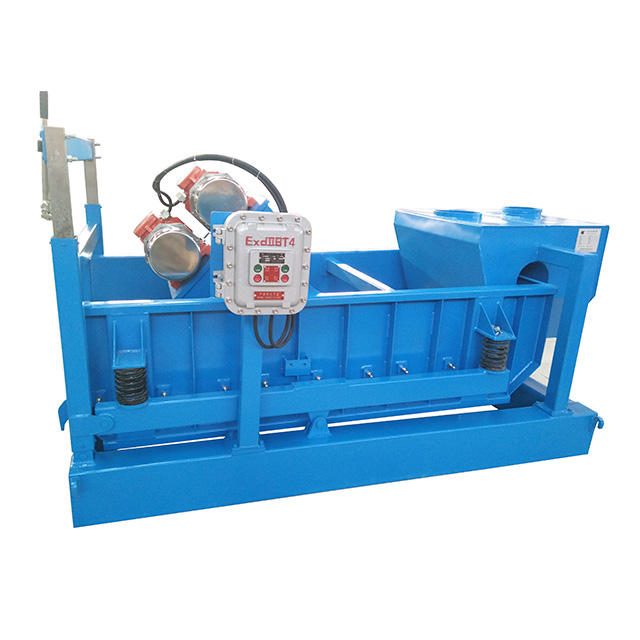

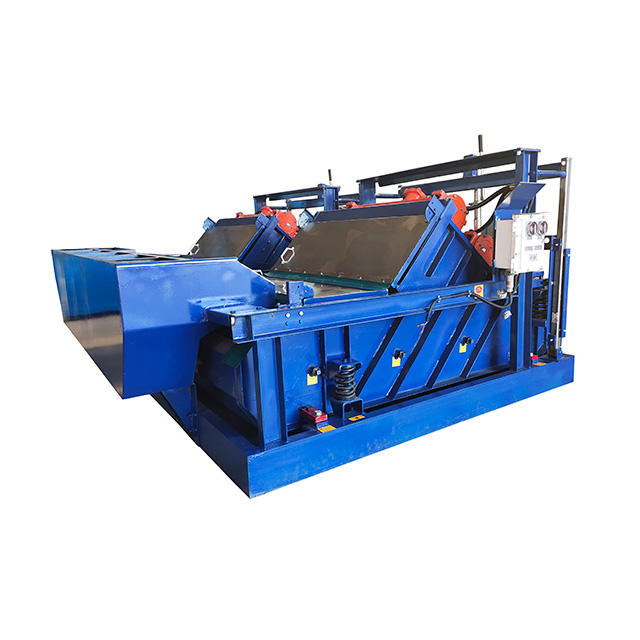

Drilling Solids Control Linear Type Shale Shaker

Drilling Solids Control Linear Type Shale Shaker

Universal screens
Adjustable vibration motor
Heat treatment of vibration shaft
Screen box Angle adjustment
Screen box balancing device


SKU:
Availability:



Inquire PDF Export

Product Description

Product Description

Drilling fluid shale shaker is suitable for the oil and gas drilling solid control system, is the first level of drilling fluid solid/liquid separation equipment.HL Petroleum shale shaker using two the same vibration motors, according to the principle of self synchronous, implements the linear motion of the sieve box along a certain direction, to screen out side by side of cuttings in drilling fluid.

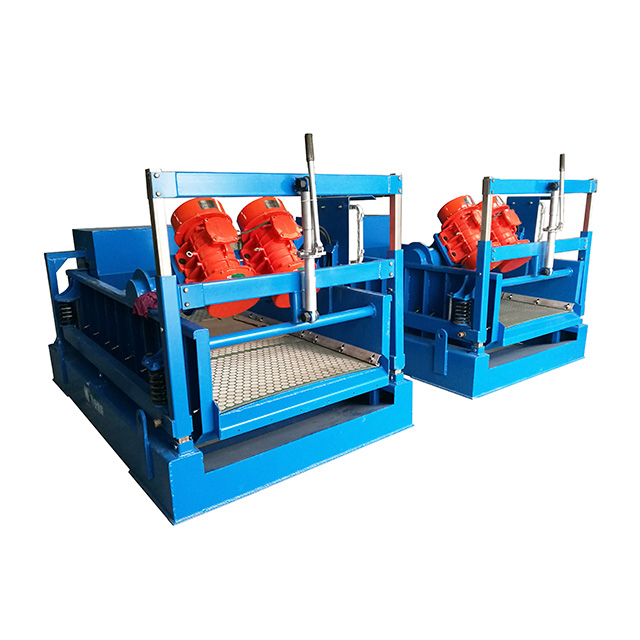

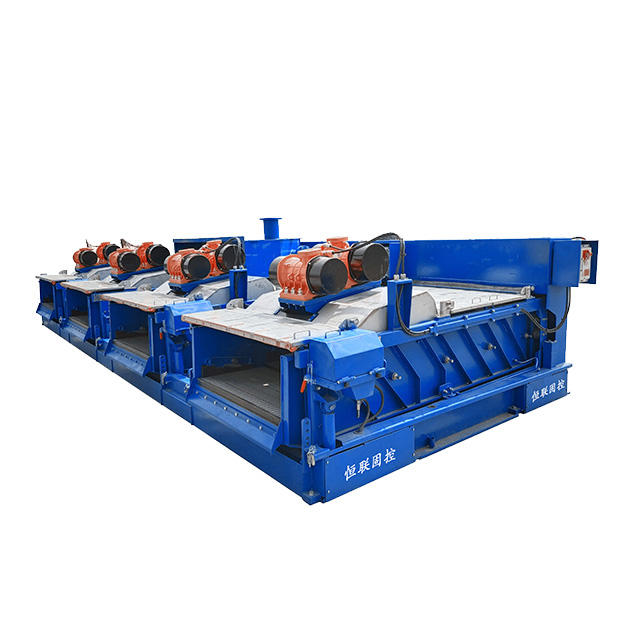

HL Petroleum has single shale shaker, double shale shaker and triple shale shaker 3 kinds of combinations, at the same time,the shale shaker can also be used in solids seperation with the bottom of mud cleaner.Drilling fluid shale shaker has high strength, vibration screening area is large, adjustable Angle of screen box, compact structure, performance is remarkable, the shale shaker is widely used in oil and gas drilling, drilling fluid trenchless horizontal directional crossing, CBM drilling, shale gas, shield spate separation, river silt, environmental protection and other fields.

Linear motion shale shaker feature:

Shale shaker Technical Parameters

Model: HZS703

Handling capacity: 40 L/s

Vibration path: Linear

Vibration amplitude: 5mm

Adjusting range: -1°～+6°

Dimension: 2945×1920×1480mm

Weight: 1680kg
Packing and transportation

Drilling Solids Control Linear Type Shale Shaker Shale Shaker Shaker

FAQ

Q YP Petro manufactures power end components including extension rods, crossheads, crosshead pins, cross pin baffles, upper and lower guide plates, packing boxes, seal rings, and oil seal lips. We also supply crankshaft assemblies, gear sets, and connecting rods for major mud pump models.

A
Yes. YP Petro accepts OEM/ODM orders based on customer drawings, technical specifications, or reverse-engineered samples. Our engineering team can confirm feasibility, recommend material upgrades, and provide quotations within 3-5 working days.
Q What power end parts does YP Petro manufacture?

A
YP Petro manufactures power end components including extension rods, crossheads, crosshead pins, cross pin baffles, upper and lower guide plates, packing boxes, seal rings, and oil seal lips. We also supply crankshaft assemblies, gear sets, and connecting rods for major mud pump models.
Q What other fluid end parts does YP Petro supply?

A
In addition to cylinder liners, YP Petro supplies a complete range of fluid end parts, including pistons, piston rubber, valve bodies, valve seats, valve rubber, liner seals, cylinder head gaskets, valve cover seals, piston rods, clamp assemblies, valve covers, cylinder heads, flange heads, cylinder flanges, cylinder covers, and inhalation capsules. We also supply dampener diaphragms, pressure gauges, fittings, relief valves, and exhaust valves.
Q What size range of cylinder liners does YP Petro offer?

A
YP Petro cylinder liners are available in metric sizes from 100mm to 180mm and imperial sizes from 3" to 7.5" (including 3", 3.5", 4", 4.5", 5", 5.5", 6", 6.25", 6.5", 6.75", 7", 7.25", 7.5"). Custom sizes are available on request.
Q What is the difference between bi-metal, ceramic, chrome-plated, and high-frequency quenching cylinder liners?

A
| Type | Inner Material | Hardness | Service Life | Best For |
| Bi-Metal | High-chromium cast iron | HRC 62 | 800h+ | General high-pressure, abrasive drilling |
| Ceramic | Al₂O₃ or Zirconia | HRC 80+ | 1500h+ | Extreme abrasion, high-sand formations |
| Chrome-Plated | Hard chrome coating | HRC 55 | 300-400h | Moderate conditions, budget operations |
| High-Frequency Quenching | Quenched alloy iron | HRC 50 | 200-300h | Light-duty, low-cost applications |
