Solids Control Equipment Mud Mixer Oilfield Drilling Mud Blender Mixer Reducer

Solids Control Equipment Mud Mixer Oilfield Drilling Mud Blender Mixer Reducer


SKU:
Availability:



Inquire PDF Export

Product Description

Product Description

Solids Control Jet Mud Mixing Pump For Sale

The HHQ150 jet mixing pump, also called jet mud mixer, is a solids control equipment composed of a centrifugal mud pump and a jet mixing funnel connected with a manifold valve and installed on a base.

Solid control jet mud mixing pump is used to prepare drilling fluid and change the density, viscosity, acidity and alkalinity of the drilling fluid.

This jet mud mixing pump can meet the requirements of aggravation and preparation of drilling fluid in the solids control system of drilling from 1000 meters to 9000 meters, with safe and reliable performance and convenient transportation.

Technical Parameters of Jet Mud Mixing Pump

Model	HHQ150	HHQ125	HHQ100	HHQ80
Matching Sand Pump	SB8×6(55kW)	SB6×5(45kW)	SB5×4(37kW)	SB4×3(15kW)
Capacity	240m³/h	180m³/h	120m³/h	80m³/h
Inlet Diameter	200mm	155mm	125mm	100mm
Output Diameter	150mm	125mm	100mm	80mm
Nozzle Diameter	30mm	28mm	25mm	20mm
Dimension:L×W×H mm	220017001200	220017001200	200016501100	180016001000
Weight (kg)	1300	1200	1100	700

Application of Jet Mud Mixing Pump

A Jet Mud Mixing Pump is commonly used in the oil drilling industry to mix drilling fluids, also known as mud, which is used to lubricate and cool the drill bit and to aid in the removal of rock cuttings during drilling operations. The pump works by creating a high velocity suction through a venturi nozzle which draws the mud from the mixing tank and then mixes it with water and other chemicals before discharging it back into the tank. This process helps to maintain the desired characteristics of the mud, such as viscosity and density, which are important for efficient drilling operations. Additionally, Jet Mud Mixing Pumps can also be used in other industries such as mining, construction, and waste water treatment.

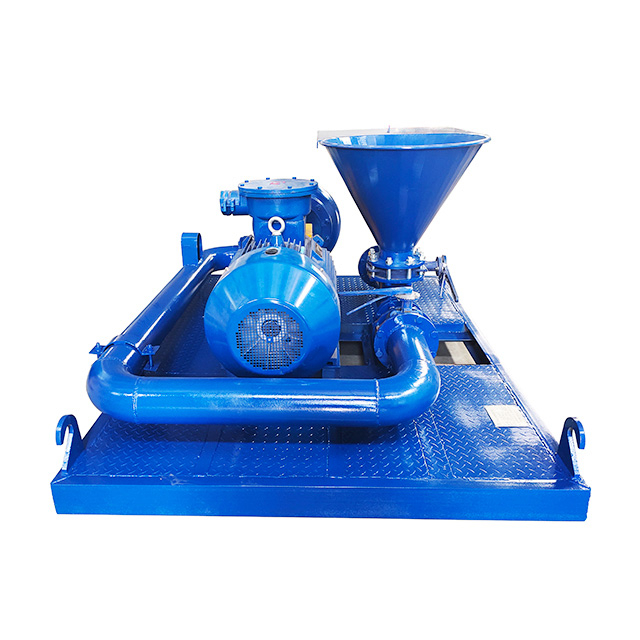

Display of Jet Mud Mixing Pump

Solids Control Jet Mud Mixing Pump For Sale

Yingpai Drilling Machinery is professional solid control jet mud mixing pump supplier. We only make the most reliable products and the best prices. we will provide you with complete sales services and customization service based on your requirements. If you want to know more, welcome to contact us any questions at any time.

Hot Sale Solids Control Equipment the mud mixer oilfield drilling mud blender mixer reducer Mud Mixer Mixer Reducer reducer

FAQ

Q YP Petro manufactures power end components including extension rods, crossheads, crosshead pins, cross pin baffles, upper and lower guide plates, packing boxes, seal rings, and oil seal lips. We also supply crankshaft assemblies, gear sets, and connecting rods for major mud pump models.

A
Yes. YP Petro accepts OEM/ODM orders based on customer drawings, technical specifications, or reverse-engineered samples. Our engineering team can confirm feasibility, recommend material upgrades, and provide quotations within 3-5 working days.
Q What power end parts does YP Petro manufacture?

A
YP Petro manufactures power end components including extension rods, crossheads, crosshead pins, cross pin baffles, upper and lower guide plates, packing boxes, seal rings, and oil seal lips. We also supply crankshaft assemblies, gear sets, and connecting rods for major mud pump models.
Q What other fluid end parts does YP Petro supply?

A
In addition to cylinder liners, YP Petro supplies a complete range of fluid end parts, including pistons, piston rubber, valve bodies, valve seats, valve rubber, liner seals, cylinder head gaskets, valve cover seals, piston rods, clamp assemblies, valve covers, cylinder heads, flange heads, cylinder flanges, cylinder covers, and inhalation capsules. We also supply dampener diaphragms, pressure gauges, fittings, relief valves, and exhaust valves.
Q What size range of cylinder liners does YP Petro offer?

A
YP Petro cylinder liners are available in metric sizes from 100mm to 180mm and imperial sizes from 3" to 7.5" (including 3", 3.5", 4", 4.5", 5", 5.5", 6", 6.25", 6.5", 6.75", 7", 7.25", 7.5"). Custom sizes are available on request.
Q What is the difference between bi-metal, ceramic, chrome-plated, and high-frequency quenching cylinder liners?

A
| Type | Inner Material | Hardness | Service Life | Best For |
| Bi-Metal | High-chromium cast iron | HRC 62 | 800h+ | General high-pressure, abrasive drilling |
| Ceramic | Al₂O₃ or Zirconia | HRC 80+ | 1500h+ | Extreme abrasion, high-sand formations |
| Chrome-Plated | Hard chrome coating | HRC 55 | 300-400h | Moderate conditions, budget operations |
| High-Frequency Quenching | Quenched alloy iron | HRC 50 | 200-300h | Light-duty, low-cost applications |
