Home » Products » Drilling Rig Mud Circulation System » Drilling pump » Other mud pump parts » Stainless steel manometer / Mud pump pressure gauge / high pressure measuring instrument

PRODUCT CATEGORY

Stainless steel manometer / Mud pump pressure gauge / high pressure measuring instrument

Stainless steel manometer / Mud pump pressure gauge / high pressure measuring instrument

Model:
all
Brand:
hebei yingpai
Code:
84139100


SKU:
Availability:



Inquire PDF Export

Product Description

Product Description

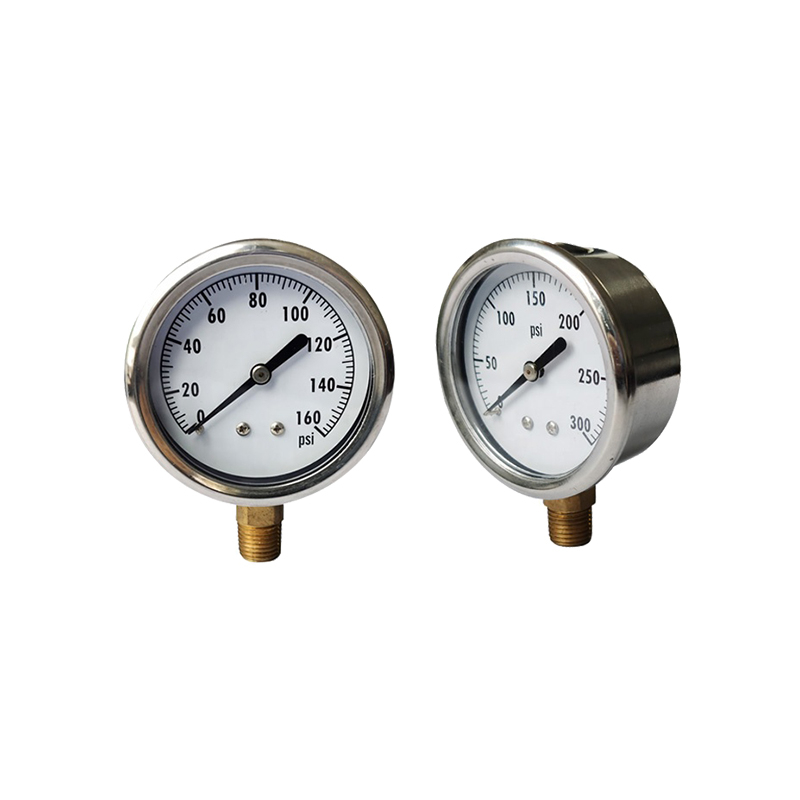

Pressure Gauge

HTB1i0.NXG67gK0jSZFHq6y9jVXaF

Name	Heavy duty Pressure gauge (SS/BRASS)
Model	117CL
Diameter	2.5"(63mm),4"(100mm)
Accuracy	±1%,±1.6%
Range	-30"Hg-0 (vacuum) -30"Hg-24bar(Compound) 0-0.6 to 1000bar
Case	Stainless steel with roll ring
Wetted Parts	copper alloy
Specifications	Nominalsize: 2.5"(63mm),4"(100mm),6"(150mm) Accuracy: +-1.6%of full scales for 2.5"( 63mm) +-1.0% of full scales for4" (100mm),6"(150mm) Range available(nostock): 0...0.6to0...1000 bar or all other equivalent vacuum or combined pressure and vacuum ranges
Pressure limitation	2.5"(63mm):Steady: 3/4xFull scale value luctuating:2/3x Full scale value Shorttime:Full scale value 4"(100mm),6"(160mm) Steady: Full scale Fluctuating: 0.9xfull scale value Short time:1.3x full scale value
Application	Sturdy Industrial Pressure Gauge designed in compliance with the Operational safety requirements of EN837-1 Reliable Pressure Gauge for the machine and plant construction industry as well as building services industry For Gaseous and Liquid Media that are not highly viscous or crystallising and will not attack cooper alloy parts Proven in refrigeration technology
Special Features	LongserviceLife,Robust Cost-effective and reliable Tocombine with SHUNJAY diaphram seals Scale range sup to0.....1000bar

Pressure Gauge Mud pump pressure gauge Liquid Filled Pressure Gauge Stainless steel manometer high pressure measuring instrument manometer gauge stainless steel pressure gauge oil pressure gauge

FAQ

Q YP Petro manufactures power end components including extension rods, crossheads, crosshead pins, cross pin baffles, upper and lower guide plates, packing boxes, seal rings, and oil seal lips. We also supply crankshaft assemblies, gear sets, and connecting rods for major mud pump models.

A
Yes. YP Petro accepts OEM/ODM orders based on customer drawings, technical specifications, or reverse-engineered samples. Our engineering team can confirm feasibility, recommend material upgrades, and provide quotations within 3-5 working days.
Q What power end parts does YP Petro manufacture?

A
YP Petro manufactures power end components including extension rods, crossheads, crosshead pins, cross pin baffles, upper and lower guide plates, packing boxes, seal rings, and oil seal lips. We also supply crankshaft assemblies, gear sets, and connecting rods for major mud pump models.
Q What other fluid end parts does YP Petro supply?

A
In addition to cylinder liners, YP Petro supplies a complete range of fluid end parts, including pistons, piston rubber, valve bodies, valve seats, valve rubber, liner seals, cylinder head gaskets, valve cover seals, piston rods, clamp assemblies, valve covers, cylinder heads, flange heads, cylinder flanges, cylinder covers, and inhalation capsules. We also supply dampener diaphragms, pressure gauges, fittings, relief valves, and exhaust valves.
Q What size range of cylinder liners does YP Petro offer?

A
YP Petro cylinder liners are available in metric sizes from 100mm to 180mm and imperial sizes from 3" to 7.5" (including 3", 3.5", 4", 4.5", 5", 5.5", 6", 6.25", 6.5", 6.75", 7", 7.25", 7.5"). Custom sizes are available on request.
Q What is the difference between bi-metal, ceramic, chrome-plated, and high-frequency quenching cylinder liners?

A
| Type | Inner Material | Hardness | Service Life | Best For |
| Bi-Metal | High-chromium cast iron | HRC 62 | 800h+ | General high-pressure, abrasive drilling |
| Ceramic | Al₂O₃ or Zirconia | HRC 80+ | 1500h+ | Extreme abrasion, high-sand formations |
| Chrome-Plated | Hard chrome coating | HRC 55 | 300-400h | Moderate conditions, budget operations |
| High-Frequency Quenching | Quenched alloy iron | HRC 50 | 200-300h | Light-duty, low-cost applications |
