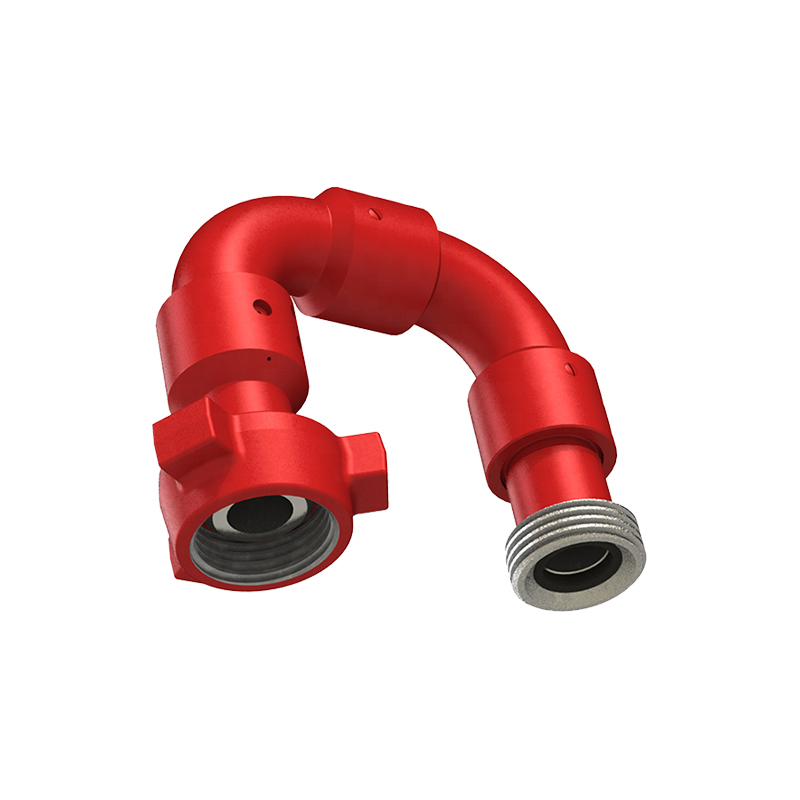

Oil Field High Pressure Swivel Joint/API oil drilling equipment Elbow and Union in manifold Oil and Gas/bent pipe

Oil Field High Pressure Swivel Joint/API oil drilling equipment Elbow and Union in manifold Oil and Gas/bent pipe

Long radius swivel joints can minimize fluid shock with good performance of resistance for scouring and erosion. Short radius swivel joints for low pressure operation due to limited installation space.

All sizes of swivel joints sealing parts made of synthetic rubber with release hole are fitted with blowout preventing metal ring. When sealing parts leak, pressure will be automatically relieved. Safety performance is enhanced. Usually good lubrication can ensure that swivel joints work normally without much maintenance

Model:
all
Brand:
Xinhuafa
Code:
84139100


SKU:
Availability:



Inquire PDF Export

Product Description

Product Description

Oil Field High Pressure Swivel Joint/API oil drilling equipment Elbow and Union in manifold Oil and Gas/bent pipe

Product Description

Long and short radius swivel joint:

Long radius swivel joints can minimize fluid shock with good performance of resistance for scouring and erosion. Short radius swivel joints for low pressure operation due to limited installation space.

All sizes of swivel joints sealing parts made of synthetic rubber with release hole are fitted with blowout preventing metal ring. When sealing parts leak, pressure will be automatically relieved. Safety performance is enhanced. Usually good lubrication can ensure that swivel joints work normally without much maintenance

Technical parameter

Description

Specification

Model

End Connection

Short radius swivel joints

1''x3500psi(25Mpa)

1"-1/2x6000psi(42Mpa)

1"-1/2x10000psi(70Mpa)

2"x6000psi(42Mpa)

2"x10000psi(70Mpa)

Style 10,50

LP Female Thread

1-1/2"Long radius swivel joints

1"-1/2x10000psi(70Mpa)

Style 10

Style 50

LP Female

2"Long radius swivel joints

2"x10000psi(70Mpa)

2"x15000psi(105Mpa)

2"x20000psi(140Mpa)

Style 10,20,50

Style 10,50

Style 10,50,80,100

Style 20,30,60

Style 10,50,80,100

Style 20,30,60

Style 10,50

LP or TBG Female

MxF(Tr100x12.7)

MxF(Tr100x12)

MxF,MxM,FxF

MxF(Tr/America) MxM

MxF,MxM,FxF

MxF(Tr/America)MxM

MxF,MxM

3"Long radius swivel joints

3"x10000psi(70Mpa)

3"x15000psi(105Mpa)

3"x20000psi(140Mpa)

Style 20,50

Style 10,50,80,100

Style 20,30,60

Style 10,50,80,100

Style 20,30,60

Style 10,50

Lp or TBG Female

MxF,MxM,FxF

MxF(Tr,America) MxM

MxF,MxM,FxF

MxF,MxM

4"Long radius swivel joints

4"x6000psi(42Mpa)

4"10000psi(70Mpa)

Style 10,50

MxF,MxM,FxF

bent pipe Oil Drilling Union Chiksan Joint For Oilfield Swivel Joint Product Oil Field High Pressure Swivel Joint Union In Manifold Oil And Gas Buy High Quality Active Elbow

FAQ

Q YP Petro manufactures power end components including extension rods, crossheads, crosshead pins, cross pin baffles, upper and lower guide plates, packing boxes, seal rings, and oil seal lips. We also supply crankshaft assemblies, gear sets, and connecting rods for major mud pump models.

A
Yes. YP Petro accepts OEM/ODM orders based on customer drawings, technical specifications, or reverse-engineered samples. Our engineering team can confirm feasibility, recommend material upgrades, and provide quotations within 3-5 working days.
Q What power end parts does YP Petro manufacture?

A
YP Petro manufactures power end components including extension rods, crossheads, crosshead pins, cross pin baffles, upper and lower guide plates, packing boxes, seal rings, and oil seal lips. We also supply crankshaft assemblies, gear sets, and connecting rods for major mud pump models.
Q What other fluid end parts does YP Petro supply?

A
In addition to cylinder liners, YP Petro supplies a complete range of fluid end parts, including pistons, piston rubber, valve bodies, valve seats, valve rubber, liner seals, cylinder head gaskets, valve cover seals, piston rods, clamp assemblies, valve covers, cylinder heads, flange heads, cylinder flanges, cylinder covers, and inhalation capsules. We also supply dampener diaphragms, pressure gauges, fittings, relief valves, and exhaust valves.
Q What size range of cylinder liners does YP Petro offer?

A
YP Petro cylinder liners are available in metric sizes from 100mm to 180mm and imperial sizes from 3" to 7.5" (including 3", 3.5", 4", 4.5", 5", 5.5", 6", 6.25", 6.5", 6.75", 7", 7.25", 7.5"). Custom sizes are available on request.
Q What is the difference between bi-metal, ceramic, chrome-plated, and high-frequency quenching cylinder liners?

A
| Type | Inner Material | Hardness | Service Life | Best For |
| Bi-Metal | High-chromium cast iron | HRC 62 | 800h+ | General high-pressure, abrasive drilling |
| Ceramic | Al₂O₃ or Zirconia | HRC 80+ | 1500h+ | Extreme abrasion, high-sand formations |
| Chrome-Plated | Hard chrome coating | HRC 55 | 300-400h | Moderate conditions, budget operations |
| High-Frequency Quenching | Quenched alloy iron | HRC 50 | 200-300h | Light-duty, low-cost applications |
