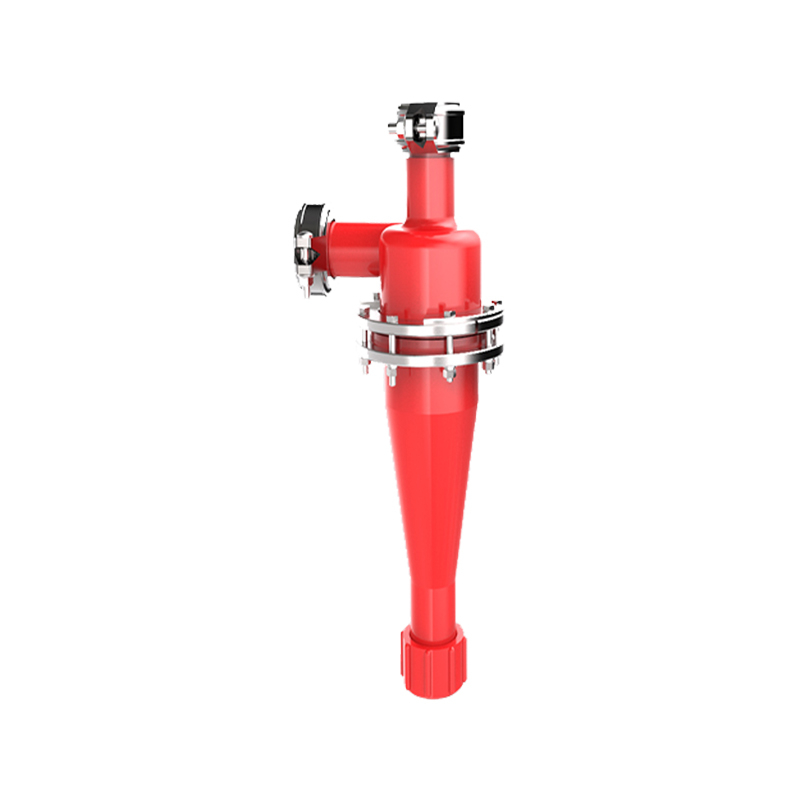

Desilter cones
High quality oil drilling rig equipment desilter cones for mud clean.

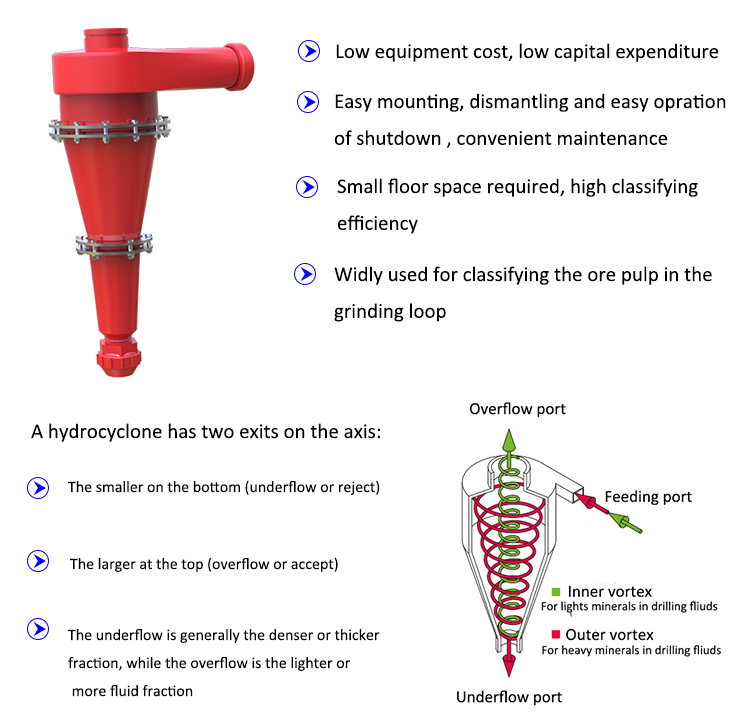

Hydrocyclones is also called cyclone separator. Hydrocyclones include hydrocyclone desander (10inch cone) and hydrocyclone desilter (4inch cone), which is used to separate sand and silt from the drilling fluid. Centrifugal pump is used to pump the drilling fluids from mud tank into the set of hydrocyclones.
| SPECIFICATION FOR HYDROCYCLONE Desilter Cones | ||||
| Specifications | Diameter(mm) | Inlet Pressure(MPa) | Capacity(m3/h) | Cut Size(μm) |
| FX840 | 840 | 0.04-0.15 | 500-900 | 74-350 |
| FX710 | 710 | 0.04-0.15 | 400-550 | 74-250 |
| FX 660 | 660 | 0.04-0.15 | 160-450 | 74-220 |
| FX610 | 610 | 0.04-0.15 | 200-300 | 74-200 |
| FX500 | 500 | 0.04-0.2 | 140-240 | 74-200 |
| FX400 | 400 | 0.04-0.2 | 100-170 | 74-150 |
| FX350 | 350 | 0.04-0.2 | 70-160 | 50-150 |
| FX300 | 300 | 0.04-0.2 | 45-90 | 50-150 |
| FX250 | 250 | 0.04-0.3 | 40-80 | 40-100 |
| FX200 | 200 | 0.04-0.3 | 25-40 | 40-100 |
| FX150 | 150 | 0.04-0.3 | 14-35 | 20-74 |
| FX125 | 125 | 0.04-0.3 | 8-20 | 20-50 |
| FX100 | 100 | 0.04-0.3 | 8-20 | 20-50 |
| FX75 | 75 | 0.1-0.4 | 4-10 | 10-40 |
| FX50 | 50 | 0.1-0.4 | 2-5 | 7-40 |
| FX25 | 25 | 0.1-0.6 | 0.3-1 | 5-20 |
| FX10 | 10 | 0.1-0.6 | 0.05-0.1 | 1-5 |
