sealed bearing oil well hard rock tci tricone drill bit

sealed bearing oil well hard rock tci tricone drill bit

Model:
all
Brand:
hebei yingpai
Code:
84139100


SKU:
Availability:



Inquire PDF Export

Product Description

Product Description

Product Overview

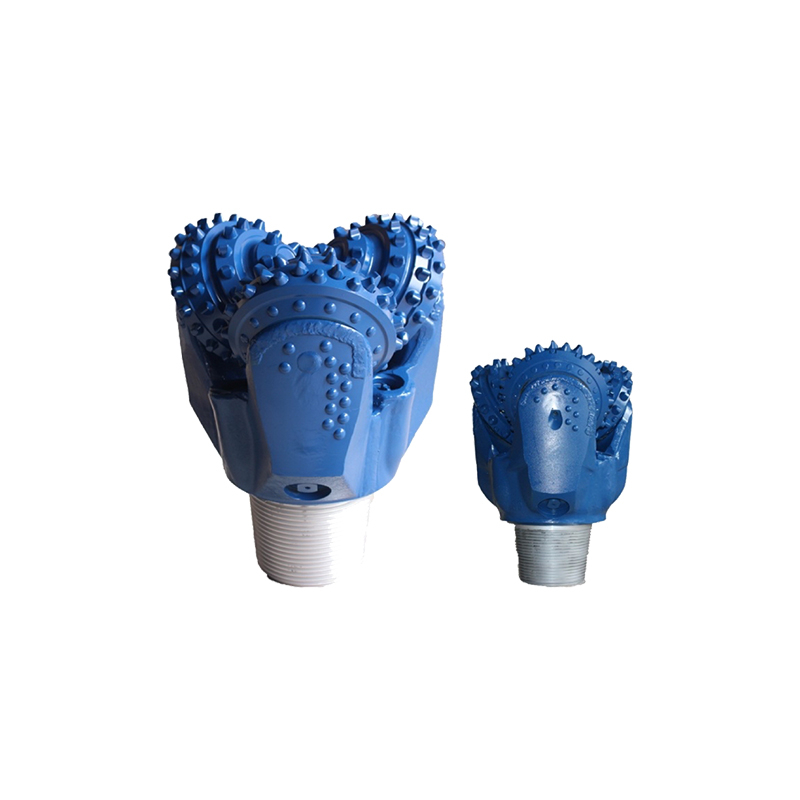

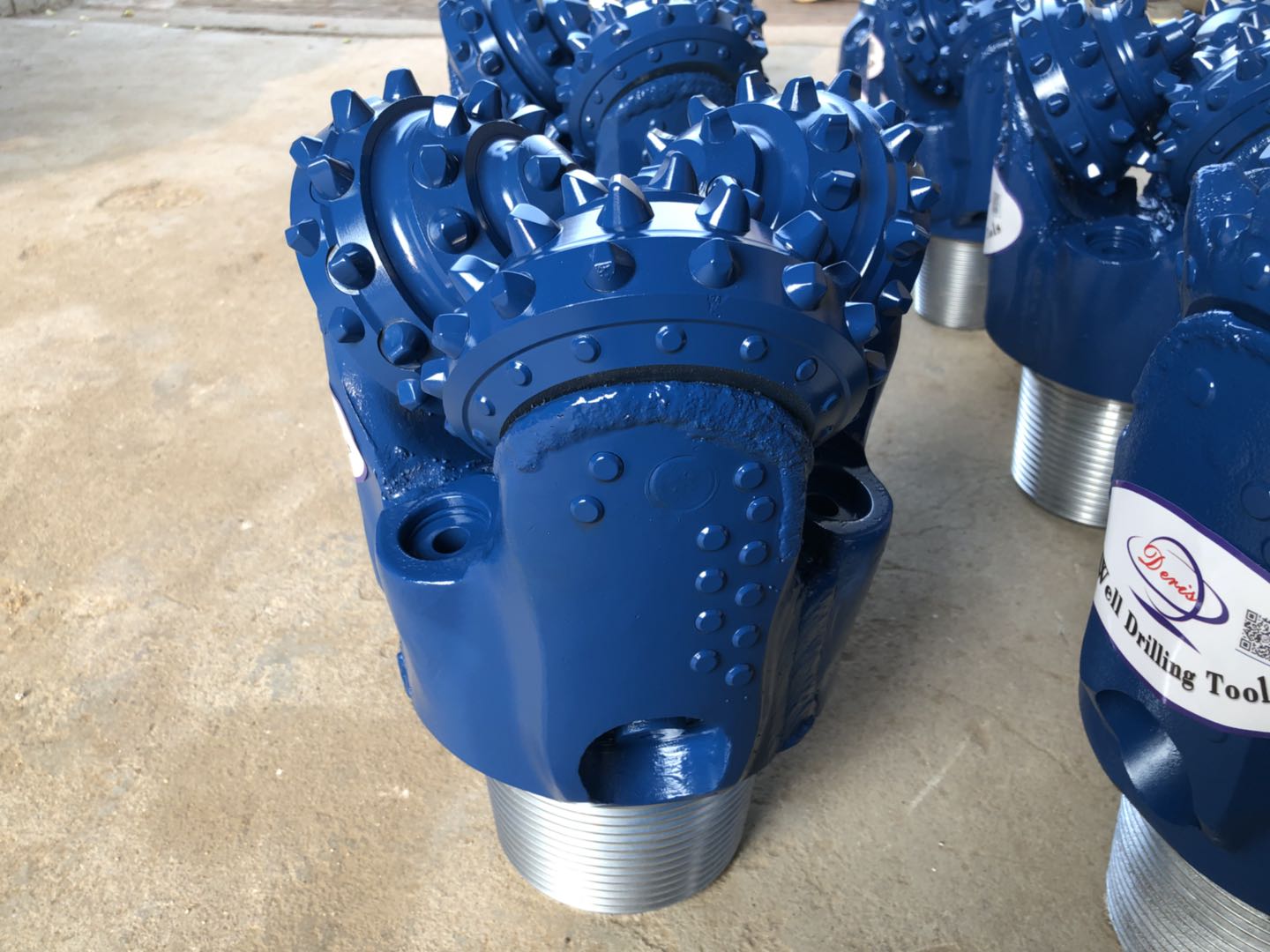

factory 8 1/2" sealed bearing oil well hard rock tci tricone drill bit

 The Advantages of Using a Tri Cone Over Other Drill Bits
1)There is a Tri Cone suitable for any rock formation
2) Tricone bit is versatile and can handle changing formations
3)Tri Cones are reasonably priced, long lasting and have an efficient drilling rate
4)Tricone is that the roller cones have high end sealed bearings; extremely high quality tungsten carbide and diamond gauge
protection throughout the drill bit as well as skirt tail hard facing and optimized hydraulics. These roller cone drill bits are
designed to go to extreme depths in extreme conditions and in situations where they cannot fail.

Basical Specification
Size of tricone bit	8 1/2" inch (215.9 mm)
Thread Connection	4 1/2" API reg pin
IADC CODE	537G
Bearing type	rubber o-ring journal bearing
Operating Parameters
WOB	0.35~1.05 KN/mm (bit Dia.)
Rotary speed	110~40 r/min
Make up torque	16.3-21.7 KN.M
Formation: Medium formation with high compressive strength ,and high drillability ,such as mudstone,gypsum,salt,soft limestone,etc.

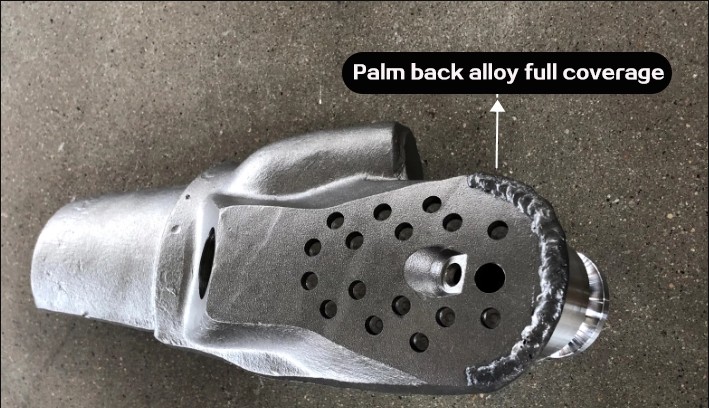

Palm back alloy full coverage

 Protection the bearing ,prevent the sand  and rock into bearing , and protect the arm

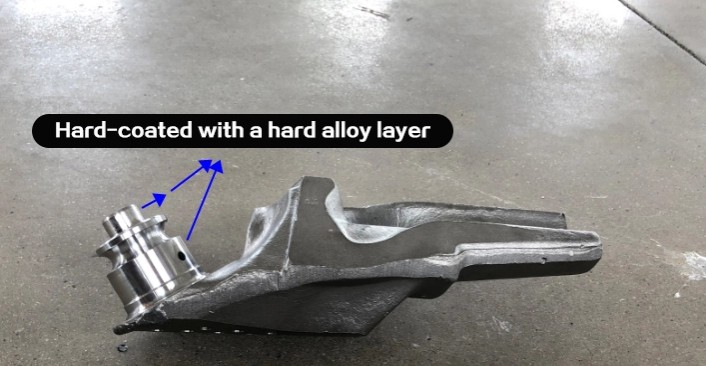

Hard-coated with a hard alloy layer

 This can reduce the bearing wear and greatly improve the service life of the bit

Hard alloy nozzle

 Hard alloy nozzle Can control the flow of water, reduce the heat in the process of the bit, increase the service life of the bit

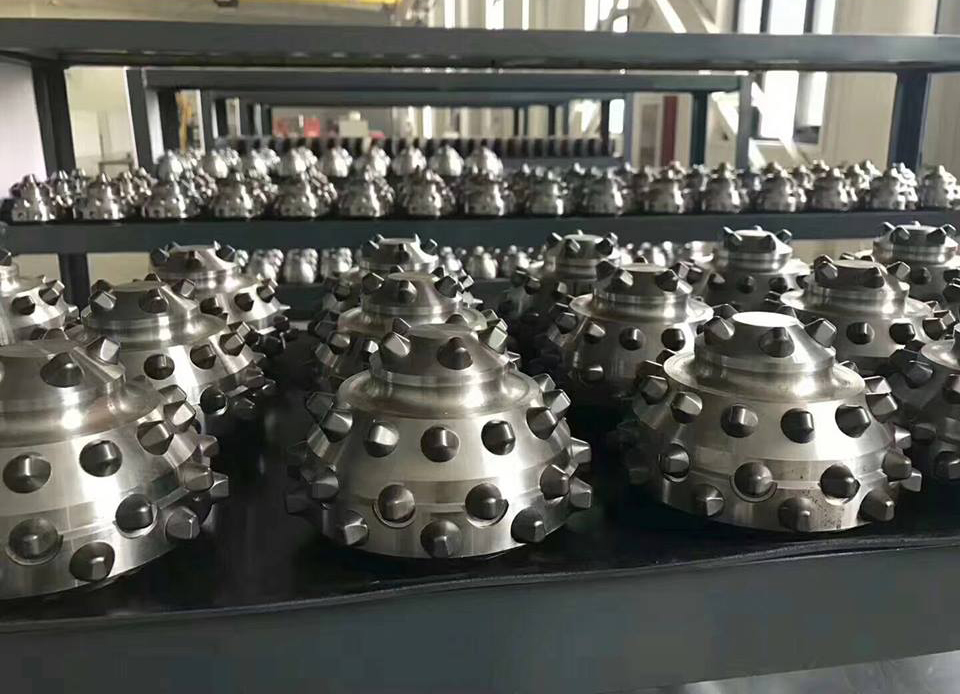

Cutting Structure

The wear-resistance of the teeth is enhanced with premium tungsten carbide hardfacing on the tooth surfaces for the steel tooth bit.The durability of permium tungsten carbide inserts is improved with new formulas and new techniques for insert bit.

Tricone Drill Bit Tricone Bit 8 1/2"metal Sealed Tricone Drill Bit Drill Bit

FAQ

Q YP Petro manufactures power end components including extension rods, crossheads, crosshead pins, cross pin baffles, upper and lower guide plates, packing boxes, seal rings, and oil seal lips. We also supply crankshaft assemblies, gear sets, and connecting rods for major mud pump models.

A
Yes. YP Petro accepts OEM/ODM orders based on customer drawings, technical specifications, or reverse-engineered samples. Our engineering team can confirm feasibility, recommend material upgrades, and provide quotations within 3-5 working days.
Q What power end parts does YP Petro manufacture?

A
YP Petro manufactures power end components including extension rods, crossheads, crosshead pins, cross pin baffles, upper and lower guide plates, packing boxes, seal rings, and oil seal lips. We also supply crankshaft assemblies, gear sets, and connecting rods for major mud pump models.
Q What other fluid end parts does YP Petro supply?

A
In addition to cylinder liners, YP Petro supplies a complete range of fluid end parts, including pistons, piston rubber, valve bodies, valve seats, valve rubber, liner seals, cylinder head gaskets, valve cover seals, piston rods, clamp assemblies, valve covers, cylinder heads, flange heads, cylinder flanges, cylinder covers, and inhalation capsules. We also supply dampener diaphragms, pressure gauges, fittings, relief valves, and exhaust valves.
Q What size range of cylinder liners does YP Petro offer?

A
YP Petro cylinder liners are available in metric sizes from 100mm to 180mm and imperial sizes from 3" to 7.5" (including 3", 3.5", 4", 4.5", 5", 5.5", 6", 6.25", 6.5", 6.75", 7", 7.25", 7.5"). Custom sizes are available on request.
Q What is the difference between bi-metal, ceramic, chrome-plated, and high-frequency quenching cylinder liners?

A
| Type | Inner Material | Hardness | Service Life | Best For |
| Bi-Metal | High-chromium cast iron | HRC 62 | 800h+ | General high-pressure, abrasive drilling |
| Ceramic | Al₂O₃ or Zirconia | HRC 80+ | 1500h+ | Extreme abrasion, high-sand formations |
| Chrome-Plated | Hard chrome coating | HRC 55 | 300-400h | Moderate conditions, budget operations |
| High-Frequency Quenching | Quenched alloy iron | HRC 50 | 200-300h | Light-duty, low-cost applications |
