Product Description

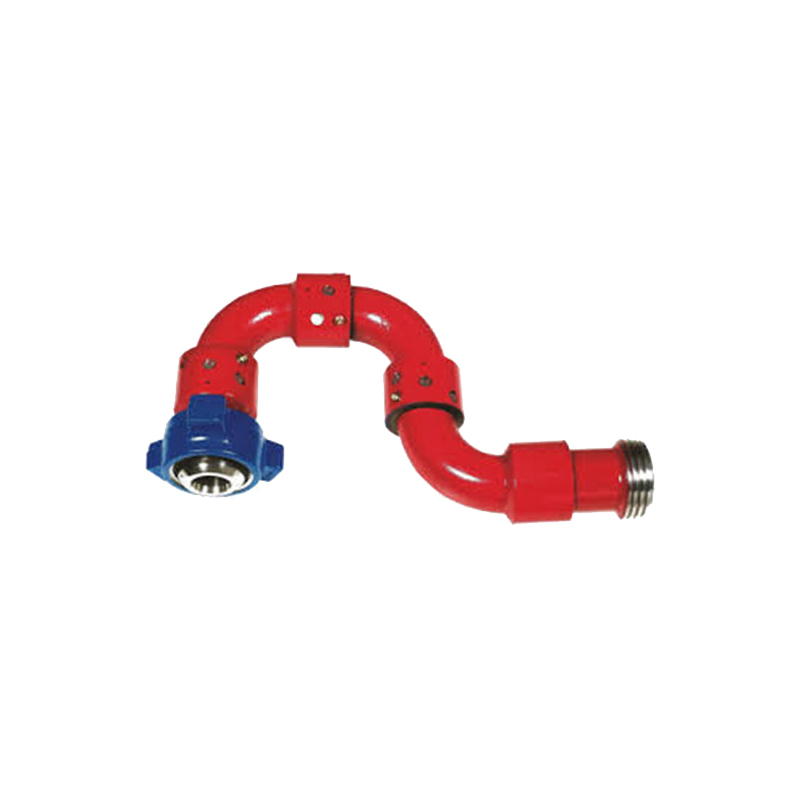

Oil Field High Pressure Swivel Joint/API oil drilling equipment Elbow and Union in manifold Oil and Gas


Product Description

Long and short radius swivel joint:

Long radius swivel joints can minimize fluid shock with good performance of resistance for scouring and erosion. Short radius swivel joints for low pressure operation due to limited installation space.


All sizes of swivel joints sealing parts made of synthetic rubber with release hole are fitted with blowout preventing metal ring. When sealing parts leak, pressure will be automatically relieved. Safety performance is enhanced. Usually good lubrication can ensure that swivel joints work normally without much maintenance


Technical parameter


Description

Specification

Model

End Connection

Short radius swivel joints

1''x3500psi(25Mpa)

1"-1/2x6000psi(42Mpa)

1"-1/2x10000psi(70Mpa)

2"x6000psi(42Mpa)

2"x10000psi(70Mpa)

Style 10,50

Style 10,50

Style 10,50

Style 10,50

Style 10,50



 LP Female Thread

 LP Female Thread

 LP Female Thread







 1-1/2"Long radius swivel joints

 1"-1/2x10000psi(70Mpa)

1"-1/2x10000psi(70Mpa)



 Style 10

 Style 50

 LP Female

 LP Female

 2"Long radius swivel joints

 2"x10000psi(70Mpa)

 2"x10000psi(70Mpa)

 2"x10000psi(70Mpa)

 2"x10000psi(70Mpa)

 2"x10000psi(70Mpa)

 2"x15000psi(105Mpa)

 2"x15000psi(105Mpa)

 2"x20000psi(140Mpa)

 Style 10,20,50

 Style 10,50

 Style 10,50

 Style 10,50,80,100

 Style 20,30,60

 Style 10,50,80,100

 Style 20,30,60

 Style 10,50



 LP or TBG Female

 MxF(Tr100x12.7)

 MxF(Tr100x12)

 MxF,MxM,FxF

 MxF(Tr/America) MxM

 MxF,MxM,FxF

 MxF(Tr/America)MxM

 MxF,MxM

 3"Long radius swivel joints

 3"x10000psi(70Mpa)

 3"x10000psi(70Mpa)

 3"x10000psi(70Mpa)

 3"x15000psi(105Mpa)

 3"x15000psi(105Mpa)

3"x20000psi(140Mpa)

 Style 20,50

 Style 10,50,80,100

 Style 20,30,60

 Style 10,50,80,100

 Style 20,30,60

 Style 10,50

 Lp or TBG Female

 MxF,MxM,FxF

 MxF(Tr,America) MxM

 MxF,MxM,FxF

 MxF,MxM

 MxF,MxM

 4"Long radius swivel joints

 4"x6000psi(42Mpa)

 4"10000psi(70Mpa)

 Style 10,50

 Style 10,50

 MxF,MxM,FxF

 MxF,MxM,FxF


Company Information

Features:

Easy maintenance: Our chiksan swivel joints are designed for easy assembly and disassembly. Repair kits are available if necessary.

Easy to replace: standard union connection allows for easy replacement

Structure and appearance: smooth, round bore design minimizes turbulence and pressure drop, long radius and stepped elbows extend durability and service life.



Available:

1. Cold Working Pressure (psi) : 6,000 ~ 20,000

2. Nominal Size (inch) : 2 ~ 4

3. End Connection: Fig 602, Fig 1002, Fig 1502, Fig 2202 or Line Pipe Thread

4. Style: 10, 20, 30, 40, 50, 60, 70, 80, 100

5. Sour Gas Service is also available
