Product Description
Superior Quality Wire Rope Slings for Various Applications:
Our wire rope slings are designed to withstand heavy loads and demanding conditions, making them ideal for a diverse range of lifting operations. Whether you need single-leg slings, multi-leg slings, or specialized slings for specific purposes, Juli Sling has you covered. We offer a comprehensive range of wire rope slings crafted from high-quality materials to ensure strength, durability, and long-lasting performance. It is widely used in a variety of lifting, hoisting, and traction equipment.
Also the metallurgical machinery construction field. Such as cranes, construction machinery, shaft lifting, inclined shaft lifting, port loading and unloading, shipbuilding, transportation, mining industry, petroleum, marine engineering, etc.
Specifications

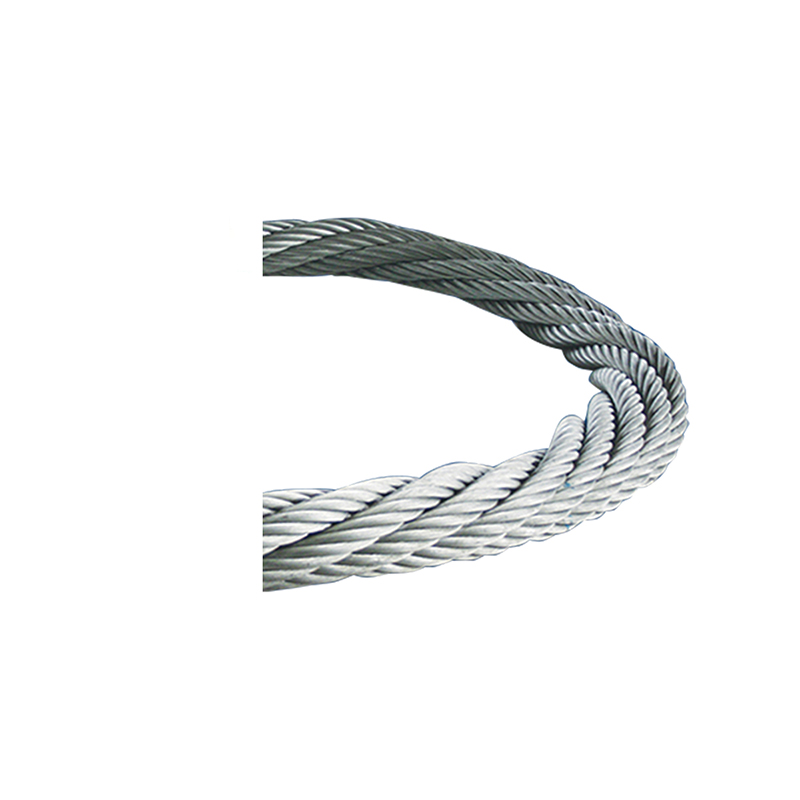

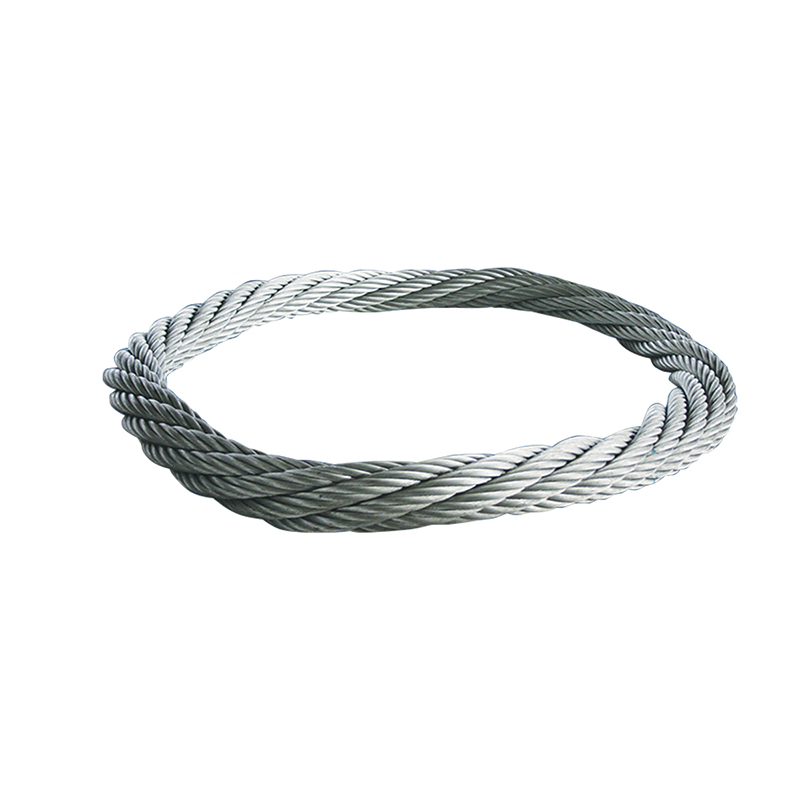

Gromment Sling | |||||
Art.No. | Min.Breaking load (KN) | Single Leg Working Load (KN) | Double Legs Working Load (KN) | Approx.Weight | |
WJT15 | 125 | 25 | 45 | 35 | 0.67 |
WJT18 | 181 | 36 | 65 | 51 | 0.97 |
WJT21 | 246 | 49 | 88 | 69 | 1.33 |
WJT24 | 321 | 64 | 116 | 90 | 1.72 |
WJT27 | 407 | 81 | 147 | 114 | 2.18 |
WJT30 | 503 | 101 | 181 | 141 | 2.70 |
WJT33 | 608 | 122 | 219 | 170 | 3.27 |
WJT36 | 723 | 145 | 260 | 202 | 3.88 |
WJT39 | 850 | 170 | 306 | 238 | 4.56 |
WJT42 | 985 | 197 | 355 | 276 | 5.29 |
WJT48 | 1285 | 257 | 463 | 360 | 6.91 |
WJT54 | 1632 | 326 | 588 | 457 | 8.73 |
WJT60 | 2009 | 402 | 723 | 563 | 10.76 |
WJT66 | 2428 | 486 | 874 | 680 | 13.02 |
WJT72 | 2897 | 579 | 1043 | 811 | 15.52 |
WJT78 | 3397 | 679 | 1223 | 951 | 18.25 |
WJT84 | 3937 | 787 | 1417 | 1102 | 21.13 |
WJT90 | 4519 | 904 | 1627 | 1265 | 24.25 |
WJT96 | 5141 | 1028 | 1851 | 1439 | 27.60 |
WJT102 | 5814 | 1163 | 2093 | 1628 | 31.19 |
WJT108 | 6508 | 1302 | 2343 | 1822 | 34.94 |
WJT114 | 7352 | 1450 | 2611 | 2031 | 38.99 |
WJT120 | 8038 | 1608 | 2894 | 2251 | 43.20 |
WJT126 | 8864 | 1773 | 3191 | 2482 | 47.57 |
WJT132 | 9731 | 1946 | 3503 | 2725 | 52.25 |
WJT138 | 10608 | 2122 | 3819 | 2970 | 57.08 |
WJT144 | 11628 | 2326 | 4186 | 3256 | 62.15 |
WJT150 | 12546 | 2509 | 4517 | 3513 | 67.45 |
WJT156 | 13566 | 2713 | 4884 | 3798 | 72.99 |
WJT162 | 14688 | 2938 | 5288 | 4113 | 78.76 |
WJT168 | 15708 | 3142 | 5655 | 4398 | 85.00 |
WJT174 | 16932 | 3386 | 6096 | 4741 | 90.46 |
WJT180 | 18054 | 3611 | 6499 | 5055 | 97.48 |
WJT186 | 18564 | 3713 | 6683 | 5198 | 108.39 |
WJT192 | 19788 | 3958 | 7124 | 5541 | 115.41 |
WJT198 | 21012 | 4202 | 7564 | 5883 | 122.43 |
WJT204 | 11338 | 4468 | 8042 | 6255 | 130.23 |
WJT210 | 23664 | 4733 | 8519 | 6626 | 138.02 |
WJT216 | 24990 | 4998 | 8996 | 6997 | 145.82 |
WJT222 | 26418 | 5284 | 9510 | 7397 | 154.40 |
WJT228 | 27846 | 5569 | 10025 | 7797 | 162.98 |
WJT234 | 29376 | 5875 | 10575 | 8225 | 171.56 |
WJT240 | 30804 | 6161 | 11089 | 8625 | 180.13 |
WJT246 | 32436 | 6487 | 11677 | 9082 | 189.49 |
WJT252 | 33966 | 6793 | 12228 | 9510 | 198.85 |
WJT258 | 35700 | 7140 | 12852 | 9996 | 208.21 |
WJT264 | 37332 | 7466 | 13440 | 10453 | 218.34 |
WJT270 | 39066 | 7813 | 14064 | 10938 | 227.70 |
High Tensile Gromment Sling | ||||||
Art. No. | Diameter (mm) | Min. Breaking Load (KN) | Single Leg Working Load (KN) | Double Legs Working Load (KN) | Approx. Weight (kg/m) | |
a=45° | a=90° | |||||
GJT66 | 66 | 3111 | 622 | 1120 | 871 | 16.65 |
GJT72 | 72 | 3702 | 740 | 1333 | 1037 | 19.81 |
GJT78 | 78 | 4345 | 869 | 1564 | 1217 | 23.26 |
GJT84 | 84 | 5039 | 1008 | 1814 | 1411 | 26.97 |
GJT96 | 96 | 6581 | 1316 | 2369 | 1843 | 35.22 |
GJT108 | 108 | 8330 | 1666 | 2999 | 2332 | 44.58 |
GJT120 | 120 | 10284 | 2057 | 3702 | 2880 | 55.03 |
GJT132 | 132 | 12443 | 2489 | 4479 | 3484 | 66.59 |
GJT144 | 144 | 14808 | 2962 | 5331 | 4146 | 79.25 |
GJT156 | 156 | 17379 | 3476 | 6256 | 4866 | 93.01 |
GJT168 | 168 | 20156 | 4031 | 7256 | 5644 | 107.87 |
GJT180 | 180 | 23138 | 4628 | 8330 | 6479 | 123.83 |
GJT192 | 192 | 26326 | 5265 | 9477 | 7371 | 140.89 |
GJT198 | 198 | 27997 | 5599 | 10079 | 7839 | 149.84 |
GJT204 | 204 | 29719 | 5944 | 10699 | 8321 | 159.05 |
GJT210 | 210 | 31493 | 6299 | 11337 | 8818 | 168.55 |
GJT216 | 216 | 32383 | 6477 | 11658 | 9067 | 177.04 |
GJT222 | 222 | 34207 | 6841 | 12315 | 9578 | 187.01 |
GJT228 | 228 | 36081 | 7216 | 12989 | 10103 | 197.25 |
GJT234 | 234 | 38005 | 7601 | 13682 | 10641 | 207.77 |
GJT240 | 240 | 39979 | 7996 | 14392 | 11194 | 218.57 |
GJT246 | 246 | 42020 | 8400 | 15125 | 11765 | 241 |
GJT252 | 252 | 44060 | 8810 | 15860 | 12335 | 254 |
GJT258 | 258 | 46205 | 9240 | 16630 | 12935 | 265 |
GJT264 | 264 | 48345 | 9665 | 17405 | 13535 | 280 |
GJT270 | 270 | 50590 | 10115 | 18210 | 14165 | 291 |
GJT276 | 276 | 52835 | 10565 | 19020 | 14790 | 304 |
GJT282 | 282 | 55180 | 11035 | 19865 | 15450 | 318 |
GJT288 | 288 | 57525 | 11505 | 20710 | 16105 | 332 |
GJT294 | 294 | 59975 | 11995 | 21590 | 16790 | 345 |
GJT300 | 300 | 62420 | 12480 | 22470 | 17475 | 359 |
GJT306 | 306 | 64970 | 12990 | 23390 | 18190 | 374 |
GJT312 | 312 | 67520 | 13550 | 24305 | 18905 | 388 |
GJT318 | 318 | 70175 | 14035 | 25260 | 19645 | 403 |
GJT324 | 324 | 72825 | 14565 | 26215 | 20390 | 419 |
GJT330 | 330 | 75580 | 15115 | 27205 | 21160 | 435 |
GJT336 | 336 | 78335 | 15665 | 28200 | 21930 | 451 |
GJT342 | 342 | 81190 | 16235 | 29225 | 22730 | 467 |
GJT348 | 348 | 84045 | 16805 | 30255 | 23530 | 485 |
GJT354 | 354 | 87005 | 17400 | 31320 | 24360 | 500 |
GJT360 | 360 | 89960 | 17990 | 32385 | 25185 | 517 |
GJT366 | 366 | 93020 | 18600 | 33485 | 26045 | 535 |
GJT372 | 372 | 96080 | 19215 | 34590 | 26900 | 553 |
GJT378 | 378 | 99140 | 19825 | 35690 | 27760 | 571 |
GJT384 | 384 | 102000 | 20400 | 36720 | 28560 | 589 |
GJT390 | 390 | 105060 | 21010 | 37820 | 29415 | 607 |
GJT396 | 396 | 109140 | 21825 | 39290 | 30555 | 626 |
GJT402 | 402 | 112200 | 22440 | 40390 | 31415 | 645 |
GJT408 | 408 | 115260 | 23050 | 41490 | 32270 | 665 |
GJT414 | 414 | 119340 | 23865 | 42960 | 33415 | 684 |
GJT420 | 420 | 122400 | 24480 | 44060 | 34270 | 704 |
GJT426 | 426 | 125460 | 25090 | 45165 | 35125 | 724 |
GJT432 | 432 | 129540 | 25905 | 46630 | 36270 | 745 |
GJT438 | 438 | 133620 | 26720 | 48100 | 37410 | 766 |
GJT444 | 444 | 136680 | 27335 | 49200 | 38270 | 788 |
GJT450 | 450 | 140760 | 28150 | 50670 | 39410 | 809 |
GJT456 | 456 | 143820 | 28760 | 51775 | 40265 | 835 |
GJT462 | 462 | 147900 | 29580 | 53240 | 41410 | 851 |
GJT468 | 468 | 151980 | 30395 | 54710 | 42550 | 876 |
