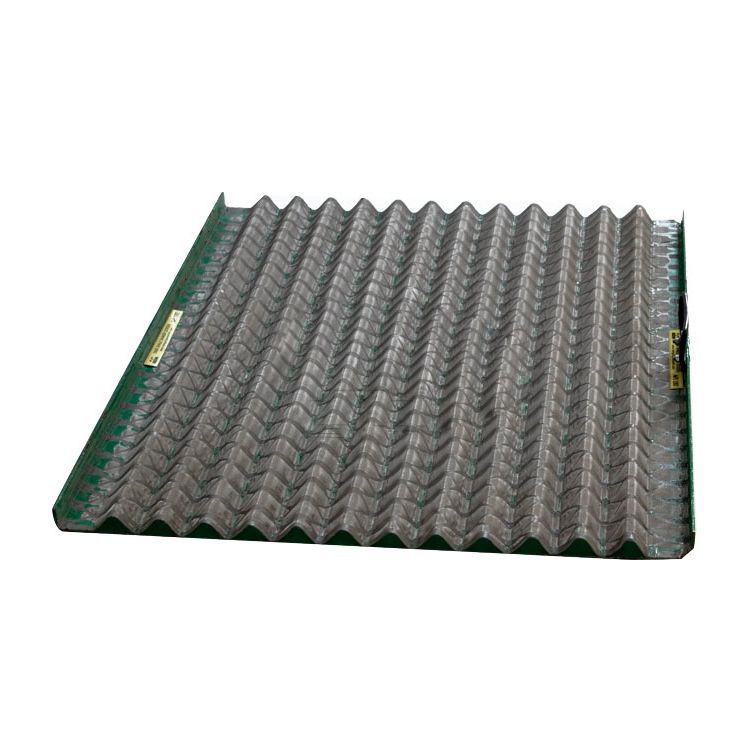

Shaker Screen for Replacement DRK 600
Our factory produces Shaker Screen for Replacement DRK 500 flat, DRK 500 wave, DRK 2000 flat, DRK 2000 wave and DRK 600.
| API RP 13C(ISO 13501) | |
| D100 Separation(Microns) | API Screen Number |
| >780.0 to 925.0 | API 20 |
| >655.0 to 780.0 | API 25 |
| >550.0 to 655.0 | API 30 |
| >462.5 to 550.0 | API 35 |
| >390.0 to 462.5 | API 40 |
| >327.5 to 390.0 | API 45 |
| >275.0 to 327.5 | API 50 |
| >231.0 to 275.0 | API 60 |
| >196.0 to 231.0 | API 70 |
| >165.0 to 196.0 | API 80 |
| >137.5 to 165.0 | API 100 |
| >116.5 to 137.5 | API 120 |
| > 98.0 to 116.5 | API 140 |
| > 82.5 to 98.0 | API 170 |
| > 69.0 to 82.5 | API 200 |
| > 58.0 to 69.0 | API 230 |
| > 49.0 to 58.0 | API 270 |
| > 41.5 to 49.0 | API 325 |
| Screen Model | Range of Mesh | Dimension (Width x Length) | Brand & Model of Shaker |
| HSB-1(WAVE ®) | 20-325 | 697×1053mm | FLC2000(PMD) Series |
| HSB-2((WAVE ®) | 20-325 | 695×1050mm | FLC500(PMD) Series |
| HSB-3(WAVE ®) | 20-325 | 710×626mm | FLC600 (PMD) Series |
| HSB-4(WAVE ®) | 20-325 | 567×1070mm | HYPERPOOL |
| HSP-1 | 20-325 | 697×1053mm | FLC2000(PWP) Series |
| HSP-2 | 20-325 | 695×1050mm | FLC500(PWP) Series |
| HSP-3 | 20-325 | 697× 846 mm | FLC313M |
| HSZ-1/1 | 20-325 | 585×1165mm | SWACO MONGOOSE PT＆PRO |
| HSZ-3 | 20-325 | 610×660mm | SWACO MD-2＆MD-3 |
| HSP-4 | 20-325 | 903×1155mm | SWACO BEM-3 |
| HSF-1 | 20-250 | 700×1050mm | SWACO DERRICK-FLC2000 |
| HSF-2 | 20-250 | 1212×1141mm | SWACO ALS-2 |
| HSZ-2/1 | 20-325 | 635×1250mm | BRANDT KING COBRA＆COBRA |
| HSK-2 | 20-325 | 635×1253mm | BRANDT KING COBRA |
| HSK-3 | 20-325 | 940*686mm | BRANDT VSM300 Pramary |
| HSK-4 | 20-325 | 889*686mm | BRANDT VSM300 scalping |
| HSK-5 | 20-325 | 712×1180mm | BRANDT D380 |
| HSK-4 | 20-325 | 720×1220mm | KTL48 SERIES |
| HSK-6 | 20-325 | 737*1067mm | FSI 50＆500＆5000 |
| HSP-6 | 20-325 | 915×1150mm | LCM-2D |
| HSP-7 | 20-325 | 700×1165mm | S250 |
