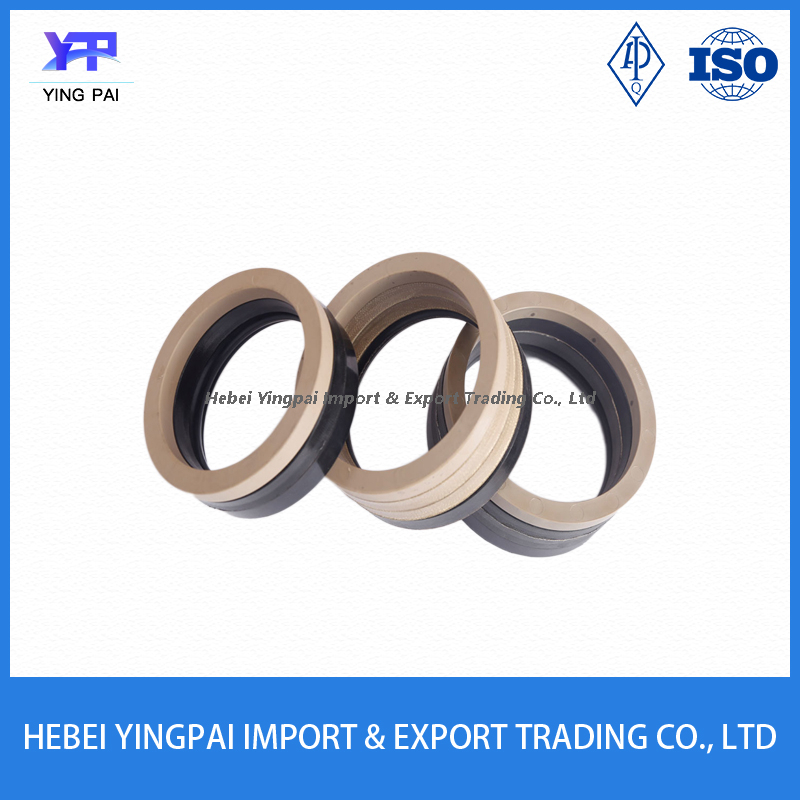

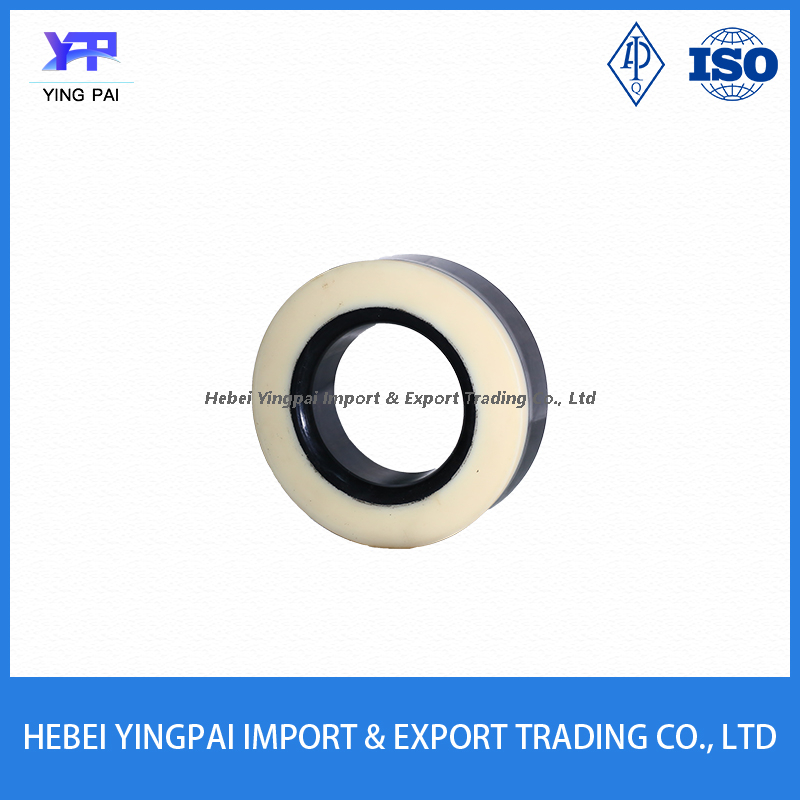

NBR/HNBR/PU Material Piston Rubber for Mud Pump

NBR/HNBR/PU Material Piston Rubber for Mud Pump

The piston rubber is made from specially formulated compounds which are resistant to the effects of heat,oil and water.
The multi-ply fabric reinforced backings used in the production of the piston rubbers provide positive,wear resistant seals.
High tensile strength, resistance to chemicals, hydrocarbic.

Model:
all
Brand:
hebei yingpai
Code:
841391000


SKU:
Availability:



Inquire PDF Export

Product Description

Product Description

The piston rubber is made from specially formulated compounds which are resistant to the effects of heat,oil and water.
The multi-ply fabric reinforced backings used in the production of the piston rubbers provide positive,wear resistant seals.
High tensile strength, resistance to chemicals, hydrocarbic.

Description	Temperature Range	Pump Pressure	Abrasion	Drilling Fluid
NBR	-40~100 °C	5000PSI(35Mpa)	Not Bad	Water base
	-40~210 °F
polyurethane	-40~85 °C	5000PSI(35Mpa)	Excellent	Water base & Oil base
	-40~185 °F
HNBR	-50~150 °C	7500PSI(52Mpa)	Good	Water base & Oil base
	-58~300 °F

We specialize in supplying high-quality mud pump equipment and mud pump parts.

The F series mud pumps can achieve the same manufacturing process and quality level as the F series mud pumps of EMSCO, IDECO, GARDNER DENVOR, OILWELL and other companies. At present, the F series mud pumps (from F-500 to F-2200) have been mass-produced and sold to major foreign oil fields. Customers are welcome to order.

We mainly export and produce mud pump parts, including cylinder liners, pistons, piston inserts, valve inserts, oil seals, rod packings, hydraulic ends, etc. All products meet or exceed DIN and API standards and have been exported to the UK, Germany, the US, Canada, Pakistan, the Middle East and other regions.

We also supply mud pump parts according to drawings or samples provided by customers.

Pump parts are available for the following Mud Pump
BOMCO	F-500	F-800	F-1000	F-1300	F-1600	F-1600HL	F-1600L	F-2200HL
HONG HUA	HHF-500	HHF-800	HHF-1300	HHF-1600	3NB-1600F	5NB-1600	5NB-2400
EMSCO	F-500	F-800	F-1000	F-1300	F-1600	FD-1000	FC-2200	FB-1300
GARDNER DENVER	PAH	P7	P8/9	P10/11	PXL	PX-11	PZL	PY-FXD
NATIONAL	7-P-50	8-P-80	9-P-100	10-P-130	12-P-160	14-P-200	14-P-220	N-1000/1300
OILWELL	A-850-PT	A-1100-PT	A-1700-PT
TSC	WF-500	WF-800	WF-1300	WF-1600	WF-2000	WF-2200
IDECO	T-500	T-800	T-1300	T-1600
NOTE	Due to variation of pump models, each owner is recommended to offer the PART NUMBER of the original pumps

Our company is a professional supplier of oil equipment, including drilling and workover rig spare parts, mud pumps, well control systems, drill strings, solids control equipment, operating tools, downhole tools, oil well pipes, drilling tools, cementing tools and spare parts, and in compliance with API certification. Our products are exported to Russia, the United States, the Middle East, South America, Southeast Asia, Central Asia, Africa, Australia, Europe and other regions. Our company is willing to sincerely cooperate with foreign friends and make common progress with first-class products, first-class services and reasonable prices.

piston rubber other parts mud pump parts mud pump oil field machine parts rubber NBR Rubber Rubber Piston

FAQ

Q YP Petro manufactures power end components including extension rods, crossheads, crosshead pins, cross pin baffles, upper and lower guide plates, packing boxes, seal rings, and oil seal lips. We also supply crankshaft assemblies, gear sets, and connecting rods for major mud pump models.

A
Yes. YP Petro accepts OEM/ODM orders based on customer drawings, technical specifications, or reverse-engineered samples. Our engineering team can confirm feasibility, recommend material upgrades, and provide quotations within 3-5 working days.
Q What power end parts does YP Petro manufacture?

A
YP Petro manufactures power end components including extension rods, crossheads, crosshead pins, cross pin baffles, upper and lower guide plates, packing boxes, seal rings, and oil seal lips. We also supply crankshaft assemblies, gear sets, and connecting rods for major mud pump models.
Q What other fluid end parts does YP Petro supply?

A
In addition to cylinder liners, YP Petro supplies a complete range of fluid end parts, including pistons, piston rubber, valve bodies, valve seats, valve rubber, liner seals, cylinder head gaskets, valve cover seals, piston rods, clamp assemblies, valve covers, cylinder heads, flange heads, cylinder flanges, cylinder covers, and inhalation capsules. We also supply dampener diaphragms, pressure gauges, fittings, relief valves, and exhaust valves.
Q What size range of cylinder liners does YP Petro offer?

A
YP Petro cylinder liners are available in metric sizes from 100mm to 180mm and imperial sizes from 3" to 7.5" (including 3", 3.5", 4", 4.5", 5", 5.5", 6", 6.25", 6.5", 6.75", 7", 7.25", 7.5"). Custom sizes are available on request.
Q What is the difference between bi-metal, ceramic, chrome-plated, and high-frequency quenching cylinder liners?

A
| Type | Inner Material | Hardness | Service Life | Best For |
| Bi-Metal | High-chromium cast iron | HRC 62 | 800h+ | General high-pressure, abrasive drilling |
| Ceramic | Al₂O₃ or Zirconia | HRC 80+ | 1500h+ | Extreme abrasion, high-sand formations |
| Chrome-Plated | Hard chrome coating | HRC 55 | 300-400h | Moderate conditions, budget operations |
| High-Frequency Quenching | Quenched alloy iron | HRC 50 | 200-300h | Light-duty, low-cost applications |
