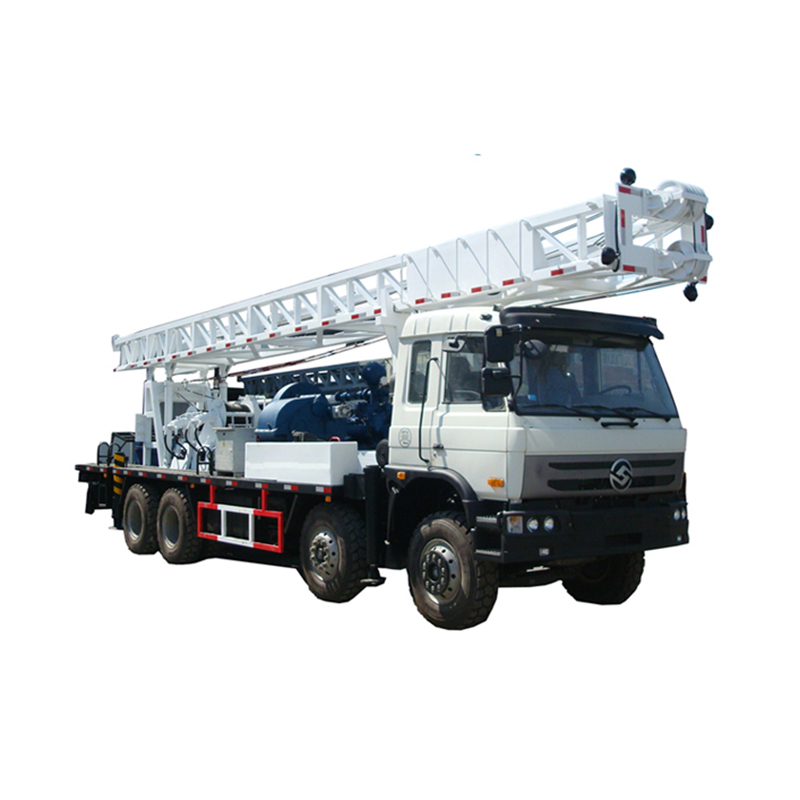

YMC-600 Truck Mounted Drilling Rig

YMC-600 Truck Mounted Drilling Rig is driven mechanically and hydraulically. The power system, winch, mast, traveling system and transmission mechanism of the truck mounted drilling rig are installed on the self-propelled chassis, which greatly improves the the efficiency of transportation.
Availability:
sharethis sharing button
  • Standard

  • hebei yingpai

  • 84139100

YMC-600 Truck Mounted Drilling Rig

The truck-mounted drilling rigs series from Yingpai Drilling Machinery can cover the drilling depth of 1000m-4000m and the maximum static load of 900kN-2250kN. Drilling operations for shallow and medium-deep wells. Additionally, rigs are available for arctic, desert and high altitude applications. Learn More

Features of YMC-600 Truck Mounted Drilling Rig

● YMC-600 truck mounted drilling rig is designed by our engineers. It is a kind of truck mounted and rotary drilling rig.

● The YMC-600 truck mounted drilling rig adopts the special crane chassis of brand CHANA TRUCK and the main drive system, the transfer case, gearbox, double-winch unit, mud pump, turntable, drilling tower, feed mechanism are set up on the chassis.

● This truck mounted drilling rig is a rotary drilling rig with directional circulation. It is equipped with 3NB-130 plunger pump which adopts the slurry as the washing fluid and can drill on clay, sand and rock if it is equipped with suitable drilling bit.
● The power of this YMC-600 truck mounted drilling rig comes from the truck engine; the rig has distribute implement and hydraulic system.
● We can install the spare electric engine and clutch implement according to client's requirement, so that the rig can work with diesel engine or electric engine.
● We set up a generator (MF) which is convenient to illuminate or work at night.
● There are pressure device on the rig so it is high efficiency when the rig drill on mud rock and on the weathering formation.
● The main drive of rig is mechanical and the four landing legs and drilling tower are hydraulic controlled. Transfer case and mud pump clutch system are air operated.
● According to client's requirement, this YMC-600 truck mounted drilling rig can carry out down-the-hole hammer drilling with USA Sullair, Japan PDSKIOOS, Sweden Atlas, China Kaishan, Hongwuhuang; can carry out air lifting reverse circulation drilling with air-water tap, double-wall drilling pipe, gas-water separator; can carry out Hydraulic DTH hammer drilling rock breaking with WB1200/12 mud pump; can carry out core-drilling with other special drilling tools.

● The appearance of rig is good-looking. It is high efficiency because of having a larger torque of the turntable and is mainly used for water well in industry and agriculture, national defense building foundation, geological exploration, geothermic well and other foundation working, it is popular at home and abroad.

Specification of  YMC-600 Truck Mounted Drilling Rig

Technical parameter
 Drilling depth(M)600
 Drilling diameter(mm)500
 Speed of turntable(r/min)117;102;60;38;22;13;16(reverse)
 Torque of turntable(KN.m)5.4----50
Single rope lifting capacity of main windlass(KN)50
Maximum lifting capacity of main windlass(KN)300
Single rope lifting capacity of assistant windlass(KN)60
Single rope lifting capacity of assistant windlass(KN)240
 The lifting capacity of hook(KN)300
 Bearing capacity of drilling tower (KN)300
 The height of drilling tower (mm)15500
Drill pipe Kelly bar(mm)108×108×10500
 Assistant pipe (mm).Ф89×10×9000
 3NB-130
plunger pump
 Diameter of cylinder (mm)140
 Stroke of piston (mm)160
Theoretical flow (L / min)1000
Rated pressure (Mpa)5
 Diameter of suction tube (mm)152
 Diameter of drain pipe (mm)65
 Input power (kw)95
 Truck chassis Drive form8×6

Engine
 ModelYC6A260-33YC water -cooled four strok diesel engine
 Rated power(KW)191
 Speed (r/min)2300
 Size (L*W*H)(mm)11510*2480*2800
Electric generatorModelMF
Rated power (kw)30
Rated voltage(v)380
Rated current(A)27
Speed (r/min)1500
Frequency(Hz)75
 The highest speed(Km/h)75
 Weight (kg)27500
 Transport size(L*W*H)(mm)15543×2480×4032
 Working size(L*W*H)(mm)11139×2480×16749


The engineers team from Yingpai Drilling Machinery thrives on working with drillers as they continue to innovate products and designs for truck mounted drilling rig. Our goal is to make your work faster, safer and more efficient. Contact us to partner with us and much reduce your drilling truck downtime!
