Products

Home » Products » Wellhead device » Christmas tree » Electric Submersible Pump Wellhead Christmas Tree

PRODUCT CATEGORY

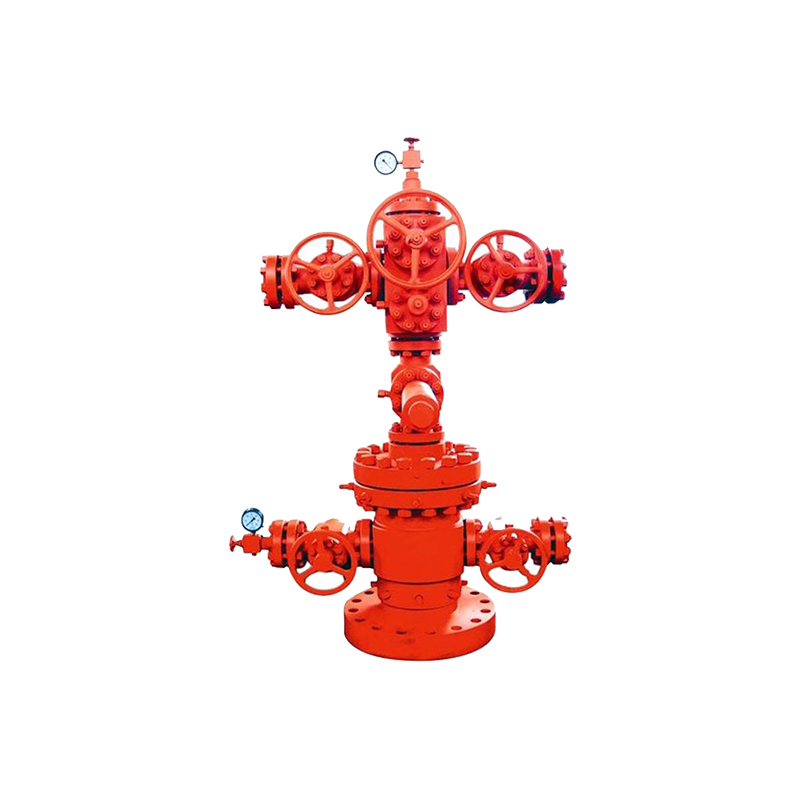

Electric Submersible Pump Wellhead Christmas Tree

Electric Submersible Pump Wellhead Christmas Tree

Model:
all
Brand:
hebei yingpai
Code:
84139100


SKU:
Availability:



Inquire PDF Export

Product Description

Product Description

Electric Submersible Pump Wellhead and X-mas Tree

Product Description

The electric submersible pump wellhead and X-mas tree was designed for ESP applications. has standardized penetrator options to fulfill all the operator's requirements. The tubing hanger and adapter flange are designed with cable holes or penetrator holes to let the cable pass through. Besides, can make built-to-suit penetration holes as per the client's requirement. The connection is an API 6A standard flange, making it easy to replace components should there be a need to, but the equipment has a long service life, having been built to the highest standards. It has an established reputation among our clientele.

Key Feature

1.API 6A standard flange connection.

2.Two types: Penetrator and Cable penetration.

3.Easy installation and removal.

4. Reliable sealing performance.

5.Long service life.

Specifications

Working pressure(psi)	2000psi~20000psi
Working temperature	-46~121ºC
Material class	BB, CC, DD, EE, FF
Production specification level	PSL2, PSL3, PSL3G, PSL4
Performance rate	PR1 PR2
Drift diameter(in)	2 9/16, 3 1/8

Wellhead Christmas Tree Wellhead Chistmas Tree For Oil And Gas Electric Pump Wellhead Christmas Tree drilling equipment Wellhead Equipment

FAQ

Q YP Petro manufactures power end components including extension rods, crossheads, crosshead pins, cross pin baffles, upper and lower guide plates, packing boxes, seal rings, and oil seal lips. We also supply crankshaft assemblies, gear sets, and connecting rods for major mud pump models.

A
Yes. YP Petro accepts OEM/ODM orders based on customer drawings, technical specifications, or reverse-engineered samples. Our engineering team can confirm feasibility, recommend material upgrades, and provide quotations within 3-5 working days.
Q What power end parts does YP Petro manufacture?

A
YP Petro manufactures power end components including extension rods, crossheads, crosshead pins, cross pin baffles, upper and lower guide plates, packing boxes, seal rings, and oil seal lips. We also supply crankshaft assemblies, gear sets, and connecting rods for major mud pump models.
Q What other fluid end parts does YP Petro supply?

A
In addition to cylinder liners, YP Petro supplies a complete range of fluid end parts, including pistons, piston rubber, valve bodies, valve seats, valve rubber, liner seals, cylinder head gaskets, valve cover seals, piston rods, clamp assemblies, valve covers, cylinder heads, flange heads, cylinder flanges, cylinder covers, and inhalation capsules. We also supply dampener diaphragms, pressure gauges, fittings, relief valves, and exhaust valves.
Q What size range of cylinder liners does YP Petro offer?

A
YP Petro cylinder liners are available in metric sizes from 100mm to 180mm and imperial sizes from 3" to 7.5" (including 3", 3.5", 4", 4.5", 5", 5.5", 6", 6.25", 6.5", 6.75", 7", 7.25", 7.5"). Custom sizes are available on request.
Q What is the difference between bi-metal, ceramic, chrome-plated, and high-frequency quenching cylinder liners?

A
| Type | Inner Material | Hardness | Service Life | Best For |
| Bi-Metal | High-chromium cast iron | HRC 62 | 800h+ | General high-pressure, abrasive drilling |
| Ceramic | Al₂O₃ or Zirconia | HRC 80+ | 1500h+ | Extreme abrasion, high-sand formations |
| Chrome-Plated | Hard chrome coating | HRC 55 | 300-400h | Moderate conditions, budget operations |
| High-Frequency Quenching | Quenched alloy iron | HRC 50 | 200-300h | Light-duty, low-cost applications |
