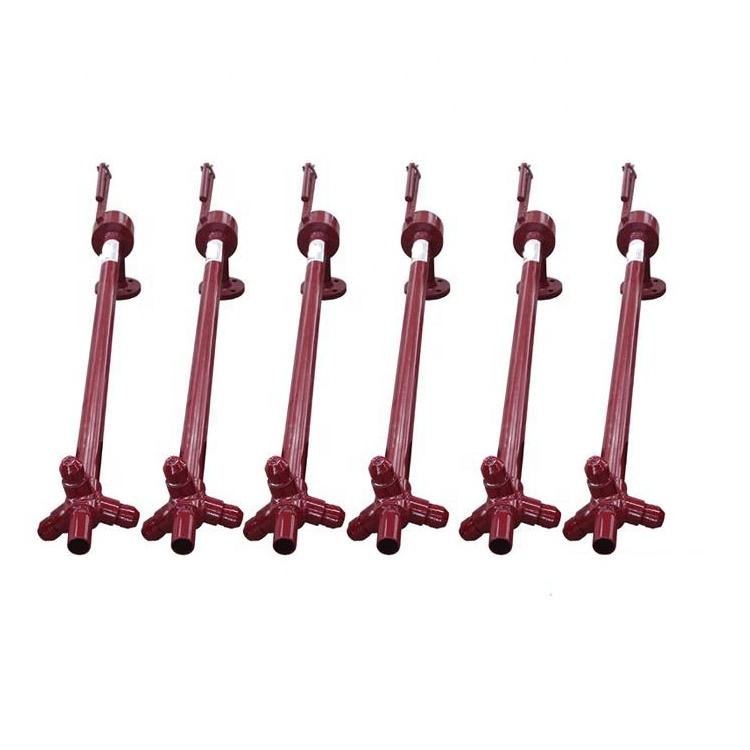

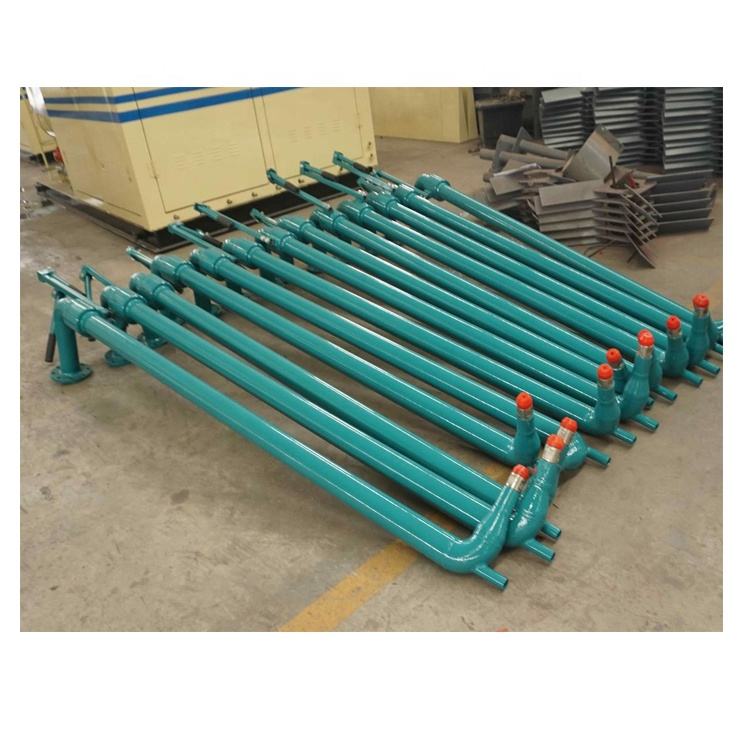

Our mud gun is a bottom type mud gun, the Mud guns are meant to provide supplemental or primary mixing in mud tanks depending on the number being used and the pit size. They are best used in tank corners to keep solids from settling and a mud agitator is placed in the tank center.

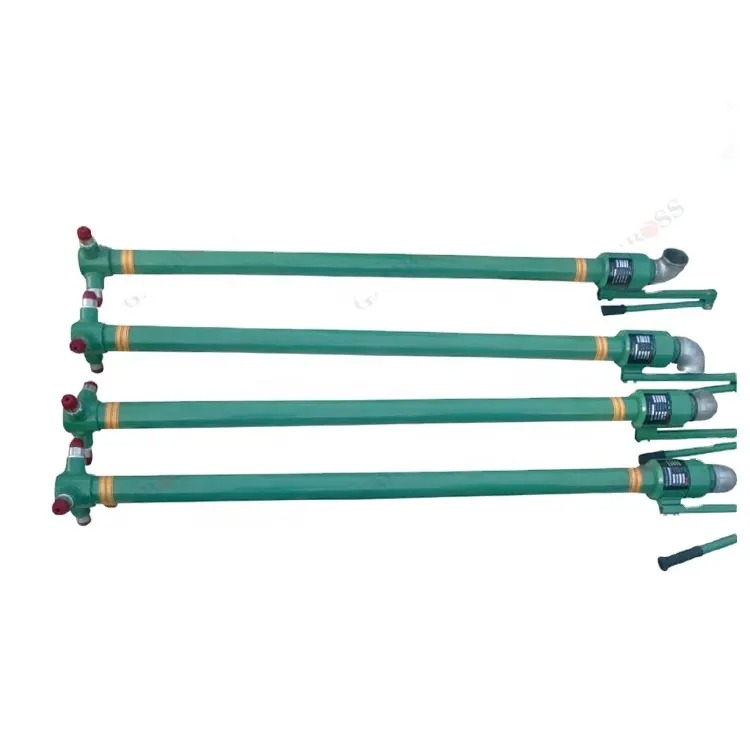

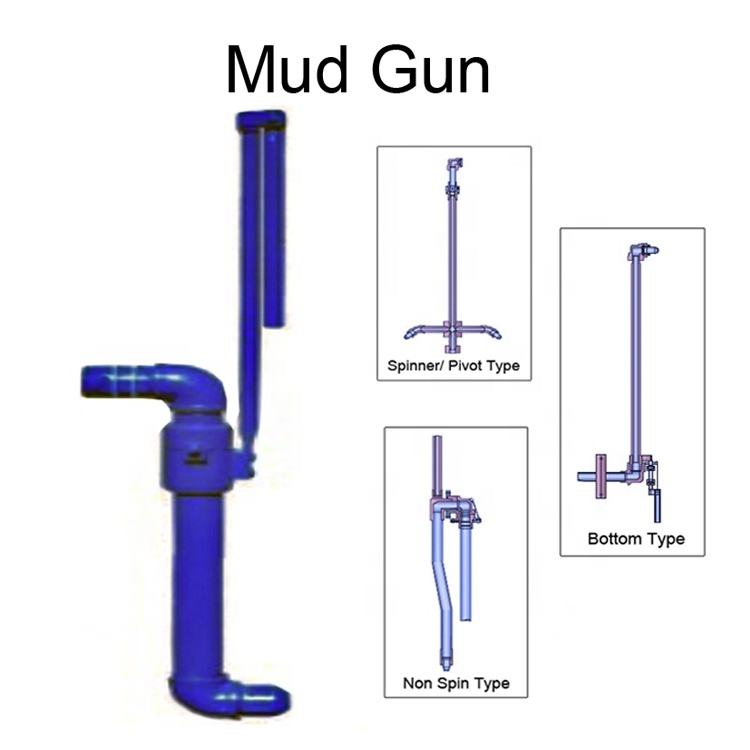

The number of mud gun depends on the size of tank. Usually mud gun installed with mud line of mud tank. According the inlet pipe size, there are 2’ mud gun and 3’ mud gun for option. According to different structure feature, there are two types of mud gun: fixed mud gun , and rotary mud gun.
| Model | LKNJQ50-3GA | LKNJQ50-3XA | LKNJQ80-3GA | LKNJQ80-3XA |
| Working Pressure | ≤6.4 Mpa | |||
| Rotation Degree | 0° | 360° | 0° | 360° |
| Nozzle Qty | 3 | |||
| Gun Diameter | 2 Inch | 3 Inch | ||
| Connection Size | G2'' | G2'' | G3'' | G3'' |

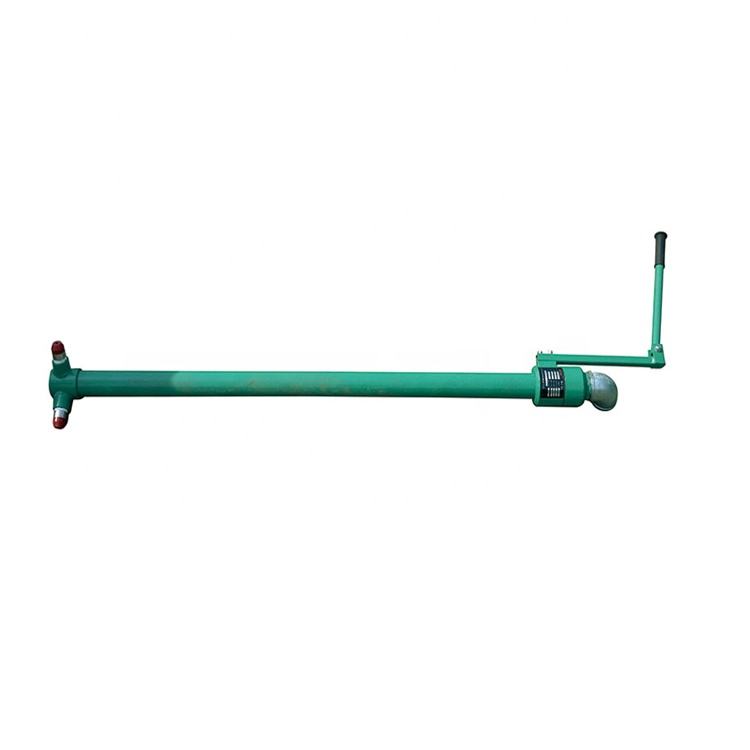

The mud gun in the mud system can also be used for transfer mud from compartment to compartment, like for trip tank compartment. Our company guns are available for rotation adjustment to allow the operator to optimize the mud guns performance. The replaceable wear resistant jet nozzle is used, which is special design with better shearing.
