API Oillfield Equipment Drill Pipe Kelly Spinners Type 6800

API Oillfield Equipment Drill Pipe Kelly Spinners Type 6800

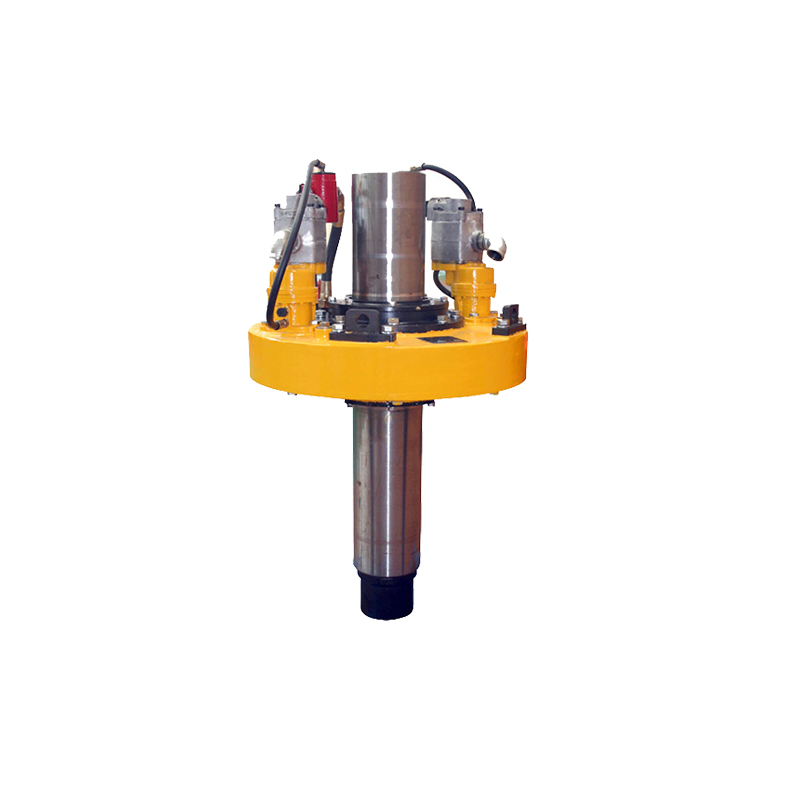

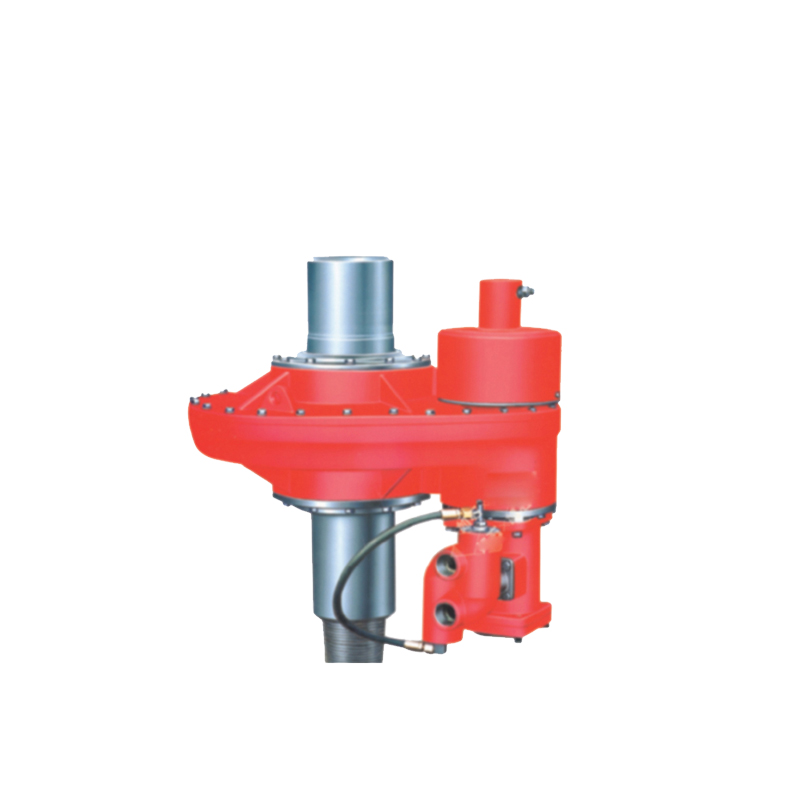

Kelly spinner is a special equipment to connect single pipe by matching with mouse hole clamping device. It unitizes air or hydraulic motor to drive kelly to rotate, And is has the features of security, timr- saving time and high efficiency. It is designed and manufactured according to API Spec 8C "Specification For Drilling and Production Hoisting Equipment".

Model:
all
Brand:
Xinhuafa
Code:
84139100


SKU:
Availability:



Inquire PDF Export

Product Description

Product Description

API Oillfield Equipment Drill Pipe Kelly Spinners Type 6800

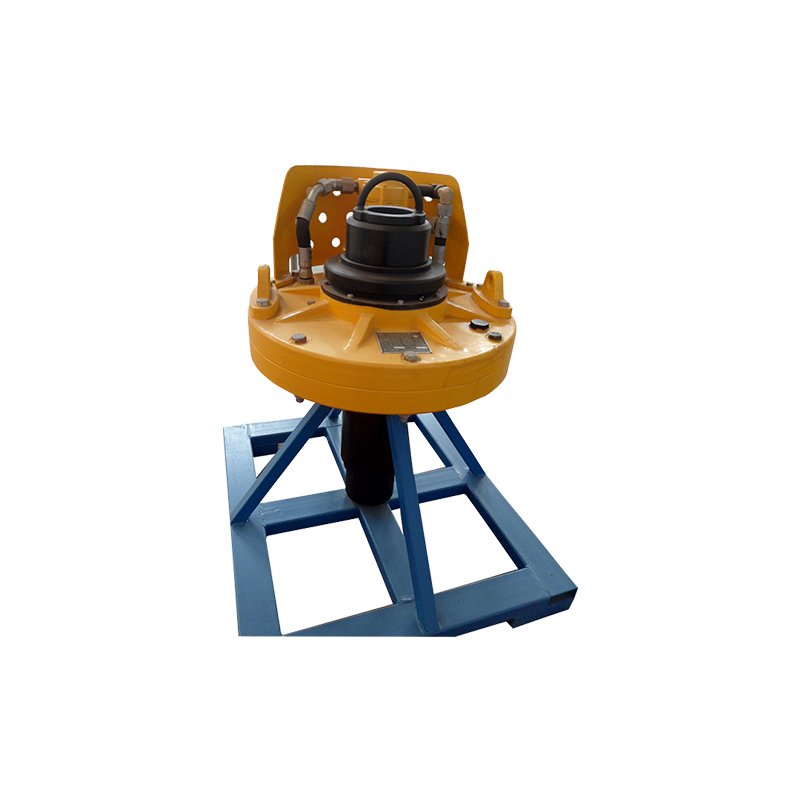

H08d0bc5eb2db40cc9dce4578c071d358r

Kelly spinner is a special equipment to connect single pipe by matching with mouse hole clamping device. It unitizes air or hydraulic motor to drive kelly to rotate, And is has the features of security, timr- saving time and high efficiency. It is designed and manufactured according to API Spec 8C "Specification For Drilling and Production Hoisting Equipment".

Model		A6C	6600	6800
Item Specifications		A6C	6600	6800
Drivel mode		Pneumatic		Hydraulic
Max. static load		2250kN
Pressure	MPa	0.5-0.9	0.5-0.9	16
Pressure	Psi	72-130	72-130	2320
Brake torque	Nm	1500	1500	1650
Brake torque	ft.lbf	1100	1100	1215
Idle speed	rpm	130	130	120
Rotating direction		double direction
Air consumption/flow		18.6m3/min	15 m3/min	91L/min
Air consumption/flow		656 ft3/min	529 ft3/min	24 gpm
Stem connection		6-5/8 REG LH
Size	mm	7607601225	740710978	740710978
Size	in	303048	292838.5	292838.5
Weight	kg	540	500	504
Weight	lb	1190	1100	1110
