API 7K Kt24500 Hydraulic Casing Power Tong Teda Brand for The Pipe Size 9 5 / 8 -24 1 / 2 Catch Big Size

Availability:
sharethis sharing button

PRODUCT SPECIFICATION

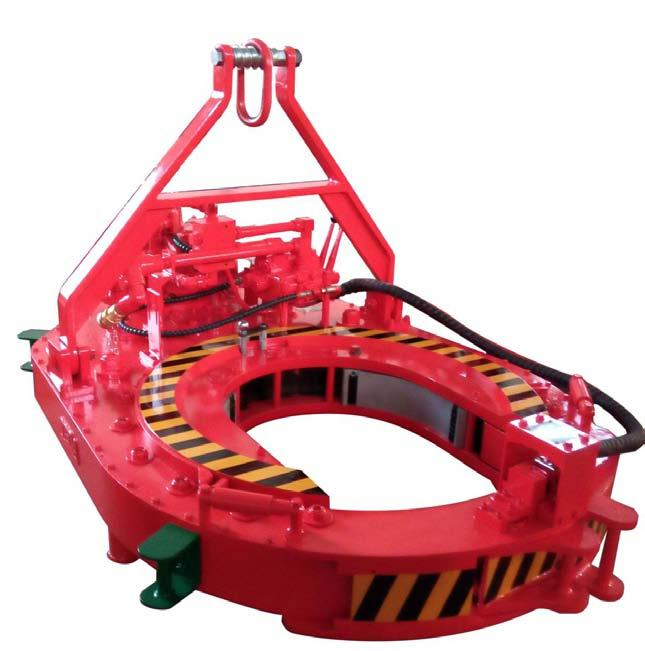

KT24500 Casing Power Tong is used to make up and break out for casing operation in oil fields. It has
greatly reduced the labor of worker, enhanced connection quality of thread and diminished accidents in
inappropriate casing operation. The power tong has the following features as well:
1.Opening type, convenient and prompt to enter and slide off the working position, with an integral tong
head of great strength and rigidity.
2. Double swing head jaws, convenient to assemble and disassemble.
3.Brake belt assembly, easy to operate and convenient to maintain and replace.
4. Open gear supporting structure, improving the strength and rigidity.
5.Wholly hydraulic mode and mechanical gear shift.
6.High strength steel plate used on the shell,increasing the strength. The jaws are cast with precise
technology, artistic and strong.
7. With hydraulic torque indicator and also installation interface, convenient to realize the computer
management.
8. U se safety door hydraulic safety device,of great safety performance.
9.Large torque range,can meet the requirement of larger torque use.



 2. Specifications



Model
KT24500
Range of Master Tong
Φ245-622
95/8"- 241/2"
Range of Backup Tong
---------
High Gear Rated Torque
12000 N.m
8800 ft-lbs
Low Gear Rated Torque
70000 N.m
50000 ft-lbs
High Gear Rated Speed
30 RPM
Low Gear Rated Speed
5.5 RPM
Rated Operation Pressure
16 MPa
2320 psi
Max. Flow
187.5 LPM
50 GPM
Master Tong's Dimension :L x W x H
2120 x 1350 x 800
83.5"x53.2"x31.5"
Master Tong's Weight
1800 kg
3970 lbs
