Specifications
Rated Horsepower: 1,600 HP
Rated Pump Speed: 120 SPM
Maximum Liner Size by Stroke Length: 7" x 12"
Suction Connection: 12"
Discharge Connection: 5-1/8" 5,000 psi Flange
Gear Ratio: 4.206:1
Valve Pot: API #7
Approximate Weight: 54,655 lbs

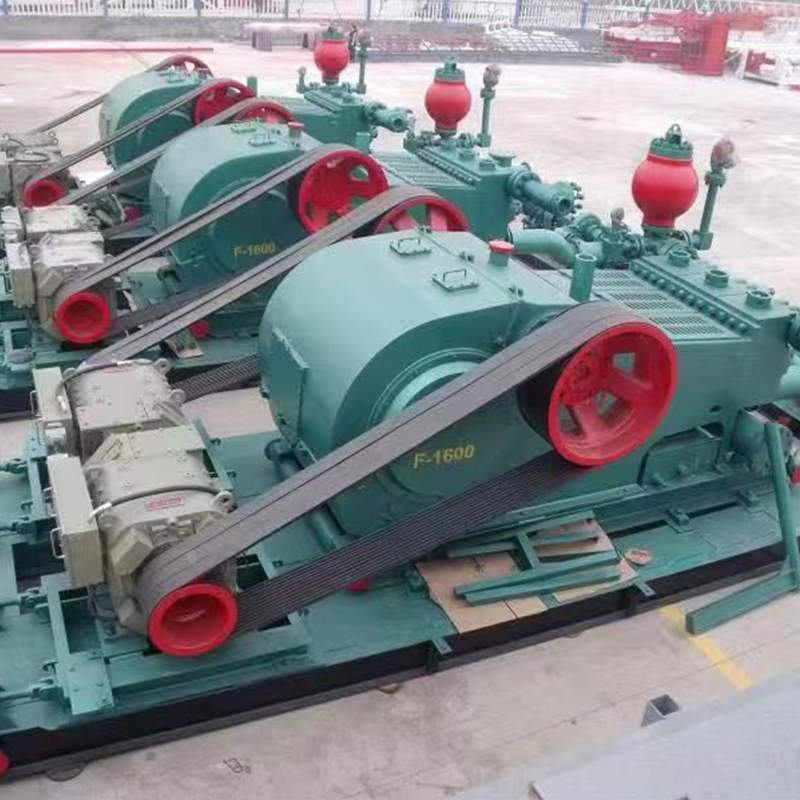

F-1600 Triplex Mud Pumps (API-7K)
SKU: | |
---|---|
Availability: | |
PDF Export | |
Product Description
We specialize in supplying high-quality mud pump equipment and mud pump parts.
The F series mud pumps can achieve the same manufacturing process and quality level as the F series mud pumps of EMSCO, IDECO, GARDNER DENVOR, OILWELL and other companies. At present, the F series mud pumps (from F-500 to F-2200) have been mass-produced and sold to major foreign oil fields. Customers are welcome to order.
We mainly export and produce mud pump parts, including cylinder liners, pistons, piston inserts, valve inserts, oil seals, rod packings, hydraulic ends, etc. All products meet or exceed DIN and API standards and have been exported to the UK, Germany, the US, Canada, Pakistan, the Middle East and other regions.
We also supply mud pump parts according to drawings or samples provided by customers.
Liner Size, inches | 7 | 6-3/4 | 6-1/2 | 6 | 5-1/2 | 5 | |
Rated Pressure, psi | 3,430 | 3,690 | 3,978 | 4,668 | 5,000 | 5,000 | |
Pump Speed SPM | Input Power HP | Displacement, GPM | |||||
120 | 1,600 | 720 | 669 | 621 | 529 | 444 | 367 |
110 | 1,467 | 660 | 613 | 569 | 485 | 407 | 337 |
100 | 1,334 | 600 | 558 | 517 | 441 | 370 | 306 |
90 | 1,200 | 540 | 502 | 465 | 397 | 333 | 275 |
80 | 1,067 | 480 | 446 | 414 | 353 | 296 | 245 |
70 | 933 | 420 | 390 | 362 | 308 | 259 | 214 |
Volume/Stroke, gallons | 6.00 | 5.58 | 5.17 | 4.41 | 3.70 | 3.06 |
Pump parts are available for the following Mud Pump | ||||||||
BOMCO | F-500 | F-800 | F-1000 | F-1300 | F-1600 | F-1600HL | F-1600L | F-2200HL |
HONG HUA | HHF-500 | HHF-800 | HHF-1300 | HHF-1600 | 3NB-1600F | 5NB-1600 | 5NB-2400 | |
EMSCO | F-500 | F-800 | F-1000 | F-1300 | F-1600 | FD-1000 | FC-2200 | FB-1300 |
GARDNER DENVER | PAH | P7 | P8/9 | P10/11 | PXL | PX-11 | PZL | PY-FXD |
NATIONAL | 7-P-50 | 8-P-80 | 9-P-100 | 10-P-130 | 12-P-160 | 14-P-200 | 14-P-220 | N-1000/1300 |
OILWELL | A-850-PT | A-1100-PT | A-1700-PT | |||||
TSC | WF-500 | WF-800 | WF-1300 | WF-1600 | WF-2000 | WF-2200 | ||
IDECO | T-500 | T-800 | T-1300 | T-1600 | ||||
NOTE | Due to variation of pump models, each owner is recommended to offer the PART NUMBER of the original pumps |
