Home » Products » Pump » Centrifugal Pump » Double-Suction Axially Split Casing Centrifugal Pump

PRODUCT CATEGORY

Double-Suction Axially Split Casing Centrifugal Pump

Double-Suction Axially Split Casing Centrifugal Pump

Model:
Standard
Brand:
Hebei yingpai
Code:
84139100


SKU:
Availability:



Inquire PDF Export

Product Description

Product Description

Double-Suction Axially Split Casing Centrifugal Pump

Characteristics of Double-Suction Axially Split Casing Centrifugal Pump

● Axially split, horizontal pump
● Foot mounted
● Suction and discharge ends are located at the lower half of pump
● Double suction closed impeller
● Type code of API610 BB1

Performance of Double-Suction Axially Split Casing Centrifugal Pump

● Capacity Q: 150~10000 m³/h
● Head H: 10~200 m
● Pressure P: 0.4~6.4 MPa
● Temperature T: -20 ~ +160 ºC

Features of Double-Suction Axially Split Casing Centrifugal Pump

● Process design per APl610 Standard
● Axial thrust eliminated by means of double suction impeller
● Renewable wear rings for casing and impeller
● Oil lubricated roller bearings
● The sense of rotation, viewed from drive end of the pump, can be clockwise or counter-clockwise
● Pump can be driven from either side
● Materials is per API610

Applications of Double-Suction Axially Split Casing Centrifugal Pump

● Water supply and treatment
● Irrigation and waste water
● Pulp and paper industries.
● Marine and cooling water process
● Desalination
● Pipeline pressurization
● General process engineering
● Used as turbine for power recycle

Main part materials

Part	Material
Pump casing	Grey cast iron (HT250) Ductile iron (QT400-18) Cast steel (ZG230-450) Stainless steel (ZG1Cr18Ni9Ti)
Impeller	Bronze (ZCuSn10Pb1) Grey cast iron (HT250) Ductile iron (QT400-18) Silicon brass (ZCuZn16Si4) Stainless steel (ZG1Cr18Ni9Ti)
Shaft	Carbon steel (45#) Stainless steel (ZG1Cr18Ni9Ti)
Seal-ring on pump casing	Bronze (ZCuSn10Pb1) Grey cast iron (HT250) Silicon brass (ZCuZn16Si4) Stainless steel (ZG1Cr18Ni9Ti)

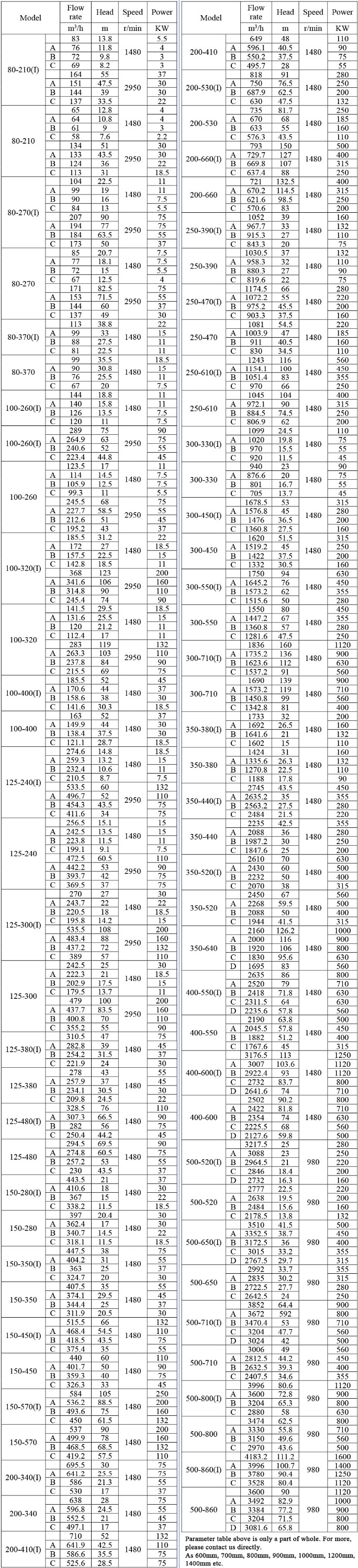

Performance Data

Double-Suction Axially Split Casing Centrifugal Pump

Discover the power of our Double-Suction Axially Split Casing Centrifugal Pumps, expertly manufactured and supplied by Yingpai Machinery. With unparalleled efficiency and reliable performance, our pumps are designed to handle high flow rates and provide easy maintenance. Trust in our expertise as the leading manufacturer and supplier in the industry. Contact us for more details.

Double-Suction Axially Split Casing Pump Vertical Centrifugal Pump centrifugal pump Axially Split Casing Pump Centrifugal chemical Pump

FAQ

Q YP Petro manufactures power end components including extension rods, crossheads, crosshead pins, cross pin baffles, upper and lower guide plates, packing boxes, seal rings, and oil seal lips. We also supply crankshaft assemblies, gear sets, and connecting rods for major mud pump models.

A
Yes. YP Petro accepts OEM/ODM orders based on customer drawings, technical specifications, or reverse-engineered samples. Our engineering team can confirm feasibility, recommend material upgrades, and provide quotations within 3-5 working days.
Q What power end parts does YP Petro manufacture?

A
YP Petro manufactures power end components including extension rods, crossheads, crosshead pins, cross pin baffles, upper and lower guide plates, packing boxes, seal rings, and oil seal lips. We also supply crankshaft assemblies, gear sets, and connecting rods for major mud pump models.
Q What other fluid end parts does YP Petro supply?

A
In addition to cylinder liners, YP Petro supplies a complete range of fluid end parts, including pistons, piston rubber, valve bodies, valve seats, valve rubber, liner seals, cylinder head gaskets, valve cover seals, piston rods, clamp assemblies, valve covers, cylinder heads, flange heads, cylinder flanges, cylinder covers, and inhalation capsules. We also supply dampener diaphragms, pressure gauges, fittings, relief valves, and exhaust valves.
Q What size range of cylinder liners does YP Petro offer?

A
YP Petro cylinder liners are available in metric sizes from 100mm to 180mm and imperial sizes from 3" to 7.5" (including 3", 3.5", 4", 4.5", 5", 5.5", 6", 6.25", 6.5", 6.75", 7", 7.25", 7.5"). Custom sizes are available on request.
Q What is the difference between bi-metal, ceramic, chrome-plated, and high-frequency quenching cylinder liners?

A
| Type | Inner Material | Hardness | Service Life | Best For |
| Bi-Metal | High-chromium cast iron | HRC 62 | 800h+ | General high-pressure, abrasive drilling |
| Ceramic | Al₂O₃ or Zirconia | HRC 80+ | 1500h+ | Extreme abrasion, high-sand formations |
| Chrome-Plated | Hard chrome coating | HRC 55 | 300-400h | Moderate conditions, budget operations |
| High-Frequency Quenching | Quenched alloy iron | HRC 50 | 200-300h | Light-duty, low-cost applications |
