Products

Home » Products » Drilling Rig Mud Circulation System » Solid Control Equipment » Shale Shaker Screen » Vibrating screen mesh

PRODUCT CATEGORY

Vibrating screen mesh

Wave Screen has large effective area, and drilling fluid is handle in high-efficiency by using it.


SKU:
Availability:



Inquire PDF Export

Product Description

Product Description

PRODUCT FEATURES

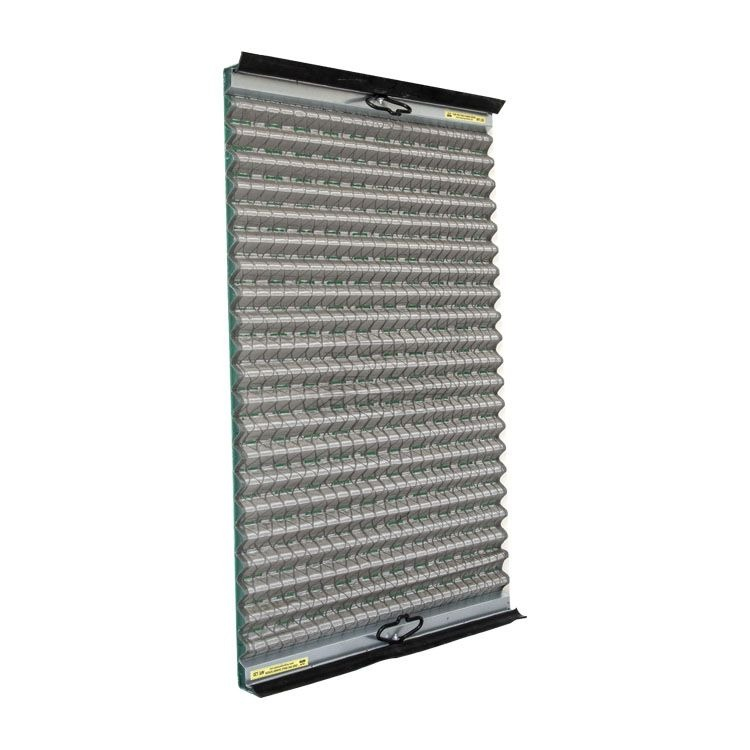

Wave® Screen for DRK 500

The feature of Wave Screen:

1. Wave Screen has large effective area, and drilling fluid is handle in high-efficiency by using it.

2. Every wire close in the sieving screen has different meshes,and accurate collocation can make the screen has better effect.

3. Stainless steel wire cloth is wave,and closely holds to metal support plank together.The effective area is up to 125% to 150% of the flat screen with the same specification,so as to improve of handling capacity.

Our factory can produce various specifications wave screen according to customer demand.

We produce premium and economy replacement screens for industry’s most popular shaker brands as follow：

Screen Model	Range of Mesh	Dimension(widthx Length)	Brand & Model of Shaker
HSB-1(WAVE)	20-325	697×1053mm	D2000
HSB-2(WAVE)	20-325	695×1050mm	D500Series
HSB-3(WAVE)	20-325	710×626mm	D600Series
HSB-4(WAVE)	20-325	567×1070mm	D-HYP

API RP 13C(ISO 13501)
D100 Separation(Microns)	API Screen Number
>780.0 to 925.0	API 20
>655.0 to 780.0	API 25
>550.0 to 655.0	API 30
>462.5 to 550.0	API 35
>390.0 to 462.5	API 40
>327.5 to 390.0	API 45
>275.0 to 327.5	API 50
>231.0 to 275.0	API 60
>196.0 to 231.0	API 70
>165.0 to 196.0	API 80
>137.5 to 165.0	API 100
>116.5 to 137.5	API 120
> 98.0 to 116.5	API 140
> 82.5 to 98.0	API 170
> 69.0 to 82.5	API 200
> 58.0 to 69.0	API 230
> 49.0 to 58.0	API 270
> 41.5 to 49.0	API 325

Wave® Screen for DRK 500 Screen for DRK 500 DRK 500

FAQ

Q YP Petro manufactures power end components including extension rods, crossheads, crosshead pins, cross pin baffles, upper and lower guide plates, packing boxes, seal rings, and oil seal lips. We also supply crankshaft assemblies, gear sets, and connecting rods for major mud pump models.

A
Yes. YP Petro accepts OEM/ODM orders based on customer drawings, technical specifications, or reverse-engineered samples. Our engineering team can confirm feasibility, recommend material upgrades, and provide quotations within 3-5 working days.
Q What power end parts does YP Petro manufacture?

A
YP Petro manufactures power end components including extension rods, crossheads, crosshead pins, cross pin baffles, upper and lower guide plates, packing boxes, seal rings, and oil seal lips. We also supply crankshaft assemblies, gear sets, and connecting rods for major mud pump models.
Q What other fluid end parts does YP Petro supply?

A
In addition to cylinder liners, YP Petro supplies a complete range of fluid end parts, including pistons, piston rubber, valve bodies, valve seats, valve rubber, liner seals, cylinder head gaskets, valve cover seals, piston rods, clamp assemblies, valve covers, cylinder heads, flange heads, cylinder flanges, cylinder covers, and inhalation capsules. We also supply dampener diaphragms, pressure gauges, fittings, relief valves, and exhaust valves.
Q What size range of cylinder liners does YP Petro offer?

A
YP Petro cylinder liners are available in metric sizes from 100mm to 180mm and imperial sizes from 3" to 7.5" (including 3", 3.5", 4", 4.5", 5", 5.5", 6", 6.25", 6.5", 6.75", 7", 7.25", 7.5"). Custom sizes are available on request.
Q What is the difference between bi-metal, ceramic, chrome-plated, and high-frequency quenching cylinder liners?

A
| Type | Inner Material | Hardness | Service Life | Best For |
| Bi-Metal | High-chromium cast iron | HRC 62 | 800h+ | General high-pressure, abrasive drilling |
| Ceramic | Al₂O₃ or Zirconia | HRC 80+ | 1500h+ | Extreme abrasion, high-sand formations |
| Chrome-Plated | Hard chrome coating | HRC 55 | 300-400h | Moderate conditions, budget operations |
| High-Frequency Quenching | Quenched alloy iron | HRC 50 | 200-300h | Light-duty, low-cost applications |
