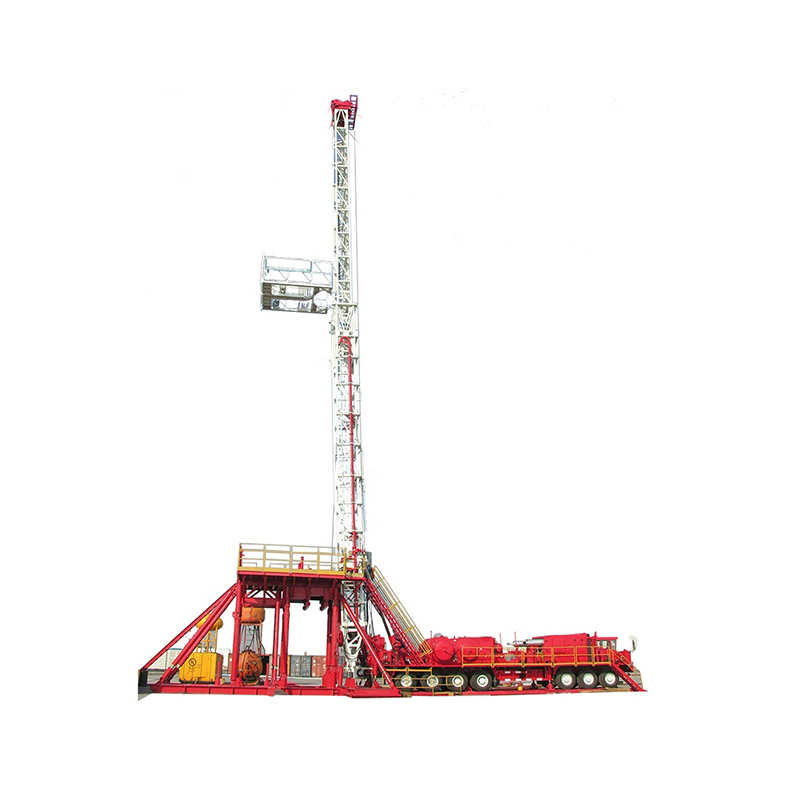

High quality cost-effective diesel drilling onshore large load workover rig

High quality cost-effective diesel drilling onshore large load workover rig

Model:
all
Brand:
hebei yingpai
Code:
84139100


SKU:
Availability:



Inquire PDF Export

Product Description

Product Description

Drilling onshore large load workover rig

Feature:

The rig structure is compact and well designed, highly integrated, and optimized to save working space. The power system is a hydraulic+ mechanical type with high comprehensive efficiency. A class II or self-propelled type chassis can be adopted to meet the various requirements of the end-users. The mast is front-open type, with a single section or double-section structure, hydraulic raising and hydraulic telescoping, or mechanical telescoping. Band brake or hydraulic disc brake can be applied as the main brake of the drawworks. The water cooling thrust plate pneumatic brake or water brake can be used as an auxiliary brake. The drill floor is a twin-body telescopic type or a parallelogram structure, both of which are convenient for installation and transportation. The dimension and height of the drill floor can be designed according to the end-user's requirements.

Model	XJ900Z	XJ1100Z	XJ1350Z	XJ1600Z	XJ1800Z	XJ2250Z
Max hook load (kN)	900	1100	1350	1600	1800	2250
Rated hook load (kN)	600	800	1000	1200	1500	1800
Nominal Workover depth (73 mm) m	3200	4500	5800	7000	8000	9000
Engine Power (kW)	261	403	403	470	403×2	470×2
Lines	6	8	8	8, 10	8, 10	10
Wireline dia (mm)	26	26	26	32	32	32
Mast Height (m)	29, 31	33	33, 35	33, 36	36, 38	36, 38
Max hood speed (m/s)	1.5	1.5	1.5	1.5	1.5	1.5
Substructure height (m)	4	4.5, 5, 6	4.5, 5, 6	4.5, 5, 6	6, 7, 7.5	6, 7, 7.5
RT hole dia. (mm)	444.5	444.5	444.5, 520.7	444.5, 520.7	698.5	698.5
Main brake	band brake	band and disc brake	band and disc brake	band and disc brake	band and disc brake	disc brake
auxiliary brake	224WCB	224WCB	224WCB	224WCB	324WCB	236WCB, dynamic braking
carrier model	XD40/8×6	XD50/10×8	XD50/10×8	XD60/12×8	XD70/14×8	XD70/14×8
Min ground clearance (mm)	311	311	311	311	311	311
Min diameter of turning circle (m)	28	30	38	38	41	41
emission standard	V	V	V	V	V	V

Onshore Large Load Workover Rig Large Load Workover Rig Diesel Drilling Rig Rotary Drilling Rig drilling machine drilling rig machine Workover Rig

FAQ

Q YP Petro manufactures power end components including extension rods, crossheads, crosshead pins, cross pin baffles, upper and lower guide plates, packing boxes, seal rings, and oil seal lips. We also supply crankshaft assemblies, gear sets, and connecting rods for major mud pump models.

A
Yes. YP Petro accepts OEM/ODM orders based on customer drawings, technical specifications, or reverse-engineered samples. Our engineering team can confirm feasibility, recommend material upgrades, and provide quotations within 3-5 working days.
Q What power end parts does YP Petro manufacture?

A
YP Petro manufactures power end components including extension rods, crossheads, crosshead pins, cross pin baffles, upper and lower guide plates, packing boxes, seal rings, and oil seal lips. We also supply crankshaft assemblies, gear sets, and connecting rods for major mud pump models.
Q What other fluid end parts does YP Petro supply?

A
In addition to cylinder liners, YP Petro supplies a complete range of fluid end parts, including pistons, piston rubber, valve bodies, valve seats, valve rubber, liner seals, cylinder head gaskets, valve cover seals, piston rods, clamp assemblies, valve covers, cylinder heads, flange heads, cylinder flanges, cylinder covers, and inhalation capsules. We also supply dampener diaphragms, pressure gauges, fittings, relief valves, and exhaust valves.
Q What size range of cylinder liners does YP Petro offer?

A
YP Petro cylinder liners are available in metric sizes from 100mm to 180mm and imperial sizes from 3" to 7.5" (including 3", 3.5", 4", 4.5", 5", 5.5", 6", 6.25", 6.5", 6.75", 7", 7.25", 7.5"). Custom sizes are available on request.
Q What is the difference between bi-metal, ceramic, chrome-plated, and high-frequency quenching cylinder liners?

A
| Type | Inner Material | Hardness | Service Life | Best For |
| Bi-Metal | High-chromium cast iron | HRC 62 | 800h+ | General high-pressure, abrasive drilling |
| Ceramic | Al₂O₃ or Zirconia | HRC 80+ | 1500h+ | Extreme abrasion, high-sand formations |
| Chrome-Plated | Hard chrome coating | HRC 55 | 300-400h | Moderate conditions, budget operations |
| High-Frequency Quenching | Quenched alloy iron | HRC 50 | 200-300h | Light-duty, low-cost applications |
