Product Description

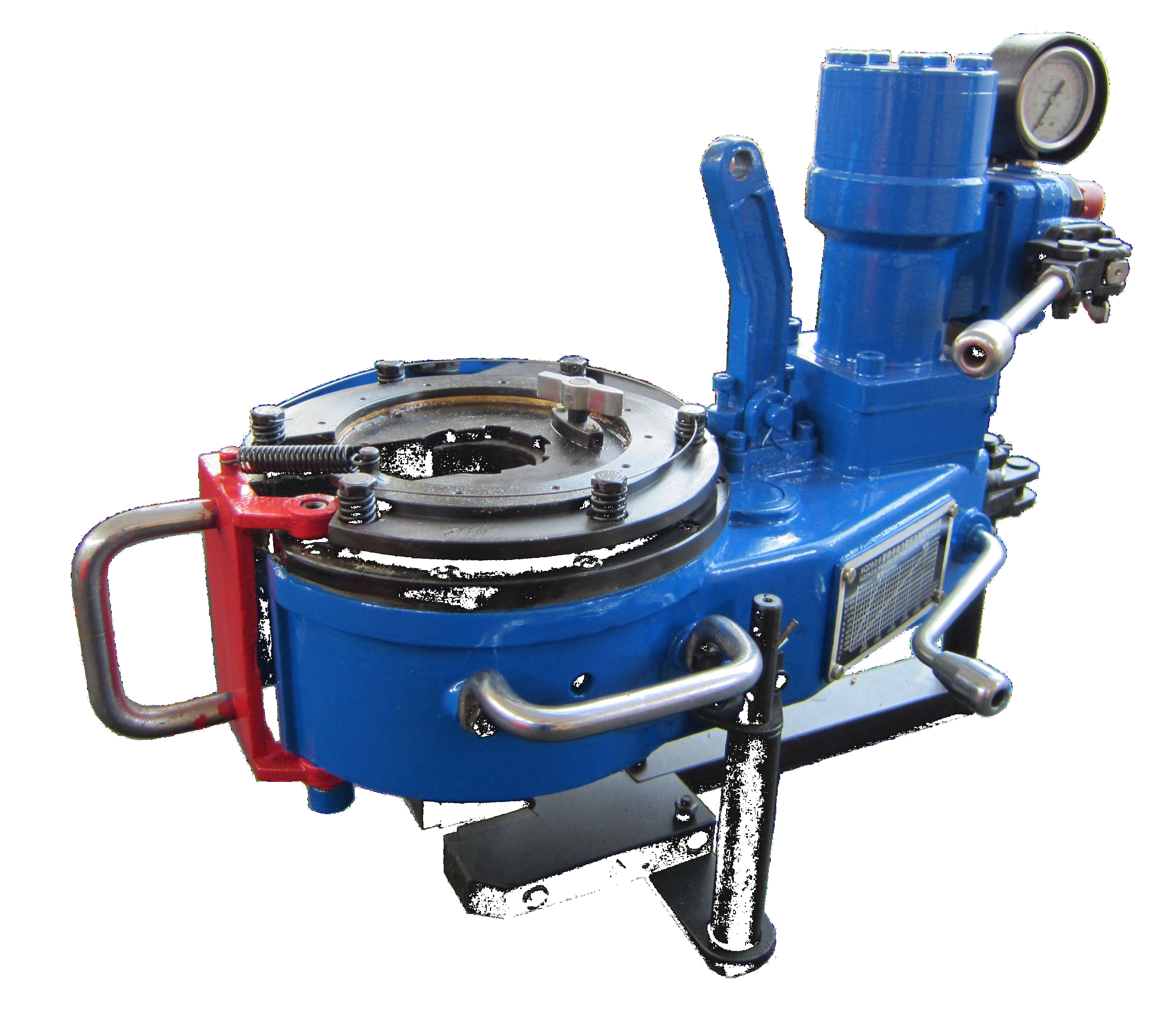

The series of hydraulic power tongs adopt inner cam rolling-up clamping mechanism, with a hydraulic backup tong. It is an ideal tool for makeup or breakout of various of tubings, and small sizes of casings and drill pipes in workover operation. The tong with extra long rod is available for backup tong to grip tubing body. The power tong also can be equipped with automatic torque control system.
Main technical parameters:
Model | XQ89/3Y3YC | XQ114/6YB | XQ140/12Y | XQ140/12Y-T | ||
Applicable range main tong | mm | 60-89 | 60-114 | 60-140 | 48-140 | |
in | 23/8~31/2 | 23/8~41/2 | 23/8~51/2 | 1.9~51/2 | ||
Applicable range backup tong | mm | 60-114 | 73-141.5 | 73-156 | 60-156 | |
in | 27/8~41/8 | 27/8~51/8 | 27/8~61/8 | 23/8~61/8 | ||
Hi-gear rated tofque | kN.m | 1100 | 1500 | 2600 | 2600 | |
ft.lbf | 811 | 1106 | 1918 | 1918 | ||
Lo-gear rated tofque | kN.m | 3300 | 6000 | 12000 | 12000 | |
ft.lbf | 2213 | 4425 | 8851 | 8851 | ||
Ratek Speed | High gear | rpm | 90 | 85 | 72 | 72 |
Low gear | rpm | 30 | 20 | 14 | 14 | |
Rated pressure | MPa | 10 | 11 | 12 | 12 | |
psi | 1450 | 1595 | 1740 | 1740 | ||
Max.oil supply | L/min | 80 | 100 | 120 | 120 | |
gpm | 21 | 26 | 32 | 32 | ||
Size | mm | 650×430×550 | 750×500×600 | 1024×582×539 | 1050×620×900 | |
in | 25.6×16.9×21.7 | 29.5×19.7×23.6 | 40.3×22.9×21.2 | 41.3×24.4×35.4 | ||
Weight | kg | 158 | 220 | 480 | 480 | |
lb | 348 | 485 | 1060 | 1060 |
For Tubing/drill pipe XQ Series of Hydraulic Power Tongs API 7K
XQ series of hydraulic power tongs have inner cam rolling-up clamping mechanism, with a hydraulic backup tong. It is an ideal tool for makeup or breakout of various of tubings, and small sizes of casings and drill pipes in workover operation. The tong with extra long rod is avaulable for backup tong to grip tubing body. The power tong also can be equipped with automatic torque control system.
The tongs are designed and manufactured according to SY/T5074 Standard and API Spec 7K.
Model | XQ89/3YC | XQ114/6YB | XQ140/12Y | XQ140/20 |
Applicable range main tong mm | 60~89 | 60~114 | 73~140 | 60~140 |
Applicable range backup tong mm | 60~114 | 73~141.5 | 89~159 | 60~153.7 |
Max.torque N.m | 3300 | 6000 | 12000 | 20000 |
Speed rmp | 30~90 | 20~85 | 14~72 | 13.5~58 |
Rated presssure Mpa | 10 | 11 | 12 | 17.5 |
Max.flow l/min | 80 | 100 | 120 | 140 |
Size | 650x430x550 | 750x500x600 | 1024x582x539 | 1115x962x1665 |
Weight | 158 | 220 | 480 | 840 |
