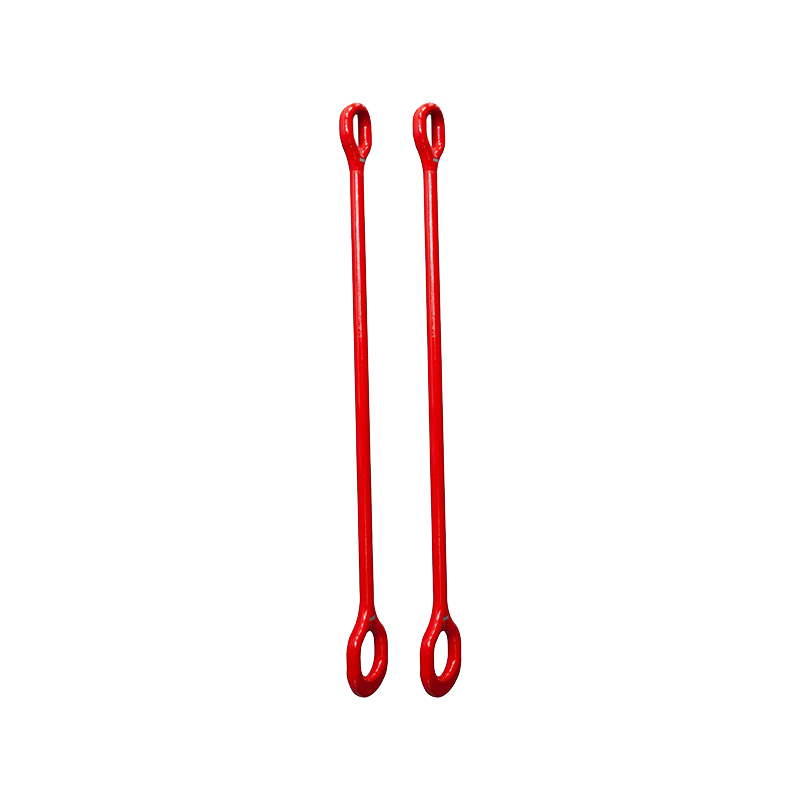

API Drilling Operation Tools DH350 Oil Well Drilling Elevator Integrate Bail Link 350 Ton
Elevator LinkAPI 8C certified product.
Load capacity 75 up to 450 tons.
Maximum length 1.5M to 3.6M.
Customized links available according to customer need.
Short on deliver time.
Elevators links are suitable for hanging pipes in the operation of well drilling or repairing. According to the structures, they have two forms: Type DH & Type SH. The weldless links are forged with high quality alloy steel. They are designed and manufactured according to API Spec 8A/8C.
| Model | Spec | Rated Capacity (short ton) | Length(mm |
| Single Ram Links | DH150 | 150ton | 1800MM |
| DH250 | 250ton | 2700MM | |
| DH350 | 350ton | 3300MM | |
| DH500 | 500ton | 3600MM | |
| SH75 | 75ton | 1500MM | |
| Double Ram Links | SH100 | 100ton | 1500MM |
| SH150 | 150ton | 1700MM |
