Home » Products » Drilling rig rotary system » Drill string » Factory Price Supply API 5D 5-1/2 Drill Collars Heavy Weight Drill Pipe

PRODUCT CATEGORY

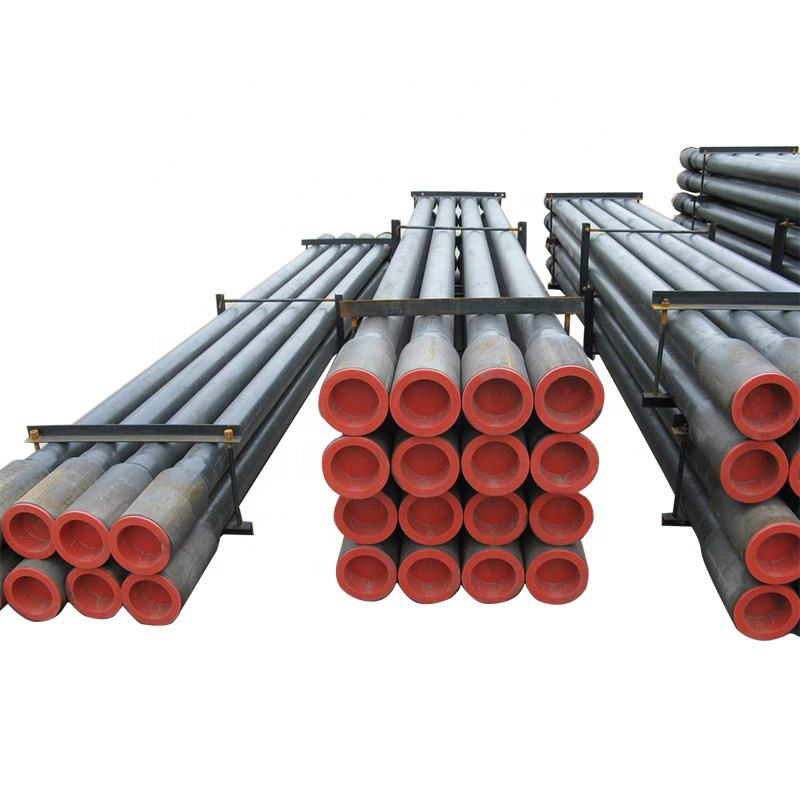

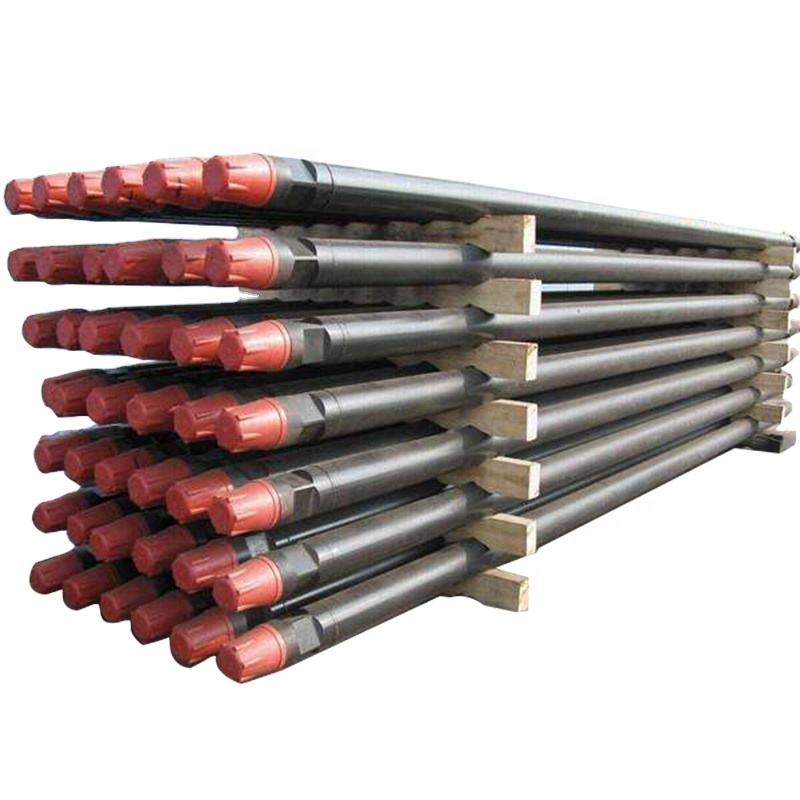

Factory Price Supply API 5D 5-1/2 Drill Collars Heavy Weight Drill Pipe

Factory Price Supply API 5D 5-1/2 Drill Collars Heavy Weight Drill Pipe


SKU:
Availability:



Inquire PDF Export

Product Description

Product Description

Drill pipe specifications
Designations					Pipe body OD.	Pipe wall thickness	Tool joint OD.	Tool joint PIN ID.	Approx mass
Lable 1	Lable 2	Grade	Upset type	RSC type	mm	mm	mm	mm	kg/m
Internal-upset
4	14.00	E	IU	NC40	101.60	8.38	133.4	71.4	22.42
4	14.00	G	IU	NC40	101.60	8.38	139.7	61.9	22.76
4-1/2	13.75	E	IU	NC40	114.3	6.88	152.4	85.7	22.5
3-1/2	15.5	G	EU	NC38	88.9	11.4	120.7	54.0	25.38
2-3/8	6.65	E	EU	NC26	60.32	7.11	85.7	44.5	10.45
2-7/8	10.40	S	EU	NC31	73.02	9.19	111.1	41.3	17.19
We can supply full size drill pipe with API 5D/5DP, including IU, EU, IEU. Please leave a message for consultation.

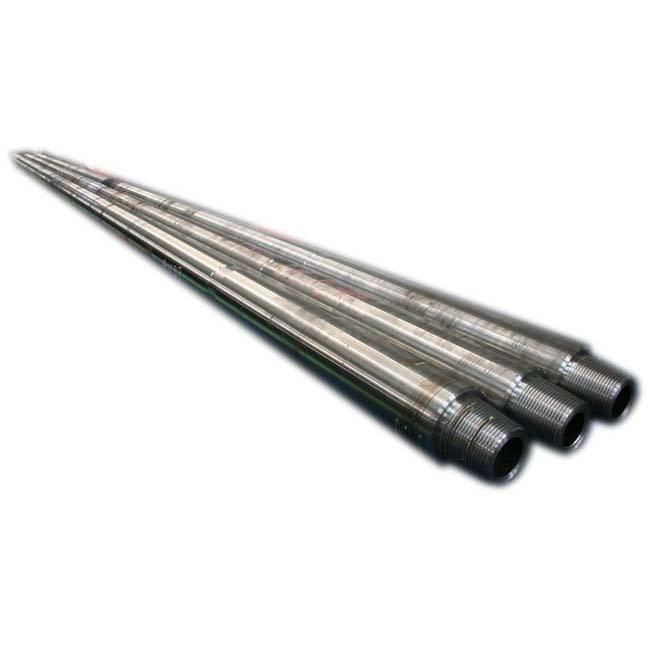

Drill collar specifications
Nominal Size	OD		ID		Length	Bevel Dia. mm	Bending Strength Ratio
Nominal Size	mm	in	mm	in	mm	Bevel Dia. mm	Bending Strength Ratio
NC31-41(2-7/8IF)	104.8	4-1/8	50.8	2	9150	100.4	2.43:1
NC35-47	120.7	4-3/4	50.8	2	9150	114.7	2.58:1
NC38-50(3-1/2IF)	127	5	57.2	2-1/4	9150	121	2.38:1
NC44-60	152.4	6	71.4	2-13/16	9150/9450	144.5	2.84:1
NC44-62	158.8	6-1/4	57.2	2-1/4	9150/9450	149.2	2.91:1
NC46-62(4IF)	158.8	158.8	71.4	2-13/16	9150/9450	150	2.63:1
NC50-70(4-1/2IF)	177.8	7	57.2	2-1/4	9150/9450	164.7	2.54:1
NC56-77	196.8	7-3/4	71.4	2-13/16	9150/9450	185.3	2.70:1
6-5/8REG	209.6	8-1/4	71.4	2-13/16	9150/9450	195.7	2.93:1
NC61-90	228.6	9	71.4	2-13/16	9150/9450	212.7	3.17:1
We can supply full size drill collar with API 5D/5DP, Please leave a message for consultation.

Heavy weight drill pipe specifications
Nominal size	Pipe body		Tool Joint			Single weight Bec
Nominal size	OD.	ID.	RSC type	OD.	ID.	kg/pcs
3-1/2	3-1/2	2-1/4	NC38	4-3/4 4-7/8	2-1/4	319
4	4	2-1/2 2-1/16	NC40	5-1/4	2-1/2 2-9/16	434 423
4-1/2	4-1/2	2-3/4	NC46	6-1/4	2-3/4	578
5	5	3	NC50	6-5/8	3	702
5-1/2	5-1/2	3-1/4	5-1/2FH	7	3-1/4	842
6-5/8	5-1/2	4-1/2	6-5/8FH	8-1/4	4-1/2	1084
We can supply full size drill pipe with API 5D/5DP, Please leave a message for consultation.

5D 5-1/2 Factory Price Supply API 5D 5-1/2 Drill Collars Heavy Weight Drill Pipe Drill Pipe

FAQ

Q YP Petro manufactures power end components including extension rods, crossheads, crosshead pins, cross pin baffles, upper and lower guide plates, packing boxes, seal rings, and oil seal lips. We also supply crankshaft assemblies, gear sets, and connecting rods for major mud pump models.

A
Yes. YP Petro accepts OEM/ODM orders based on customer drawings, technical specifications, or reverse-engineered samples. Our engineering team can confirm feasibility, recommend material upgrades, and provide quotations within 3-5 working days.
Q What power end parts does YP Petro manufacture?

A
YP Petro manufactures power end components including extension rods, crossheads, crosshead pins, cross pin baffles, upper and lower guide plates, packing boxes, seal rings, and oil seal lips. We also supply crankshaft assemblies, gear sets, and connecting rods for major mud pump models.
Q What other fluid end parts does YP Petro supply?

A
In addition to cylinder liners, YP Petro supplies a complete range of fluid end parts, including pistons, piston rubber, valve bodies, valve seats, valve rubber, liner seals, cylinder head gaskets, valve cover seals, piston rods, clamp assemblies, valve covers, cylinder heads, flange heads, cylinder flanges, cylinder covers, and inhalation capsules. We also supply dampener diaphragms, pressure gauges, fittings, relief valves, and exhaust valves.
Q What size range of cylinder liners does YP Petro offer?

A
YP Petro cylinder liners are available in metric sizes from 100mm to 180mm and imperial sizes from 3" to 7.5" (including 3", 3.5", 4", 4.5", 5", 5.5", 6", 6.25", 6.5", 6.75", 7", 7.25", 7.5"). Custom sizes are available on request.
Q What is the difference between bi-metal, ceramic, chrome-plated, and high-frequency quenching cylinder liners?

A
| Type | Inner Material | Hardness | Service Life | Best For |
| Bi-Metal | High-chromium cast iron | HRC 62 | 800h+ | General high-pressure, abrasive drilling |
| Ceramic | Al₂O₃ or Zirconia | HRC 80+ | 1500h+ | Extreme abrasion, high-sand formations |
| Chrome-Plated | Hard chrome coating | HRC 55 | 300-400h | Moderate conditions, budget operations |
| High-Frequency Quenching | Quenched alloy iron | HRC 50 | 200-300h | Light-duty, low-cost applications |
