Industrial stainless steel slurry horizontal centrifugal pump

sharethis sharing button
  • all

  • hebei yingpai

  • 84314310

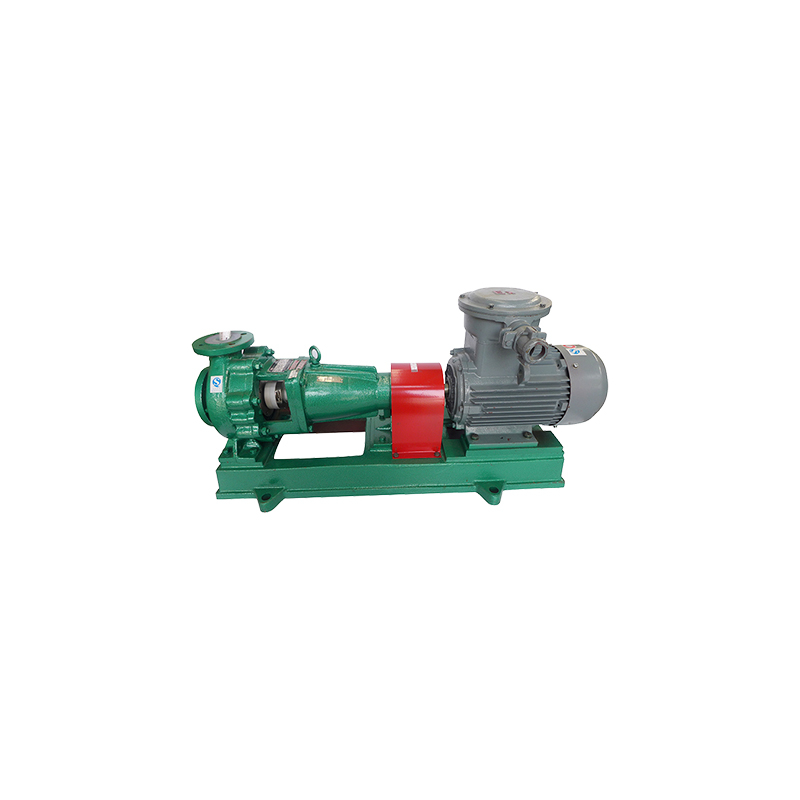

IHL Stainless Steel Centrifugal Pump

Basic Info.

Model NO.
Position of Pump Shaft
Horizontal Pump
Pump Casing Combined
Radial Split Casing
Mounting Height
Suction Centrifugal
Pump, Pumps, Circulating Pump, Chemical Pump
SS304, SS316, SS316L, Titanium, Monel, 2205, CD4mu
Manufacturer Level
Top Level
Shaft Sealing
Mechanical Seal and Packing
Pump Arrangement
Pipe Hung, Horizontal
Pump Transmission
Direct Coupled, Gear Box, V-Belts, Universal Joint
Flange Standard
Motor Brand
ABB, Siemens or Reputed Chinese Brands
Pump Bearing
SKF, NSK or Reputed Chinese Brands
Transport Package
Standard Seaworthy Packing
HS Code
Production Capacity
11000 PCS/Year

Design features

1. The pump uses a new hydraulic model, which is 5% more efficient than ordinary IH pumps, it Increase the shaft diameter and the bearing, lengthen the bearing housing, shorten the cantilever ratio, make its performance more stable, The pump can be equipped with different machine seals according to different working conditions, it has a wider range of conveying media and a Relatively low price, is one of the most popular chemical pumps. 2.Pump shaft seal: single-end mechanical seal (standard), single-end external seal (simplified structure, easy installation), double-faced machine seal (wearable, with water cooling); 3.Suspension components: The suspension components are modular in design and highly generalized. 4.Pump material: The main over-current parts are standard 304, can be customized 304L, 316, 316L, 2205, special stainless steel, etc., can meet the transportation of different media, long service life. 5.Fully sealed shaft: The shaft end adopts bushing and seal sealing design to ensure that the shaft does not touch the medium and improve the service life of the shaft. Generally, only the sleeve needs to be replaced.

Main application

Alkali and inorganic salts: ammonia-alkali method, ammonia brine mother liquor produced by the combined alkali method, caustic alkali, caustic alkali, chloride and hypochlorite produced by the membrane alkali and ion-exchange membrane process, alkali sulfide, sulfate, hydrogen peroxide and the like.Non-ferrous metal smelting: electrolyzing copper-nickel electrolyte, producing aluminum sodium aluminate, producing cobalt acid mist, producing zinc mineral slurry, producing vanadium ammonium vanadate, producing gold acid mist and thiourea solution, etc. .Steel industry: electroplating, pickling, electrophoretic paint, etc.Acid industry: hydrochloric acid, nitric acid, sulfuric acid, phosphoric acid, phosphoric acid slurry, acetic acid, etc.Petrochemical: petroleum refining, cracking, separation, butadiene, alkylbenzene, methanol, etc.

Synthetic fiber and plastics industry: polyester, dichloromethane, epichlorohydrin, trichloropropane, polyvinyl chloride, dimethylformamide, etc.

Paper industry: pulp cooking liquor, green liquor, white liquor, concentrated black liquor, bleaching liquid, etc.Fertilizer industry: urea, ammonium nitrate, ammonium hydrogencarbonate, ammonium chloride, ammonium phosphate, potassium chloride, potassium sulfate, etc.Fermentation industry: intermediates, lactic acid, citric acid, food additives, beer, various fermentation slurries, etc.Environmental protection: various chemicals, including acid and alkali wastewater.

Typical operating conditions: chemical, petrochemical, paper, printing and dyeing, food, etc.The pump's applicable temperature: - 20 ° C to 100 ° C, can be up to 200 ° C after sealing with a water cooler.

Mounting dimension
