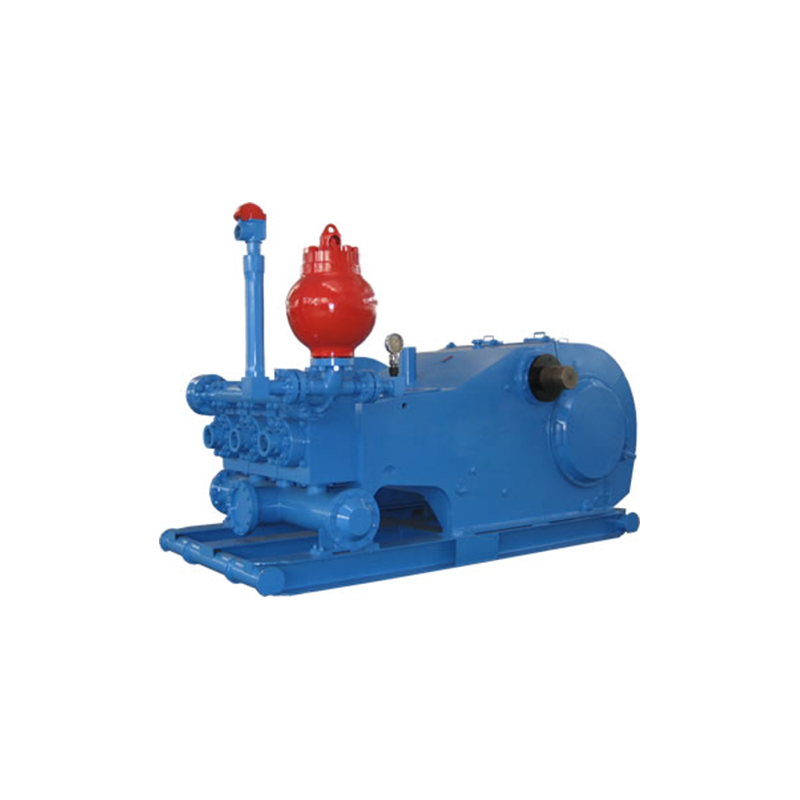

F-1300 Triplex Mud Pumps (API-7K)

Rated Horsepower: 1,300 HP

Rated Pump Speed: 120 SPM

Maximum Liner Size by Stroke Length: 7" x 12"

Suction Connection: 12"

Discharge Connection: 5-1/8" 5,000 psi Flange

Gear Ratio: 4.206:1

Valve Pot: API #7

Approximate Weight: 54,171 lbs

Model:
F-1300 Triplex Mud Pumps (API-7K)


SKU:
Availability:



Inquire PDF Export

Product Description

Product Description

We specialize in supplying high-quality mud pump equipment and mud pump parts.

The F series mud pumps can achieve the same manufacturing process and quality level as the F series mud pumps of EMSCO, IDECO, GARDNER DENVOR, OILWELL and other companies. At present, the F series mud pumps (from F-500 to F-2200) have been mass-produced and sold to major foreign oil fields. Customers are welcome to order.

We mainly export and produce mud pump parts, including cylinder liners, pistons, piston inserts, valve inserts, oil seals, rod packings, hydraulic ends, etc. All products meet or exceed DIN and API standards and have been exported to the UK, Germany, the US, Canada, Pakistan, the Middle East and other regions.

We also supply mud pump parts according to drawings or samples provided by customers.

Liner Size, inches		7	6-3/4	6-1/2	6	5-1/2	5
Rated Pressure, psi		2,786	2,998	3,232	3,792	4,516	5,000
Pump Speed SPM	Input Power HP	Displacement, GPM
120	1,300	720	669	621	529	444	367
110	1,192	660	613	569	485	407	337
100	1,083	600	558	517	441	370	306
90	975	540	502	465	397	333	275
80	867	480	446	414	353	296	245
70	758	420	390	362	308	259	214
Volume/Stroke, gallons		6.00	5.58	5.17	4.41	3.70	3.06

Pump parts are available for the following Mud Pump
BOMCO	F-500	F-800	F-1000	F-1300	F-1600	F-1600HL	F-1600L	F-2200HL
HONG HUA	HHF-500	HHF-800	HHF-1300	HHF-1600	3NB-1600F	5NB-1600	5NB-2400
EMSCO	F-500	F-800	F-1000	F-1300	F-1600	FD-1000	FC-2200	FB-1300
GARDNER DENVER	PAH	P7	P8/9	P10/11	PXL	PX-11	PZL	PY-FXD
NATIONAL	7-P-50	8-P-80	9-P-100	10-P-130	12-P-160	14-P-200	14-P-220	N-1000/1300
OILWELL	A-850-PT	A-1100-PT	A-1700-PT
TSC	WF-500	WF-800	WF-1300	WF-1600	WF-2000	WF-2200
IDECO	T-500	T-800	T-1300	T-1600
NOTE	Due to variation of pump models, each owner is recommended to offer the PART NUMBER of the original pumps

Explore the Yingpai advantage and discover why we are a trusted name in the industry.

Whether you are in the market for API triplex mud pumps or seeking a reliable triplex mud pump manufacturer, Yingpai is here to meet your needs.

Contact us today to explore our range and find the perfect solution for your drilling operations.

Our company is a professional supplier of oil equipment, including drilling and workover rig spare parts, mud pumps, well control systems, drill strings, solids control equipment, operating tools, downhole tools, oil well pipes, drilling tools, cementing tools and spare parts, and in compliance with API certification. Our products are exported to Russia, the United States, the Middle East, South America, Southeast Asia, Central Asia, Africa, Australia, Europe and other regions. Our company is willing to sincerely cooperate with foreign friends and make common progress with first-class products, first-class services and reasonable prices.

Mud Pumps (API-7K) F-1300 Triplex Mud Pumps (API-7K) Mud Pumps F-1300 Mud Pump F1300 ceramic liner mud pump ceramic liner mud pump steel liner Mud Pump Parts liner

FAQ

Q YP Petro manufactures power end components including extension rods, crossheads, crosshead pins, cross pin baffles, upper and lower guide plates, packing boxes, seal rings, and oil seal lips. We also supply crankshaft assemblies, gear sets, and connecting rods for major mud pump models.

A
Yes. YP Petro accepts OEM/ODM orders based on customer drawings, technical specifications, or reverse-engineered samples. Our engineering team can confirm feasibility, recommend material upgrades, and provide quotations within 3-5 working days.
Q What power end parts does YP Petro manufacture?

A
YP Petro manufactures power end components including extension rods, crossheads, crosshead pins, cross pin baffles, upper and lower guide plates, packing boxes, seal rings, and oil seal lips. We also supply crankshaft assemblies, gear sets, and connecting rods for major mud pump models.
Q What other fluid end parts does YP Petro supply?

A
In addition to cylinder liners, YP Petro supplies a complete range of fluid end parts, including pistons, piston rubber, valve bodies, valve seats, valve rubber, liner seals, cylinder head gaskets, valve cover seals, piston rods, clamp assemblies, valve covers, cylinder heads, flange heads, cylinder flanges, cylinder covers, and inhalation capsules. We also supply dampener diaphragms, pressure gauges, fittings, relief valves, and exhaust valves.
Q What size range of cylinder liners does YP Petro offer?

A
YP Petro cylinder liners are available in metric sizes from 100mm to 180mm and imperial sizes from 3" to 7.5" (including 3", 3.5", 4", 4.5", 5", 5.5", 6", 6.25", 6.5", 6.75", 7", 7.25", 7.5"). Custom sizes are available on request.
Q What is the difference between bi-metal, ceramic, chrome-plated, and high-frequency quenching cylinder liners?

A
| Type | Inner Material | Hardness | Service Life | Best For |
| Bi-Metal | High-chromium cast iron | HRC 62 | 800h+ | General high-pressure, abrasive drilling |
| Ceramic | Al₂O₃ or Zirconia | HRC 80+ | 1500h+ | Extreme abrasion, high-sand formations |
| Chrome-Plated | Hard chrome coating | HRC 55 | 300-400h | Moderate conditions, budget operations |
| High-Frequency Quenching | Quenched alloy iron | HRC 50 | 200-300h | Light-duty, low-cost applications |
