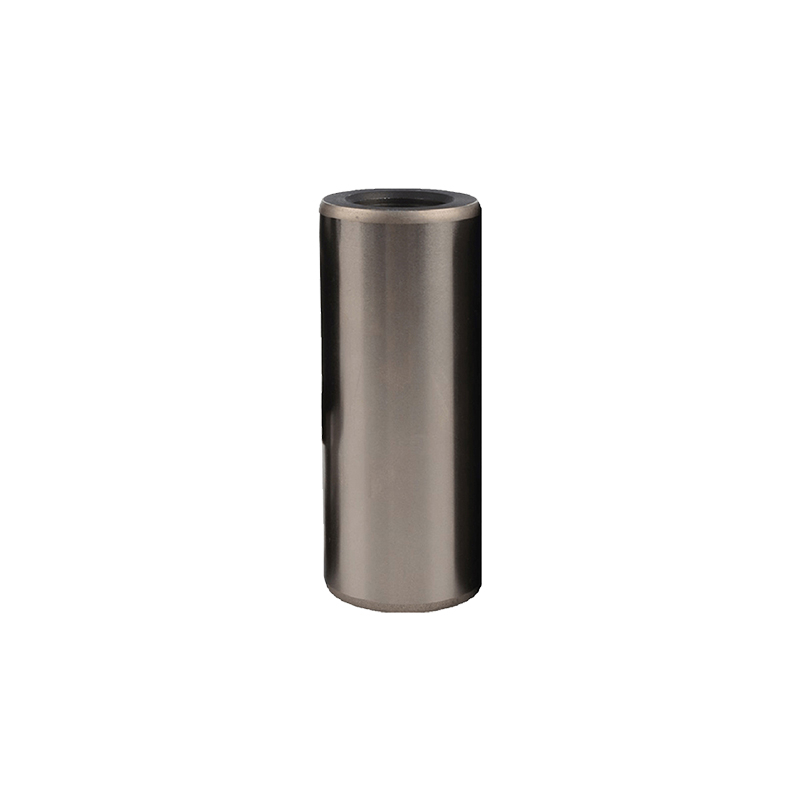

Drill Pipe Joints Full-Size Slim Hole Sucker Rod Coupling FS SH Sucker Rod Coupling

Drill Pipe Joints Full-Size Slim Hole Sucker Rod Coupling FS SH Sucker Rod Coupling

Class T and Class SM coupling for sucker rods are manufactured as per API Specification 11B. For the thread cutting, we are using cold form rolled by displacing rather than by removing of material for making the coupling thread. The thread rolling cutting results in a compressive stress at the root of the thread, giving maximum strength to the traditional weak point of cut-thread couplings.

Class T coupling is using AISI 5140 to manufacture.The coupling is coated using phosphate chemical treatment or black oxide on customer's request.For Class SM coupling, the spray metal is a specification hardening process and is applied on the base metal.

The couplings are available in full size, slim hole and over size.Also, combination couplings are available for different diameters (sub-coupling) for both Class T and Class SM couplings.

We recommend changing sucker rod couplings after three make-ups, provided the connection threads have been inspected and deemed acceptable for reuse.

Model:
all
Brand:
Xinhuafa
Code:
84139100


SKU:
Availability:



Inquire PDF Export

Product Description

Product Description

Drill Pipe Joints Full-Size Slim Hole Sucker Rod Coupling FS SH Sucker Rod Coupling

Product Application

Class T and Class SM coupling for sucker rods are manufactured as per API Specification 11B. For the thread cutting, we are using cold form rolled by displacing rather than by removing of material for making the coupling thread. The thread rolling cutting results in a compressive stress at the root of the thread, giving maximum strength to the traditional weak point of cut-thread couplings.

Class T coupling is using AISI 5140 to manufacture.The coupling is coated using phosphate chemical treatment or black oxide on customer's request.For Class SM coupling, the spray metal is a specification hardening process and is applied on the base metal.

The couplings are available in full size, slim hole and over size.Also, combination couplings are available for different diameters (sub-coupling) for both Class T and Class SM couplings.

We recommend changing sucker rod couplings after three make-ups, provided the connection threads have been inspected and deemed acceptable for reuse.

Chemical Properties, %: Class T Coupling
Steel	AISI 5140
C	0.37~0.44
Si	0.17~0.37
Mn	0.50~0.80
P	≤0.040
S	≤0.040

Spray Metal Coating Chemical Properties, %: Class SM Coupling
Carbon	0.50~1.00
Silicon	3.50~5.50
Phosphorus	0.00~0.02
Sulfur	0.00~0.02
Chromium	12.00~18.00
Boron	2.50~4.50
Iron	3.00~5.50
Cobalt	0.00~0.10
Titanium	0.00~0.05
Aluminum	0.00~0.05
Zirconium	0.00~0.05
Nickel	Balance

OD		Coupling OD	Length	Wrench length	Wrench width
mm	in	(inch- mm)	(inch- mm)	mm	mm
16	5/8	38.1(1.500)	101.6(4.000)	31.8	34.9
19	3/4	41.3(1.625)	101.6(4.000)	31.8	38.1
22	7/8	46.0(1.812)	101.6(4.000)	31.8	41.3
25	1	55.6(2.187)	101.6(4.000)	31.8	47.6
29	1 1/8	60.3(2.375)	114.3(4.500)	41.3	53.9
