Professional oil drilling rig equipment sales.
Product Description

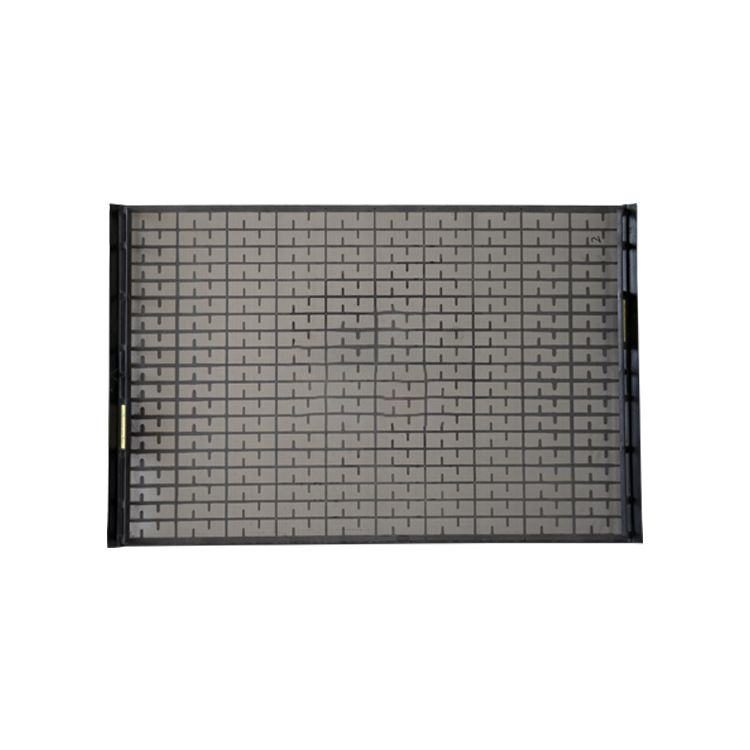

Our factory produces D500 flat, D500 wave, D2000 flat, D2000 wave and D600.
| Screen Model | Range of Mesh | Dimension (Width x Length) | Brand & Model of Shaker |
| HSB-1(WAVE ®) | 20-325 | 697×1053mm | FLC2000(PMD) Series |
| HSB-2((WAVE ®) | 20-325 | 695×1050mm | FLC500(PMD) Series |
| HSB-3(WAVE ®) | 20-325 | 710×626mm | FLC600 (PMD) Series |
| HSB-4(WAVE ®) | 20-325 | 567×1070mm | HYPERPOOL |
| HSP-1 | 20-325 | 697×1053mm | FLC2000(PWP) Series |
| HSP-2 | 20-325 | 695×1050mm | FLC500(PWP) Series |
| HSP-3 | 20-325 | 697× 846 mm | FLC313M |
| API RP 13C(ISO 13501) | |
| D100 Separation(Microns) | API Screen Number |
| >780.0 to 925.0 | API 20 |
| >655.0 to 780.0 | API 25 |
| >550.0 to 655.0 | API 30 |
| >462.5 to 550.0 | API 35 |
| >390.0 to 462.5 | API 40 |
| >327.5 to 390.0 | API 45 |
| >275.0 to 327.5 | API 50 |
| >231.0 to 275.0 | API 60 |
| >196.0 to 231.0 | API 70 |
| >165.0 to 196.0 | API 80 |
| >137.5 to 165.0 | API 100 |
| >116.5 to 137.5 | API 120 |
| > 98.0 to 116.5 | API 140 |
| > 82.5 to 98.0 | API 170 |
| > 69.0 to 82.5 | API 200 |
| > 58.0 to 69.0 | API 230 |
| > 49.0 to 58.0 | API 270 |
| > 41.5 to 49.0 | API 325 |
