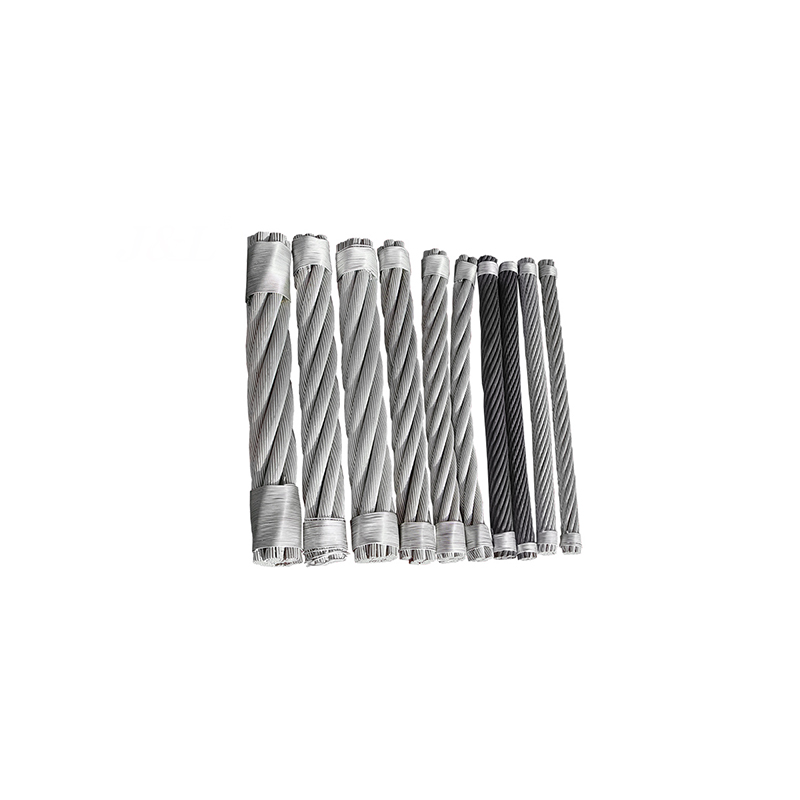

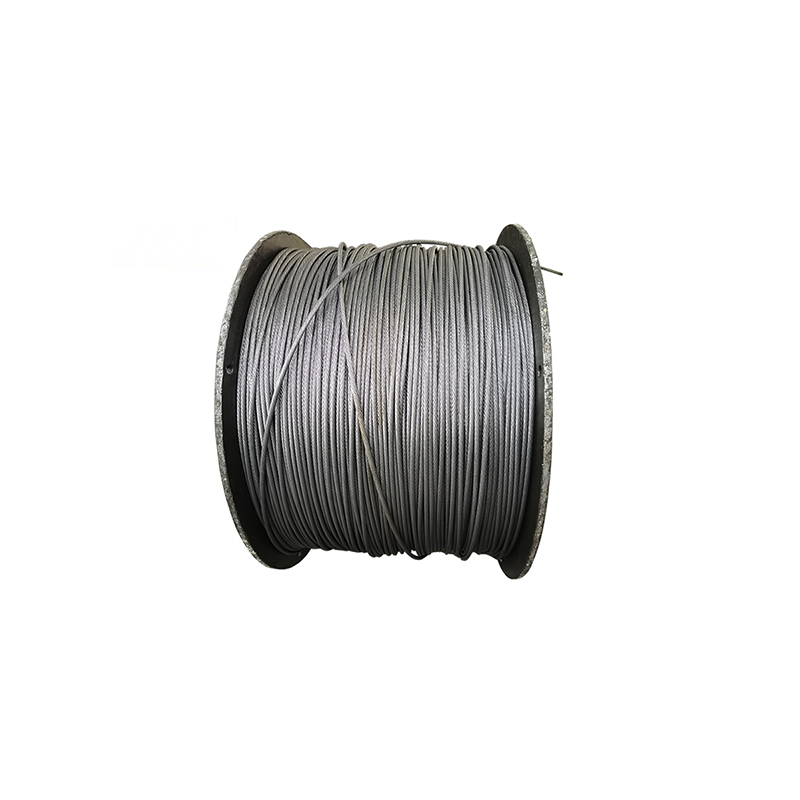

It is widely used in a variety of lifting, hoisting, and traction equipment.
Also the metallurgical machinery construction field. Such as cranes, construction machinery, shaft lifting, inclined shaft lifting, port loading and unloading, shipbuilding, transportation, mining industry, petroleum, marine engineering, etc.
Specifications
1. Diameter from 1.8mm to 260mm with various point and line contacts wire rope, compacted strand wire rope
2. Rope tensile strength grade from 1570Mpa to 2160Mpa
3. Production standard can be the national and international standards
Round Strand Wire Rope | |||||||
| Rope Type | Typical Construction | Rope Diameter(mm) | Rope Type | Typical Construction | Rope Diameter(mm) | ||
| Wire Rope | Strand | Wire Rope | Strand | ||||
| Single-strand wire rope | 1×7 | （1+6） | 6~16 | 6×24 | 6×24S | (FC+12+12) | 14~44 |
| 1×19 | （1+6+12） | 10~30 | 6×24W | (FC+8+8/8) | 14~44 | ||
| 1×37 | （1+6+12+18） | 14~42 | 8×19 | 8×19S | (1+9+9) | 16~50 | |
| 1×61 | （1+6+12+18+24） | 20~54 | 8×19W | (1+6+6/6) | 16~50 | ||
| 1×91 | （1+6+12+18+24+30） | 30~66 | 8×25Fi | (1+6+6F+12) | 18~56 | ||
| 1×127~1×631 | — | 50~160 | 8×26WS | (1+5+5/5+10) | 16~54 | ||
| 6×7 | 6×7 | （1+6） | 6~36 | 8×31WS | (1+6+6/6+12) | 16~60 | |
| 6×19(a) | 6×19S | (1+9+9) | 12~42 | 8×37(a) | 8×36WS | (1+7+7/7+14) | 18~108 |
| 6×19W | (1+6+6/6) | 12~42 | 8×41WS | (1+8+8/8+16) | 28~120 | ||
| 6×25Fi | (1+6+6F+12) | 16~42 | 8×49SWS | (1+8+8+8/8+16) | 40~120 | ||
| 6×26WS | (1+5+5/5+10) | 16~42 | 8×55SWS | (1+9+9+9/9+18) | 40~124 | ||
| 6×31WS | (1+6+6/6+12) | 18~42 | 8×37(b) | 8×37 | (1+6+12+18) | 60~86 | |
| 6×19(b) | 6×19 | (1+6+12) | 9~46 | 8×61(a) | 8×61FWS | (1+5+5F+10+10/10+20) | 60~136 |
| 6×37(a) | 6×29Fi | (1+7+7F+14) | 18~64 | 8×64SFS | (1+9+9+9F+18+18) | 60~124 | |
| 6×36WS | (1+7+7/7+14) | 16~90 | 8×61(ab) | 8×65FNS | (1+6+6F+12-20+20) | 60~140 | |
| 6×41WS | (1+8+8/8+16) | 38~100 | 8×80WSNS | (1+7+7/7+14-22+22) | 50~158 | ||
| 6×49SWS | (1+8+8+8/8+16) | 38~100 | 8×84WSNS | (1+7+7/7+14-24+24) | 60~172 | ||
| 6×55SWS | (1+9+9+9/9+18) | 38~100 | 8×91(ab) | 8×111SWSNS | (1+9+9+9/9+18-28+28 | 60~156 | |
| 6×37WS | (1+6+15+15) | 16~64 | 8×103FSNS | (1+7+7F+14+14-30+30) | 60~190 | ||
| 6×37(b) | 6×37 | (1+6+12+18) | 13~66 | 8×109SWSNS | (1+8+8+8/8+16-30+30) | 60~190 | |
| 6×61(a) | 6×61FWS | (1+5+5F+10+10/10+20) | 60~110 | 8×61(b) | 8×61 | (1+6+12+18+24) | 60~134 |
| 6×64FS | (1+9+9+9F+18+18) | 60~100 | 18×7 | 17×7 | (1+6) | 12~44 | |
| 6×61(ab) | 6×65FNS | (1+6+6F+12-20+20) | 60~116 | 18×7 | (1+6) | 12~55 | |
| 6×80WSNS | (1+7+7/7+14-22+22) | 60~130 | 18×19 | 18×19S | (1+9+9) | 18~50 | |
| 6×84WSNS | (1+7+7/7+14-24+24) | 60~142 | 18×19W | (1+6+6/6) | 14~50 | ||
| 6×91(ab) | 6×111SWSNS | (1+9+9+9/9+18-28+28) | 60~128 | 18×19 | (1+6+12) | 14~50 | |
| 6×103FSNS | (1+7+7F+14+14-30+30) | 60~156 | 34×7 | 34×7 | (1+6) | 16~60 | |
| 6×109SWSNS | (1+8+8+8/8+16-30+30) | 60~156 | 36×7 | (1+6) | 16~60 | ||
| 6×61(b) | 6×61 | (1+6+12+18+24) | 40~110 | 35W×7 | 35W×7 | (1+6) | 16~60 |
| 6×12 | 6×12 | (FC+12) | 8~32 | 24W×7 | (1+6) | 16~50 | |
| 6×24 | 6×24 | (FC+9+15) | 30~46 | ||||
Shaped Strand Wire Rope | |||||||
| Rope Type | Typical Construction | Rope Diameter(mm) | Rope Type | Typical Construction | Rope Diameter(mm) | ||
| Wire Rope | Strand | Wire Rope | Strand | ||||
| 4V×39 | 4V×39S | (FC+9+15+15) | 14~46 | 6V×19 | 6V×30 | (6+12+12) | 22~38 |
| 4V×48S | (FC+12+18+18) | 20~50 | 6V×34 | (/1×7+3/+12+12) | 28~44 | ||
| 6V×7 | 6V×19 | (/1×7+3/+9) | 20~36 | 6V×37 | 6V×37 | (/1×7+3/+12+15) | 32~52 |
| 6V×19 | 6V×21 | (FC+9+12) | 18~36 | 6V×37S | (/1×7+3/+12+15) | 32~52 | |
| 6V×24 | (FC+12+12) | 18~36 | 6V×43 | (/1×7+3/+15+18) | 38~58 | ||
Compacted Strand Wire Rope | |||||||
| Rope Type | Typical Construction | Rope Diameter(mm) | Rope Type | Typical Construction | Rope Diameter(mm) | ||
| Wire Rope | Strand | Wire Rope | Strand | ||||
| 6×K7 | 6×K7 | 1+6 | 10~40 | 8×K36-PWRC(K) | 8×K36WS-PWRC(K) | 1+7+7/7+14 | 22~60 |
| 6×K19 | 6×K19S | 1+9+9 | 12~40 | 15×K7 | 15×K7 | 1+6 | 22~60 |
| 6×K26WS | 1+5+5/5+10 | 14~40 | 16×K7 | 16×K7 | 1+6 | 22~60 | |
| 6×K31WS | 1+6+6/6+12 | 16~40 | 18×K7 | 18×K7 | 1+6 | 14~48 | |
| 6×K36 | 6×K36WS | 1+7+7/7+14 | 24~68 | 18×K9 | 18×K9S | 1+9+9 | 24~60 |
| 6×K41WS | 1+8+8/8+16 | 38~68 | 35W×K7 | 35W×K7 | 1+6 | 14~42 | |
| 8×K19 | 8×K17S | 1+8+8 | 16~38 | 35W×K19S | 1+9+9 | 35~52 | |
| 8×K19S | 1+9+9 | 16~40 | 35W×K26WS | 1+5+5/5+10 | 40~60 | ||
| 8×K26WS | 1+5+5/5+10 | 20~42 | JL·1618K | JL·1618K | 1+6 | 18~60 | |
| 8×K31WS | 1+6+6/6+12 | 24~50 | JL·1710K | JL·1710K26WS | 1+5+5/5+10 | 20~50 | |
| 8×K36 | 8×K36WS | 1+7+7/7+14 | 28~78 | JL·1710K31WS | 1+6+6/6+12 | 20~50 | |
| 8×K41WS | 1+8+8/8+16 | 30~78 | JL·1710K36WS | 1+7+7/7+14 | 30~50 | ||
| 8×K19-PWRC(K) | 8×K19S-PWRC(K) | 1+9+9 | 20~48 | JL·1712K | JL·1712K7 | 1+6 | 20~40 |
| 8×K26WS-PWRC(K) | 1+5+5/5+10 | 20~48 | JL·1710K719S | 1+9+9 | 30~60 | ||
| 8×K31WS-PWRC(K) | 1+6+6/6+12 | 20~56 | |||||
Steel Cable | |||||||
| Rope Type | Typical Construction | Rope Diameter(mm) | Rope Type | Typical Construction | Rope Diameter(mm) | ||
| Wire Rope | Strand | Wire Rope | Strand | ||||
| 7×[6×37(a)+IWR] | 6×[6×36WS+IWR]+IWRC | 192~260 | 9×[6×37(a)+IWR] | 8×[6×36WS+IWR]+IWRC | 192~260 | ||
| 6×[6×41WS+IWR]+IWRC | 192~260 | 8×[6×41WS+IWR]+IWRC | 192~260 | ||||
| 6×[6×49SWS+IWR]+IWRC | 192~260 | 8×[6×49SWS+IWR]+IWRC | 192~260 | ||||
| 7×[6×61(a)+IWR] | 6×[6×55SWS+IWR]+IWRC | 192~260 | 9×[6×61(a)+IWR] | 8×[6×55SWS+IWR]+IWRC | 192~260 | ||
| 6×[6×61FWS+IWR]+IWRC | 192~260 | 8×[6×61FWS+IWR]+IWRC | 192~260 | ||||
| 6×[6×64SFS+IWR]+IWRC | 192~260 | 6×[6×64SFS+IWR]+IWRC | 192~260 | ||||
| 7×[6×37(b)+IWR] | 6×[6×37+IWR]+IWRC | 192~260 | 9×[6×37(b)+IWR] | 8×[6×37+IWR]+IWRC | 192~260 | ||
| 7×[6×61(b)+IWR] | 6×[6×61+IWR]+IWRC | 192~260 | 9×[6×61(b)+IWR] | 8×[6×61+IWR]+IWRC | 192~260 | ||
