* Ambient temperature: -15℃～40℃ * Altitude: no more than 1000 meters * Duty system: continuous work system (S1) * Protection level: IP54 * Insulation class: F * Cooling method: IC411/IC416

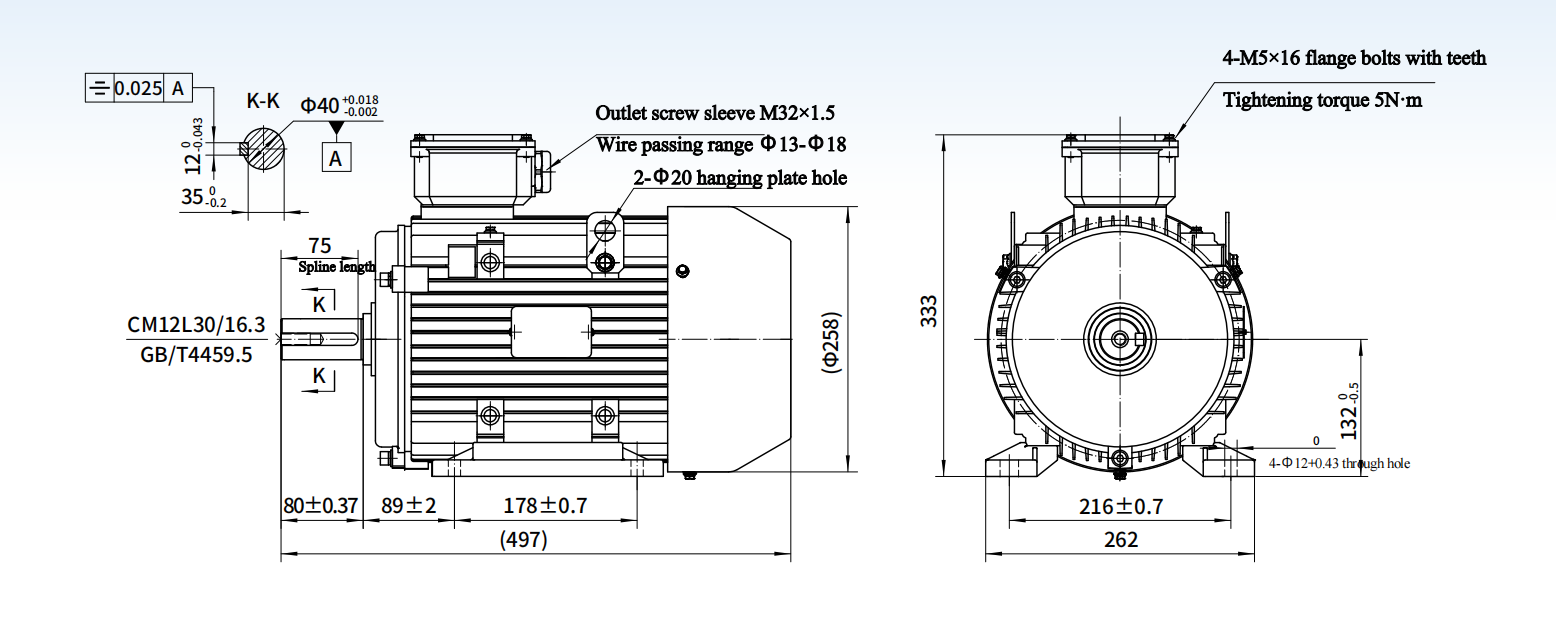

Installation Dimension Drawing

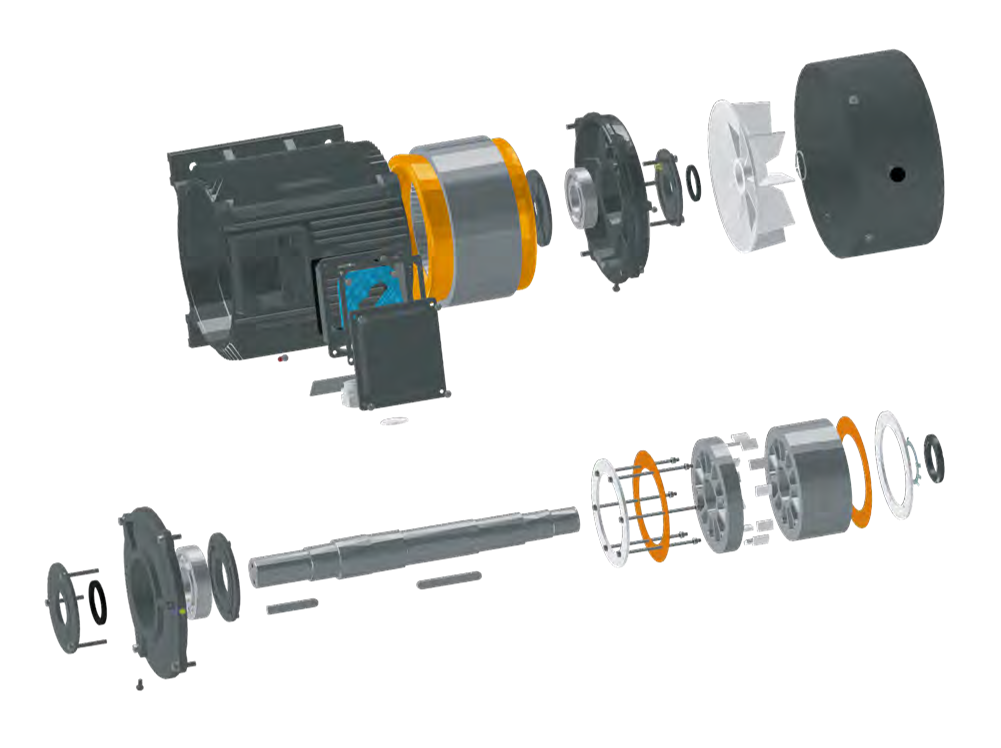

EXPLODED VIEW OF MAIN COMPONEN

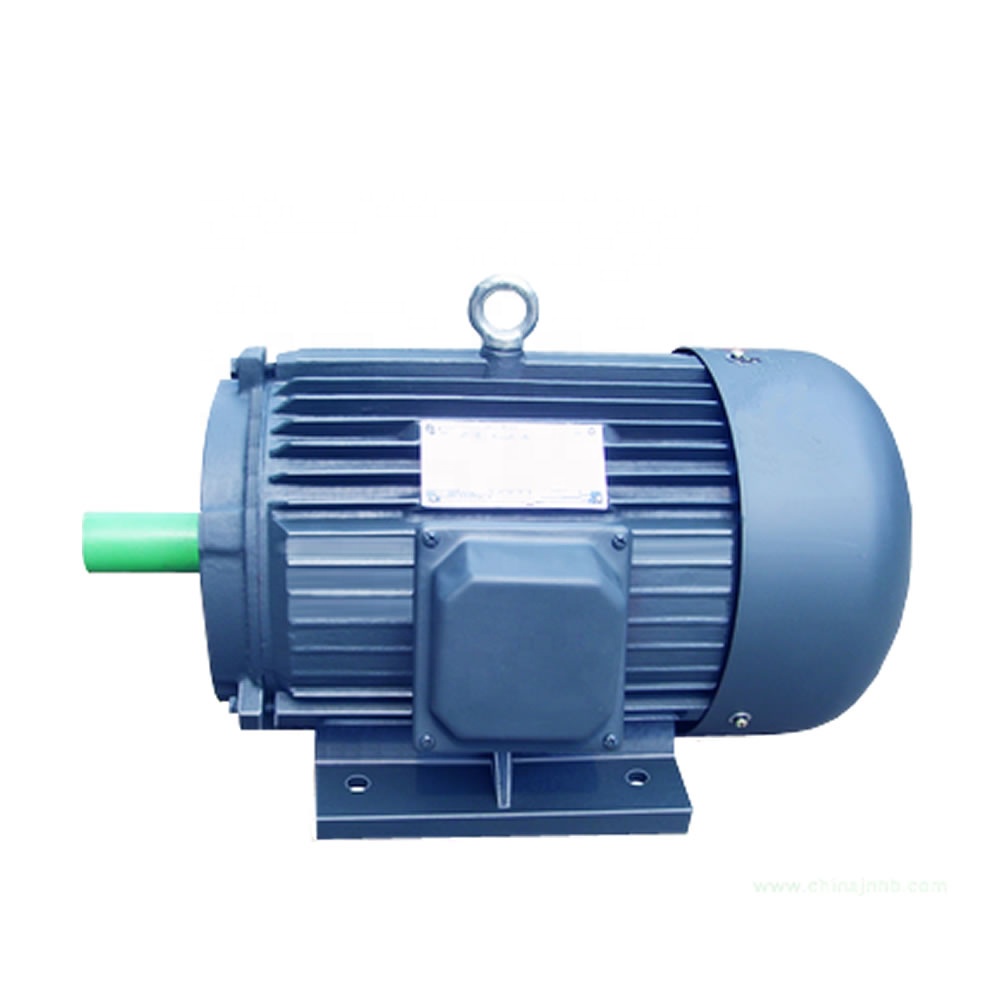

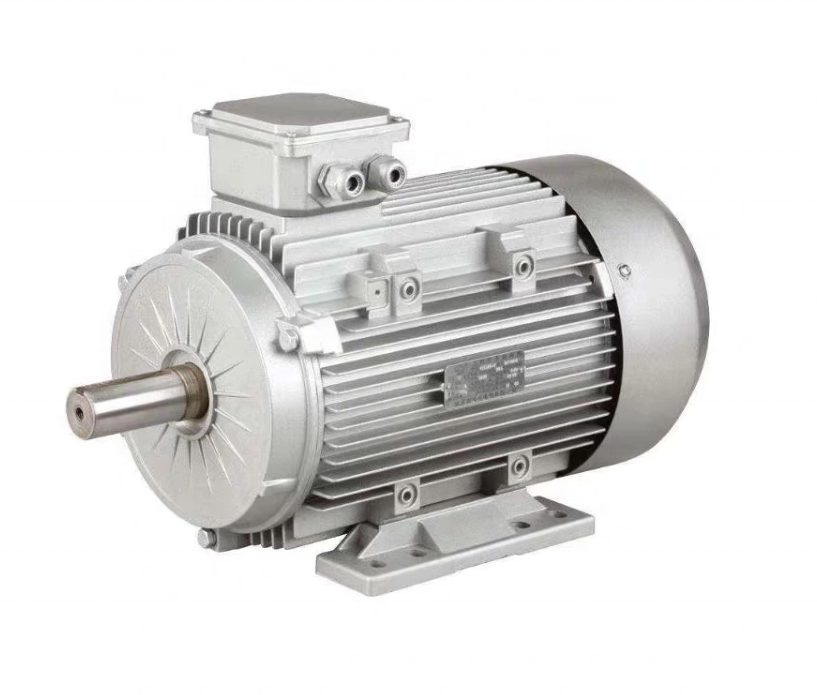

Other models of Motors

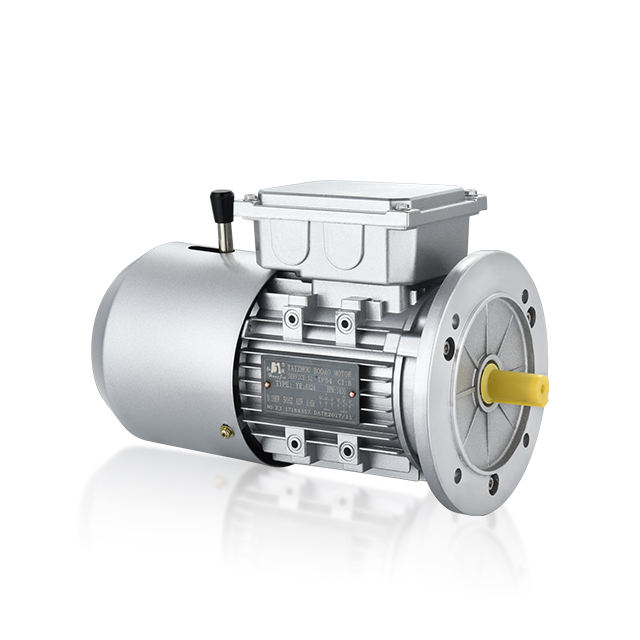

Product pictures

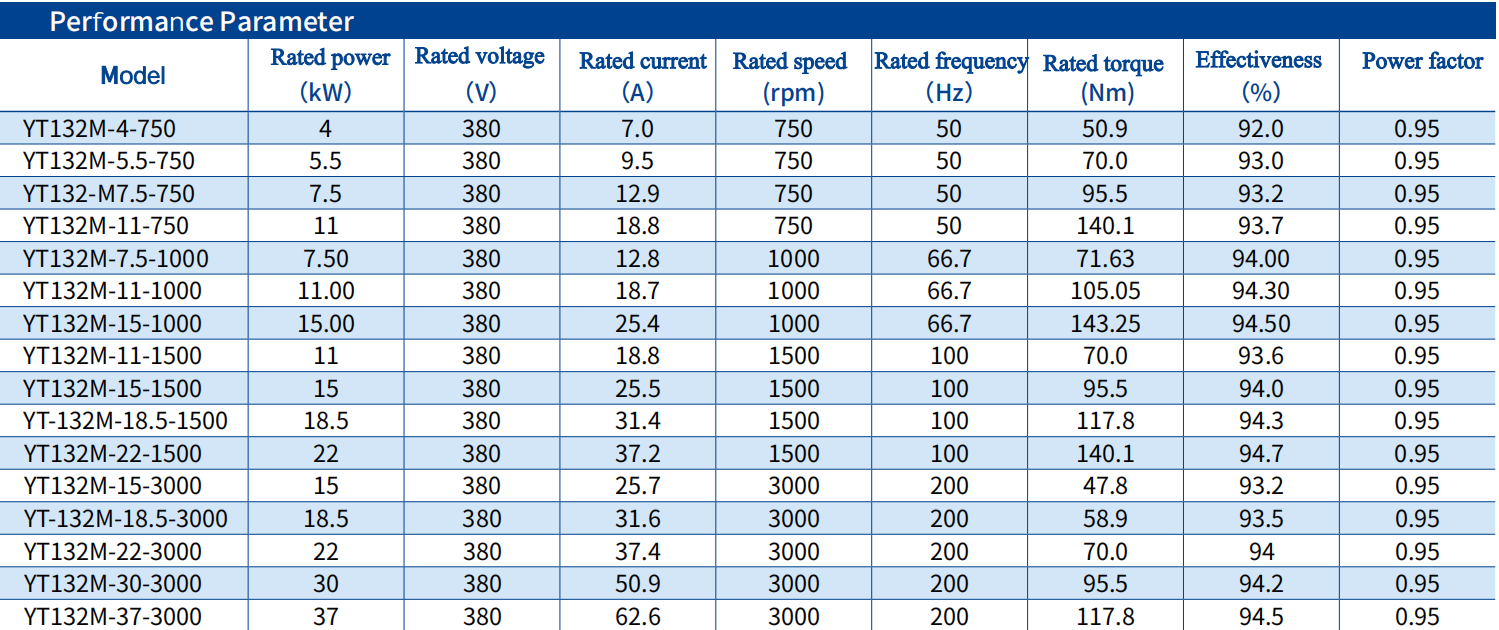

Model：YT132M-4-750
Rated power
4KW
Rated frequency
50HZ
Rated Voltage
380V
Rated torque
50.9Nm
Rated Current
7.0A
Effectiveness（%）
92%
Rated speed
750RPM
Power factor
0.95
* Ambient temperature: -15℃～40℃ * Altitude: no more than 1000 meters * Duty system: continuous work system (S1) * Protection level: IP54 * Insulation class: F * Cooling method: IC411/IC416
