Oilfield 2 3/8" - 20" Safety Clamp Type MP R MP M API7K
Model | Size Range(in) |
MP-S | 2-7/8" to 5" |
MP-R | 4-1/2" to 10-1/2" |
MP-M | 10-1/2" to 15-7/8" |
MP-L | 15-7/8" to 19-3/8" |
MP-XL | 19-3/8" to 30-1/2" |
Safety Clamp Type MP are necessary tools for handling drill collars, flush joint pipes and small shoulder pipes.They could adjust pipes of different sizes by changing the quantity of chain links. They are designed and manufactured according to API Spec 7K. Specification for drilling and well servicing equipment.
Model | Size Range(in) | Total Number of Links |
MP-S | 2 7/8-4 1/8 4-5 | 7 8 |
MP-R | 4 1/2-5 5/8 | 7 |
5 1/2-7 | 8 | |
6 3/4-8 1/4 | 9 | |
8-9 1/4 | 10 | |
9 1/4-10 1/2 | 11 | |
MP-M | 10 1/2-11 1/2 | 12 |
11 1/2-12 1/2 | 13 | |
12 1/2-13 5/8 | 14 | |
13 5/8-14 3/4 | 15 | |
14 3/4-15 7/8 | 16 | |
MP-L | 15 7/8-17 | 17 |
17-18 1/8 | 18 | |
18 1/8-19 3/8 | 19 | |
MP-XL | 19 3/8-20 3/8 | 19 |
20 3/8-20 1/2 | 20 | |
21-22 5/8 | 21 | |
22 5/8-23 3/4 | 22 | |
23 3/4-24 7/8 | 23 | |
24 7/8-26 | 24 | |
26-27 1/8 | 25 | |
29 3/8-30 1/2 | 28 |

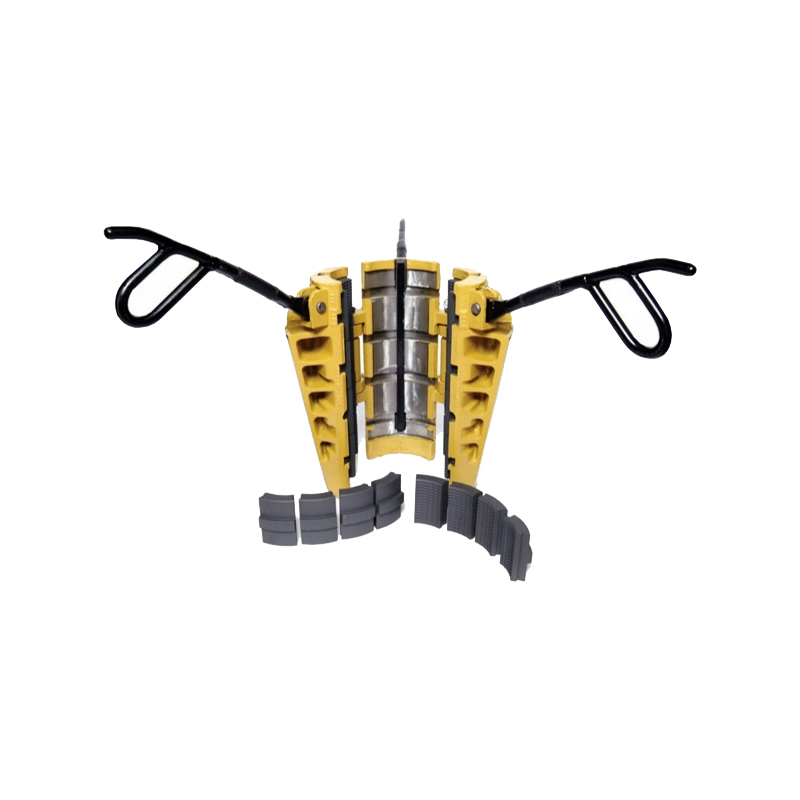

SD Rotary Slips can accommodate drill pipe from 2 3/8 to 5 1/2 inches (60.3-139.7mm)O.D. They are classified as type Short (SDS), Medium (SDML) and Extra Long (SDXL) according to handling length. SDS slips are designed for shallow hole drilling, SDML slips are the perfect choice for all medium depth drilling, SDXL slips are designed for deep drilling.
Type | Pipe OD | Inserts | Weight(kg) | ||||
in | mm | Part No. | QTY | ||||
SDS | 3 1/2 | 2 3/8 | 2 3/8 | 60.3 | 2160 | 24 | 71 |
2 7/8 | 2 7/8 | 73 | 2161 | 24 | 68 | ||
3 1/2 | 3 1/2 | 88.9 | 2162 | 24 | 66 | ||
4 1/2 | 3 1/2 | 3 1/2 | 88.9 | 2163 | 36 | 83 | |
4 | 4 | 101.6 | 2164 | 36 | 80 | ||
4 1/2 | 4 1/2 | 114.3 | 2165 | 36 | 76 | ||
SDML | 3 1/2 | 2 3/8 | 2 3/8 | 60.3 | 2160 | 30 | 98 |
2 7/8 | 2 7/8 | 73 | 2161 | 30 | 95 | ||
3 1/2 | 3 1/2 | 88.9 | 2162 | 30 | 92 | ||
4 1/2 | 3 1/2 | 3 1/2 | 88.9 | 2163 | 45 | 105 | |
4 | 4 | 101.6 | 2164 | 45 | 101 | ||
4 1/2 | 4 1/2 | 114.3 | 2165 | 45 | 96 | ||
5 | 4 | 4 | 101.6 | 2168 | 45 | 103.5 | |
4 1/2 | 4 1/2 | 114.3 | 2166 | 45 | 100 | ||
5 | 5 | 127 | 2167 | 45 | 95 | ||
5 1/2 | 4 1/2 | 4 1/2 | 114.3 | 2168 | 45 | 101 | |
5 | 5 | 127 | 2169 | 45 | 97 | ||
5 1/2 | 5 1/2 | 139.7 | 2170 | 45 | 92 | ||
SDXL | 4 1/2 | 3 1/2 | 3 1/2 | 88.9 | 2163 | 54 | 118 |
4 | 4 | 101.6 | 2164 | 54 | 114 | ||
4 1/2 | 4 1/2 | 114.3 | 2165 | 54 | 108 | ||
5 | 4 | 4 | 101.6 | 2168 | 54 | 116 | |
4 1/2 | 4 1/2 | 114.3 | 2166 | 54 | 112 | ||
5 | 5 | 127 | 2167 | 54 | 106 | ||
5 1/2 | 4 1/2 | 4 1/2 | 114.3 | 2168 | 54 | 116 | |
5 | 5 | 127 | 2169 | 54 | 111 | ||
5 1/2 | 5 1/2 | 139.7 | 2170 | 54 | 105 |
Hebel Xinhuafa Petroleum Machinery Co. LTD was established in 2006,with 5000m2 plant.The company focuses on R&D of mud pump fittings and several R&D results were horned with awards as well as patented for invention. The company is engaged in product design, manufacturing and service on all the quality oilfield replacement parts, including mud pump fluid end parts including Fluid end modules, liners, pistons, valves,&seats, extension rods, piston rods, valve covers etc.
The company holds a professional technical team and is equipped with advanced machineries,improving the technical skills and updating product quality. Our products are certified by ISO9001 quality control. We supply products not only our oilfields company of domestic, but also dozens of countries all over the world, such as USA, Russia, Indonesia and Iran. With several years' persistence, we are widely accepted as a professional supplier of high quality mud pump cylinder liners and other parts in fluid end modules.
Yingpai Drilling Machinery is professional manufacturer and exporter of Mud Pump & Parts for 20 years. And we can supply you whole set on flat which suitable for oilfields in any worse environment outside. All are tested and can work well stable without monitoring. Parts also can be supplied to all pumps. All items are manufactured to API 7K quality standards. Contact us to get more details of SD Rotary Slip For Oil Drilling.
Our advantage | Deep engaged in the industry for 16 years. |
Short delivery time, fast delivery. | |
Integration of industry and trade, stable quality, super cost-effective, annual output of 100,000 +. | |
Sound quality management system and perfect after-sales service system. |
Hebei Xinhuafa Petroleum Machinery Co.,Ltd focuses on R&D of mud pump fittings and several R&D results were horned with awards as well as patented for invention. The company is engaged in product design, manufacturing and service on all the quality oilfield replacement parts, including mud pump fluid end parts including Fluid end modules, liners, pistons, valves,&seats, extension rods, piston rods, valve covers etc. |
Company | Hebel Xinhuafa Petroleum Machinery Co. LTD |
Address | Chang'an District,Shijiazhuang,Hebei,China |
Contacts | Anne Yang |
+8615633571027 |
