Home » Products » Drilling Rig Mud Circulation System » Solid Control Equipment » Shale Shaker Screen » Frame Flat Swaco Mongoose Vibrating Shale Shaker Screens With Stainless Steel Wire Mesh Screen

PRODUCT CATEGORY

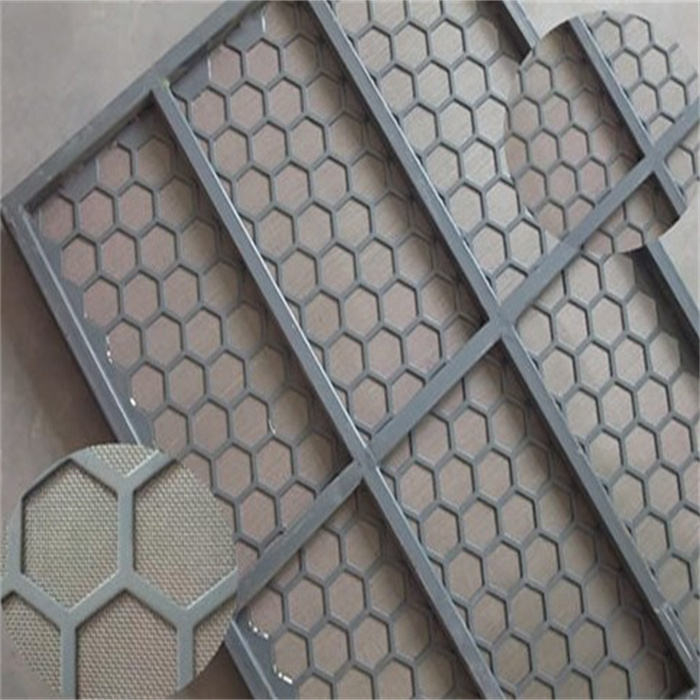

Frame Flat Swaco Mongoose Vibrating Shale Shaker Screens With Stainless Steel Wire Mesh Screen

Frame Flat Swaco Mongoose Vibrating Shale Shaker Screens With Stainless Steel Wire Mesh Screen

Shaker screen panels are constructed with 2 or 3 304 or 316 stainless steel wire cloth layers with a steel backing plate and steel frame combined together.because of different mesh size and hole size,get an better filtering effect.


SKU:
Availability:



Inquire PDF Export

Product Description

Product Description

Shaker screen panels are constructed with 2 or 3 304 or 316 stainless steel wire cloth layers with a steel backing plate and steel frame combined together.because of different mesh size and hole size,get an better filtering effect.

The bottom high strength steel frame,supporting bar with the moderate tension screen cloth,combined together, infinitely enhance the screen intensity and endurance, get an better filtering effective. Mesh sizes ranging from 20 to 325,specially customized.

Steel backing plate forms usually include hexagonal, rectangular,square,diamond and so on. the whole cloth is divided into independent small surfaces,prevent the part excessive expansion damaged.,with a special rubber plug together to repair damage, can save the time to replace the screen, Increase the efficiency and reduce the cost.

Product Name	shale shaker screen/oil vibrating sieving mesh/ mud mesh screen
Material	stainless steel 304 316 and 316L
Hole Shape	Hexagonal, rectangular, square
Layer	2-3 layers
Filter Mesh Cloth Ranges	20-400mesh
Common Size of the Screen Panels	560×1800mm, 600×1800mm, 630×1250mm, 695×1050mm, 700×1050mm, 760×1830mm, 763×1115mm, 800×1250mm.
Application	Replacement shaker screen, Oil and petroleum drilling filter screen

shaker screen panels are constructed with two or three 304 or 316 stainless steel wire cloth layers with a steel backing plate and steel frame combined together. Because of different mesh size and hole size, get a better
filtering effect.

Screen Type: Flat Shale Shaker Screen, Wave Shaker Screen, Hook Strip Soft Screen, Hook Strip Flat Screen, Steel Frame Screen, Composite Frame Screen.

They are mostly applied to the shale shakers with wedge fastening equipment.

flat shaker screen

Wave Shaker Screen

steel frame shaker screen

composite material shaker screen

Shale Shaker Screens With Vibrating Stainless Steel Wire Mesh Screen

FAQ

Q YP Petro manufactures power end components including extension rods, crossheads, crosshead pins, cross pin baffles, upper and lower guide plates, packing boxes, seal rings, and oil seal lips. We also supply crankshaft assemblies, gear sets, and connecting rods for major mud pump models.

A
Yes. YP Petro accepts OEM/ODM orders based on customer drawings, technical specifications, or reverse-engineered samples. Our engineering team can confirm feasibility, recommend material upgrades, and provide quotations within 3-5 working days.
Q What power end parts does YP Petro manufacture?

A
YP Petro manufactures power end components including extension rods, crossheads, crosshead pins, cross pin baffles, upper and lower guide plates, packing boxes, seal rings, and oil seal lips. We also supply crankshaft assemblies, gear sets, and connecting rods for major mud pump models.
Q What other fluid end parts does YP Petro supply?

A
In addition to cylinder liners, YP Petro supplies a complete range of fluid end parts, including pistons, piston rubber, valve bodies, valve seats, valve rubber, liner seals, cylinder head gaskets, valve cover seals, piston rods, clamp assemblies, valve covers, cylinder heads, flange heads, cylinder flanges, cylinder covers, and inhalation capsules. We also supply dampener diaphragms, pressure gauges, fittings, relief valves, and exhaust valves.
Q What size range of cylinder liners does YP Petro offer?

A
YP Petro cylinder liners are available in metric sizes from 100mm to 180mm and imperial sizes from 3" to 7.5" (including 3", 3.5", 4", 4.5", 5", 5.5", 6", 6.25", 6.5", 6.75", 7", 7.25", 7.5"). Custom sizes are available on request.
Q What is the difference between bi-metal, ceramic, chrome-plated, and high-frequency quenching cylinder liners?

A
| Type | Inner Material | Hardness | Service Life | Best For |
| Bi-Metal | High-chromium cast iron | HRC 62 | 800h+ | General high-pressure, abrasive drilling |
| Ceramic | Al₂O₃ or Zirconia | HRC 80+ | 1500h+ | Extreme abrasion, high-sand formations |
| Chrome-Plated | Hard chrome coating | HRC 55 | 300-400h | Moderate conditions, budget operations |
| High-Frequency Quenching | Quenched alloy iron | HRC 50 | 200-300h | Light-duty, low-cost applications |
