PRODUCT CATEGORY

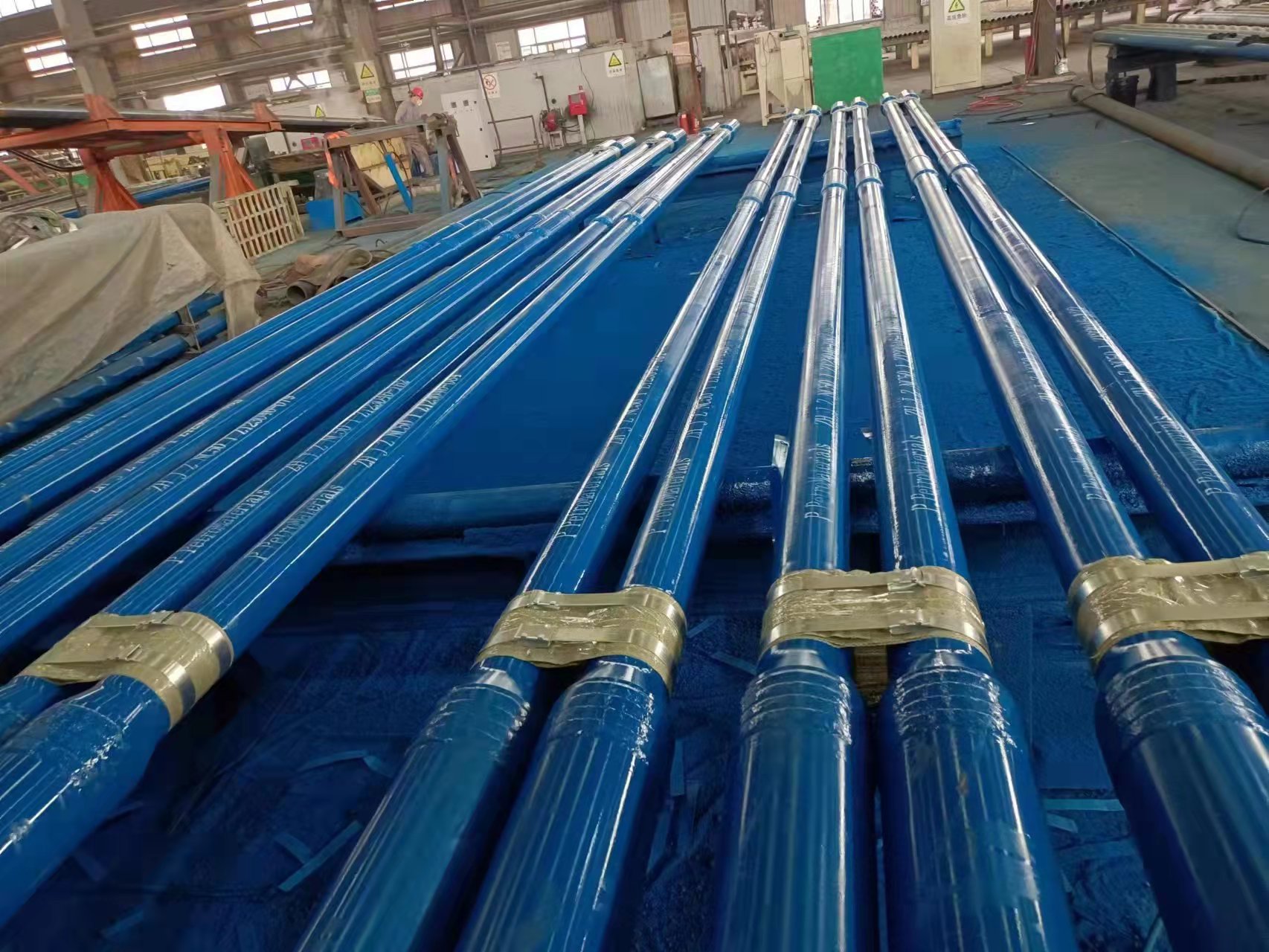

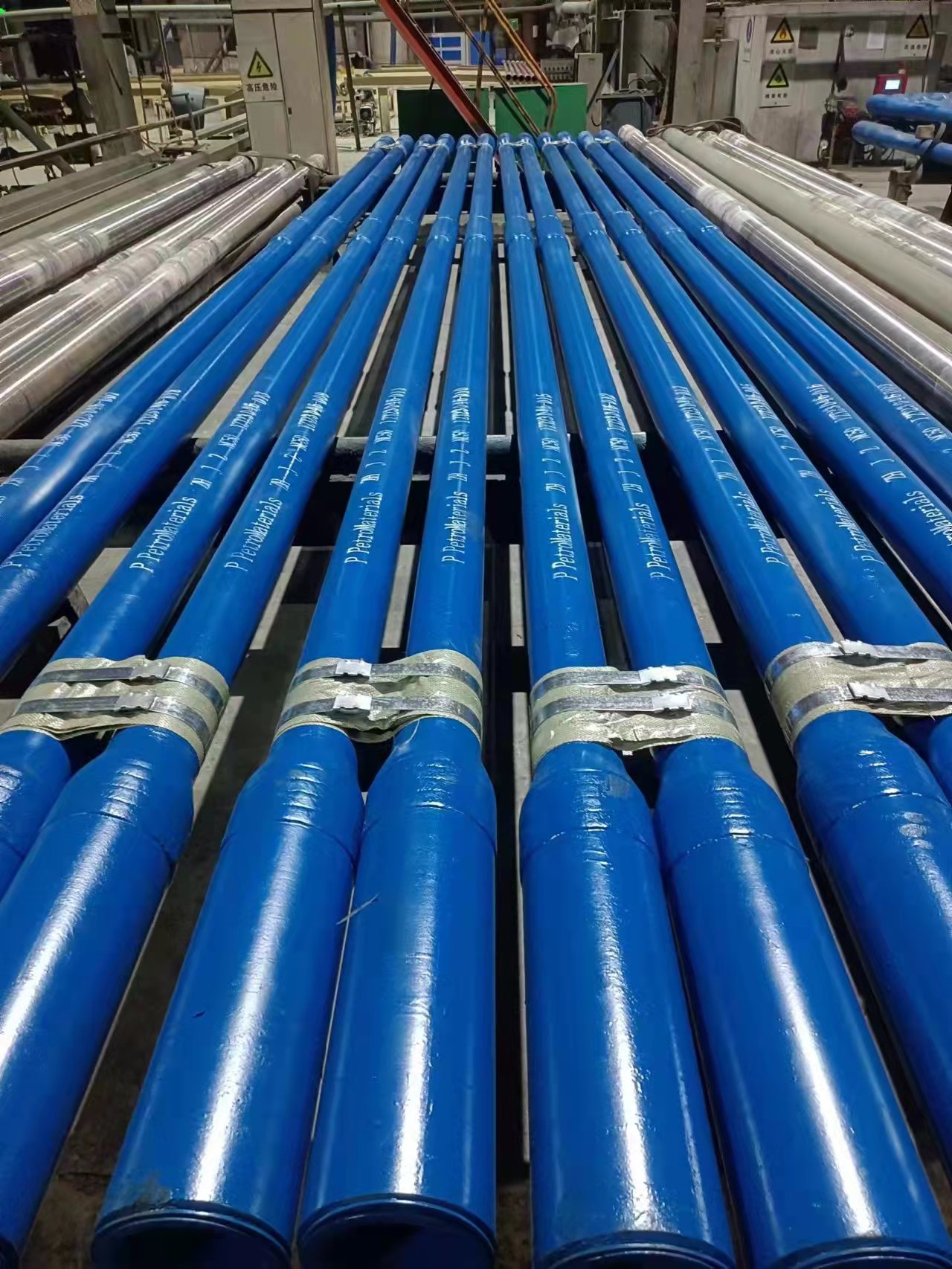

Heavy Weight Drill Pipe

Steel Grade for Integral HWDP : AISI 4145HM
Steel Grade for Welded HWDP : AISI 1340 pipe body, AISI 4140HM tool joint
Product range : 2 3/8"OD to 6-5/8"OD
Length : Range 1, 2 and 3,
Connections : All API or high performance tool joints (DSHTTM, PMDSTM) , PAC and American Open Hole (AOH)


Availability:



Inquire Add to Basket

Product Description

Size		Tube				Tool Joint					Min Drift Dia.
		Tube ID	Center Upset Dia.	Upset Length	Max Elevator Upset	Connection Number	Tool Joint OD	Tool Joint ID	Pin Length	Box Length
A		B	C	D	E		G	F	I	H
in	mm	in	in	in	in		in	in	in	in
3 1/2	88.9	2 1/4	4	25	3 7/8	NC38	4 3/4 (4 7/8) (5)	2 1/4	27	21	2
		2 1/16						2 1/16			1 13/16
4	101.6	2 1/2	4 1/2	25	4 3/16	NC40	5 1/4	2 1/2	27	21	2 1/4
		2 9/16						2 9/16			2 5/16
4 1/2	114.3	2 11/16	5	25	4 11/16	NC46	6 1/4	2 11/16	27	21	2 7/16
		2 3/4						2 3/4			2 1/2
		2 13/16						2 13/16			2 9/16
5	127.0	3	5 1/2	25	5 1/8	NC50	6 5/8	3	27	21	2 3/4
5 1/2	139.7	3 1/4	6	25	5 11/16	5 1/2FH	7 (7 1/4) (7 1/2)	3 1/4	27	21	3
		3 3/8						3 3/8			3 1/8
		3 7/8						3 7/8			3 5/8
		4						4			3 3/4
5 7/8	149.2	4	6 3/8	25	6	5 1/2FH	7	4	27	21	3 3/4
6 5/8	168.3	4	7 1/8	25	6 15/16	6 5/8FH	8 (8 1/4) (8 1/2)	4	27	21	3 3/4
		4 1/2						4 1/2			4 1/4
		5						5			4 3/4

heavy weight drill pipe
