Mud Pump valve Parts valve Rubber

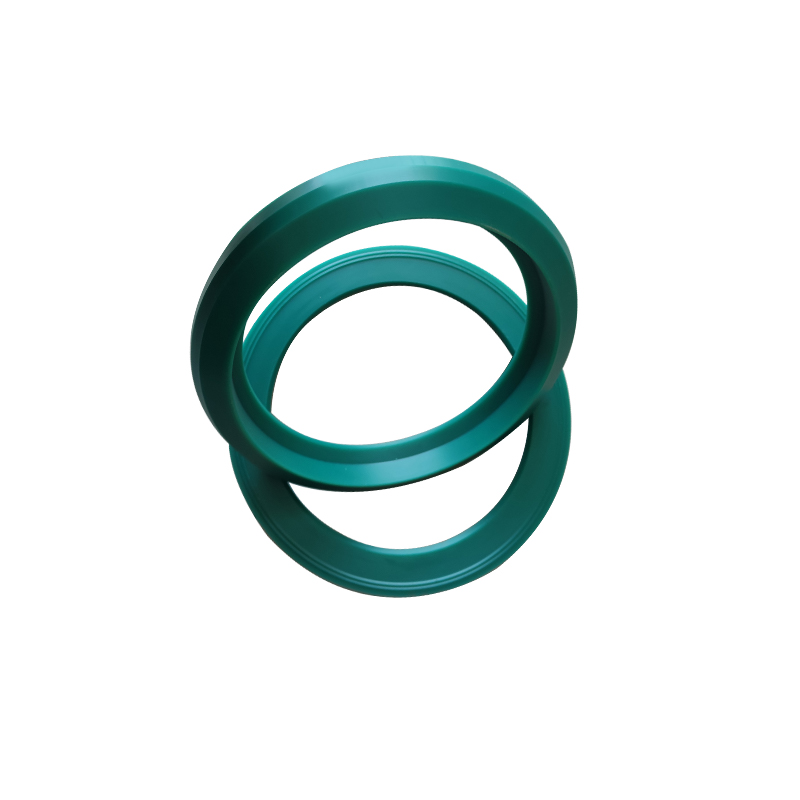

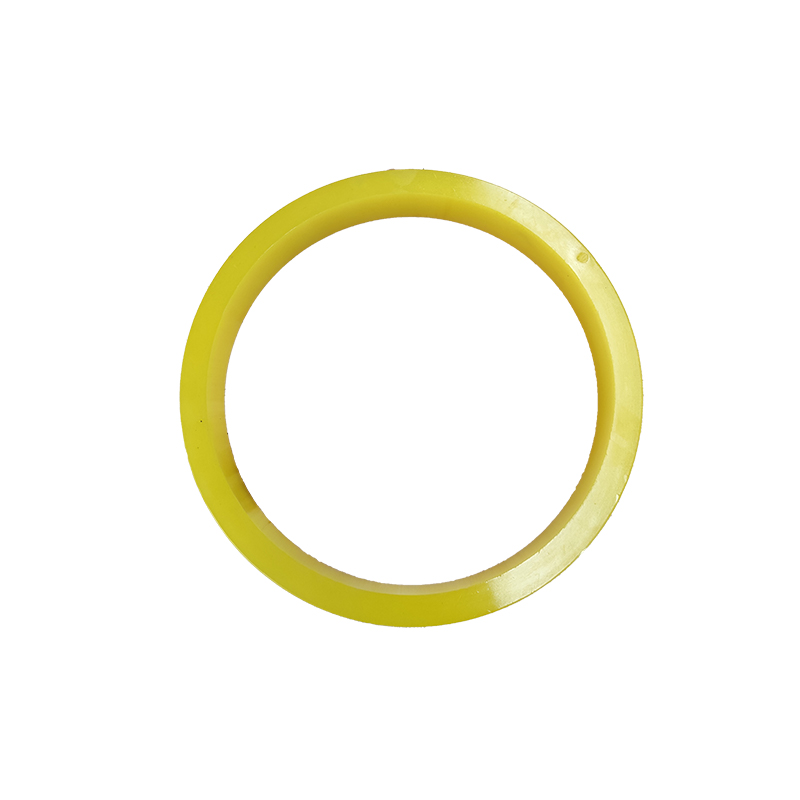

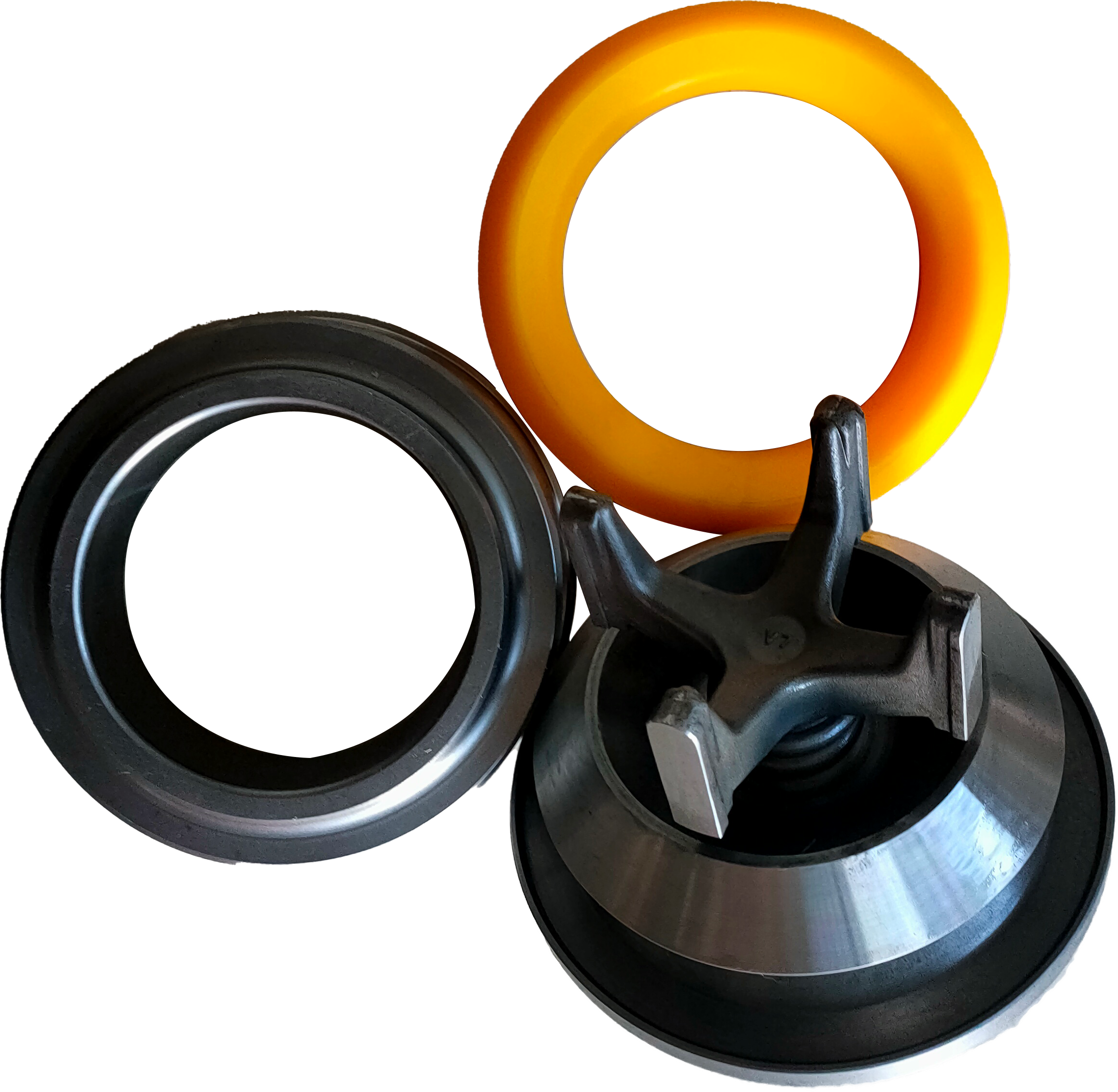

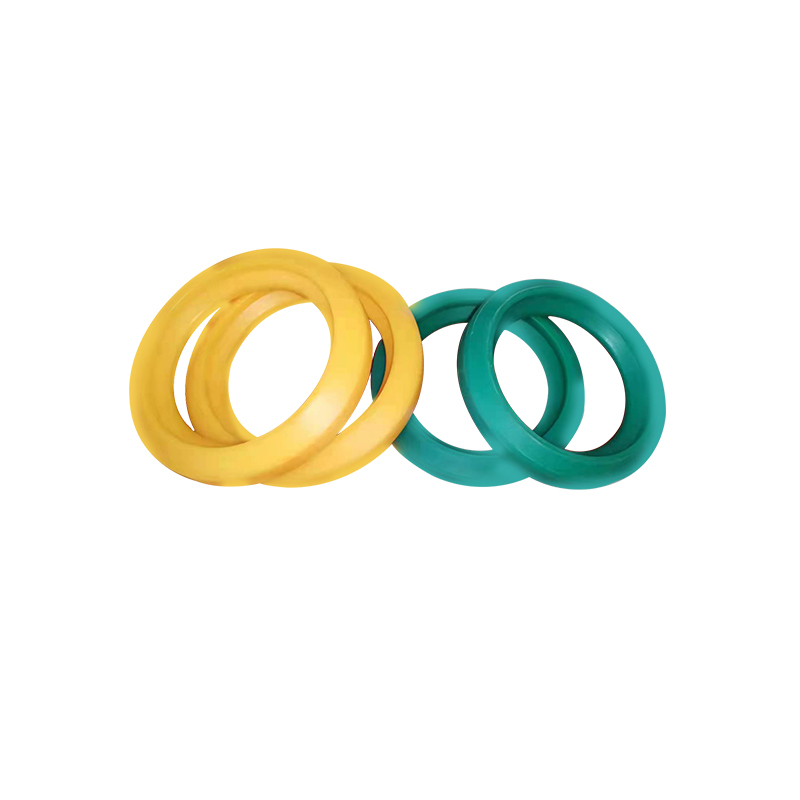

Valves&Seats: The valve assembly consists of the valve and valve seat. Valve and valve seat are made of one-piece premium forged alloy steel, and follow the manufacturing process specification directly to assure the good finish, accurate size. With the advanced heat treatment it features high ductility, high strength .The seal of valve body is made of polyurethane or synthetic rubber and has high wear resistance.
  • all

  • hebei yingpai

  • 841391000

SKU:
Availability:

PDF Export

wechat sharing button
facebook sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Product Description

Description Temperature Range Pump Pressure Abrasion Drilling Fluid
NBR

-40~100 °C

5000PSI(35Mpa)

Not Bad

Water base

-40~210 °F

polyurethane

-40~85 °C

5000PSI(35Mpa)

Excellent

Water base & Oil base

-40~185 °F

HNBR

-50~150 °C

7500PSI(52Mpa)

Good

Water base & Oil base


RELATED PRODUCTS
Valve Assembly Mud Pump Valves and Valve Seats for F-800, F-1300, Pz-8, Pz-9, Pz-10, 12p160 etc Gardner Denver, Emsco, Bomco, Tsc, Oil Well, MP, Bomco

Spare Parts for Drilling Machine/Mud Pump Parts/Ceramic Liner
Spare Parts for Drilling Machine/Mud Pump Parts/Ceramic Liner
Spare Parts for Drilling Machine/Mud Pump Parts/Ceramic Liner

Available for Mud Pump Models

BOMCO F-500 F-800 F-1000 F-1300 F-1600 F-1600L F-2200L
LANSHI F-500 F-500 F-500 F-1300 F-1600/F-1600L F-1600H

3NB500C 3NB1000C 3NB1300C 3NB1600



P-800 P-1000 P-1300 P-1600 P-2200

HONGHUA HHF-500 HHF-800 HHF-1000 HHF-1300 HHF-1600 HHF-1600HL HHF-2200HL
RONGSHENG (RS) RSF-500 RSF-800 RSF-1000 RSF-1300 RSF-1300L RSF-1600 RSF-1600HL
RG RGF-500 RGF-800 RGF-1000 RGF-1300 RGF-1600

QINGZHOU (QZ) QZF-500 QZF-800 QZF-1000 QZF-1300 QZF-1600


QZ3NB-800 QZ3NB-1000 QZ3NB-1300 QZ3NB-1300A QZ3NB-1600

RONGLI (RL) RL-F500 RL-F800 RL-F1000 RL-F1300 RL-F1600 RL-F2200

RL-3NB350 RL-3NB500(A) RL-3NB600 RL-3NB800 RL-3NB1000 (A/D) RL-3NB1300 (A/D) RL-3NB1600
TSC WF-400 WF-450 WF-700 WF-1000 WF-1600

EMSCO F-350/500 F-650 F-800 F-1000 F-1300 F-1600

FA 1300 FB-1300 FA-1600 FB-1600 DB-550 D-300 D-700
NATIONAL 8-P-80 9-P-100 10-P-130 12-P-160 14-P-220

OILWELL A-600-PT A-850-PT A-1100-PT A-1400-PT A-1700-PT


A-350 A-560 A-650 A-850 A-1100 A-1400 A-1700
IDECO T-500 T-800 T-1000 T-1300 T-1600

WIRTH TPK-1000 TPK-1300 TPK-1600 TPK-2000 TPK-2200

ELLS WILLIAMS E-447 E-2200 W440 W446


GARDNER DENVER PZ-7 PZ-8 PZ-9 PZ-10 PZ-11 PZ-L PA-8

FY-FXD FO-FXO FD-FXX FG-GXG


RUSSIA PUMPS UNBT 650 UNBT 950 UNBT 1180L UNB 600 NBT 600 ETC.

company profile:

Chinese Manufacturer for Mud Pump/ Mud Pump Spare Parts/Bomco Mud Pump /Pump Part/Liner Flange

Chinese Manufacturer for Mud Pump/ Mud Pump Spare Parts/Bomco Mud Pump /Pump Part/Liner Flange

Hebel Xinhuafa Petroleum Machinery Co. LTD was established in 2006,with 5000m2 plant.The company focuses on R&D of mud pump fittings and several R&D results were horned with awards as well as patented for invention. The company is engaged in product design, manufacturing and service on all the quality oilfield replacement parts, including mud pump fluid end parts including Fluid end modules, liners, pistons, valves,&seats, extension rods, piston rods, valve covers etc.
The company holds a professional technical team and is equipped with advanced machineries,improving the technical skills and updating product quality,


Our products are certified by ISO9001 quality control. We supply products not only our oilfields company of domestic, but also dozens of countries all over the world, such as USA, Russia, Indonesia and Iran. With several years' persistence, we are widely accepted as a professional supplier of high quality mud pump cylinder liners and other parts in fluid end modules.

We supply mud pump spare parts like mud pump liner including zirconia ceramic liner and high chrome bimetallic liner, Mono-metal Liner, fluid end module, valve and seats, piston, piston rod, pony rod etc. parts for mud pump, we can also customize and machine as your drawing.




Chinese Manufacturer for Mud Pump, Plunger Pump and Spare Parts

Our advantage Deep engaged in the industry for 16 years.
Short delivery time, fast delivery.
Integration of industry and trade, stable quality, super cost-effective, annual output of 100,000 +.
Sound quality management system and perfect after-sales service system.
