Rated Horsepower: 2,200 HP
Rated Pump Speed: 105 SPM
Maximum Liner Size by Stroke Length: 9" x 14"
Suction Connection: 12"
Discharge Connection: 5-1/8" 5,000 psi Flange
Gear Ratio: 3.512:1
Valve Pot: API #8
Approximate Weight: 64,815 lbs

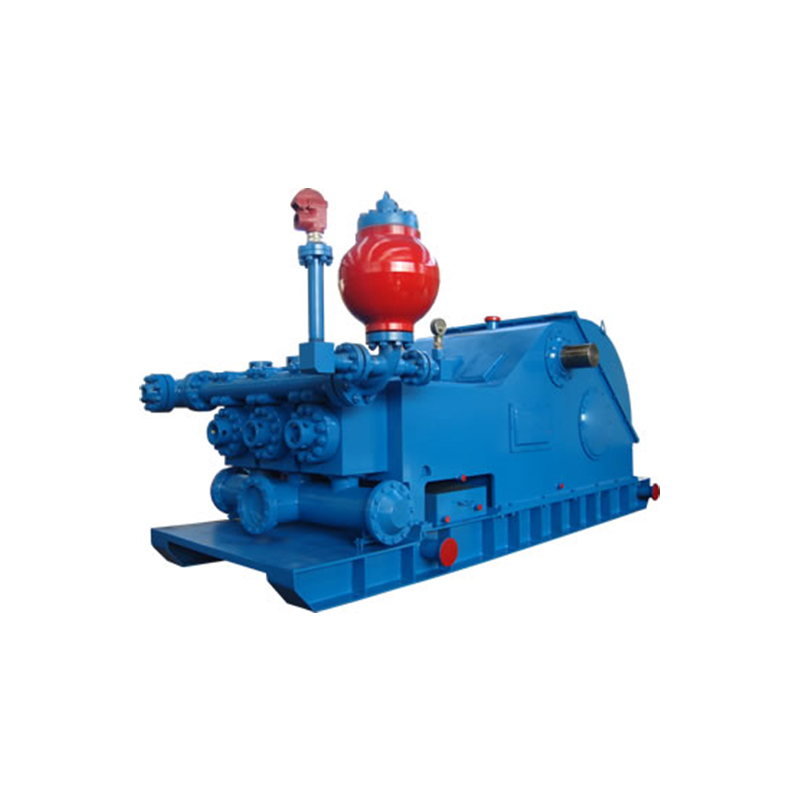

F-2200 Triplex Mud Pumps (API-7K)
F-2200 Triplex Mud Pumps (API-7K)
Specifications
Rated Horsepower: 2,200 HP
Rated Pump Speed: 105 SPM
Maximum Liner Size by Stroke Length: 9" x 14"
Suction Connection: 12"
Discharge Connection: 5-1/8" 5,000 psi Flange
Gear Ratio: 3.512:1
Valve Pot: API #8
Approximate Weight: 64,815 lbs
Liner Size, inches | 9 | 8-1/4 | 7-1/2 | 7 | 6 | 5-1/2 | |
Rated Pressure, psi | 2,760 | 3,310 | 4,040 | 4,505 | 5,000 | 5,000 | |
Pump Speed SPM | Input Power HP | Displacement, GPM | |||||
105 | 2,200 | 1,231 | 1,026 | 840 | 754 | 524 | 456 |
90 | 1,886 | 1,055 | 880 | 720 | 646 | 449 | 391 |
80 | 1,676 | 938 | 782 | 640 | 574 | 399 | 347 |
70 | 1,467 | 820 | 684 | 560 | 503 | 349 | 304 |
60 | 1,257 | 703 | 586 | 480 | 431 | 299 | 261 |
50 | 1,048 | 586 | 489 | 400 | 359 | 249 | 217 |
Volume/Stroke, gallons | 11.72 | 9.77 | 8.00 | 7.18 | 4.99 | 4.34 | |
F-2200 Triplex Mud Pumps (API-7K)
Specifications
Rated Horsepower: 2,200 HP
Rated Pump Speed: 105 SPM
Maximum Liner Size by Stroke Length: 9" x 14"
Suction Connection: 12"
Discharge Connection: 5-1/8" 5,000 psi Flange
Gear Ratio: 3.512:1
Valve Pot: API #8
Approximate Weight: 64,815 lbs
Liner Size, inches | 9 | 8-1/4 | 7-1/2 | 7 | 6 | 5-1/2 | |
Rated Pressure, psi | 2,760 | 3,310 | 4,040 | 4,505 | 5,000 | 5,000 | |
Pump Speed SPM | Input Power HP | Displacement, GPM | |||||
105 | 2,200 | 1,231 | 1,026 | 840 | 754 | 524 | 456 |
90 | 1,886 | 1,055 | 880 | 720 | 646 | 449 | 391 |
80 | 1,676 | 938 | 782 | 640 | 574 | 399 | 347 |
70 | 1,467 | 820 | 684 | 560 | 503 | 349 | 304 |
60 | 1,257 | 703 | 586 | 480 | 431 | 299 | 261 |
50 | 1,048 | 586 | 489 | 400 | 359 | 249 | 217 |
Volume/Stroke, gallons | 11.72 | 9.77 | 8.00 | 7.18 | 4.99 | 4.34 | |
