Overview

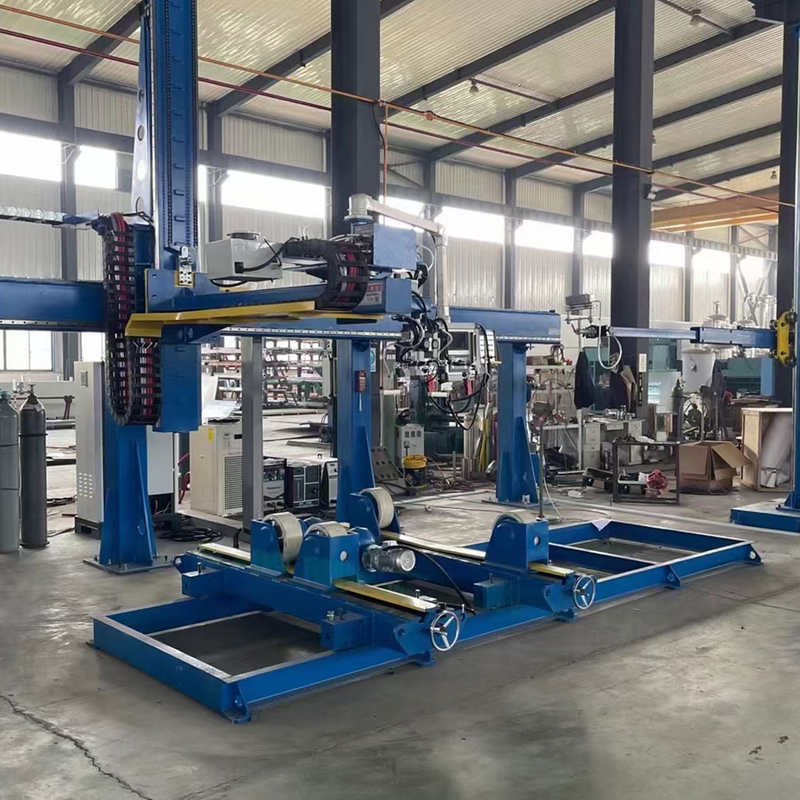

Side beam series tooling is mainly used to complete the cylinder workpiece circumferential seam or workpiece straight seam welding. It has the characteristics of small footprint and convenient workpiece hoisting. Generally, it must be connected with the turntable and workpiece support frame. Tooling or roller frame is used together. It is not recommended to use this equipment for workpieces with suspended wall thickness. The commonly used welding process method isMIG/MAGorPAW,TIG,SAW. It is suitable for longitudinal seam welding of stainless steel welded pipe, container and tank body, etc.
Performance Characteristics
It is mainly used for straight seam welding of large diameter pipes, cylinders and other workpieces.
can be combined with the roller frame, head frame and other tooling to achieve the workpiece circumferential seam welding.
Suitable for welding of carbon steel, stainless steel and other materials.
According to the welding process requirements, can choose to choosePAW,TIG,MIG/MAGwelding process method.
specific covers an area of small, convenient workpiece hoisting and so on.
