UNB 600 Ceramic Cylinder Liner/Cylinders/Oil Drilling Mud Pump Liner/Bi-Metal Sleeve/Pump Part/China Manufacturer

UNB 600 Ceramic Cylinder Liner/Cylinders/Oil Drilling Mud Pump Liner/Bi-Metal Sleeve/Pump Part/China Manufacturer

Model:
UNB 600
Brand:
hebei yingpai
Code:
841391000


SKU:
Availability:



Inquire PDF Export

Product Description

Product Description

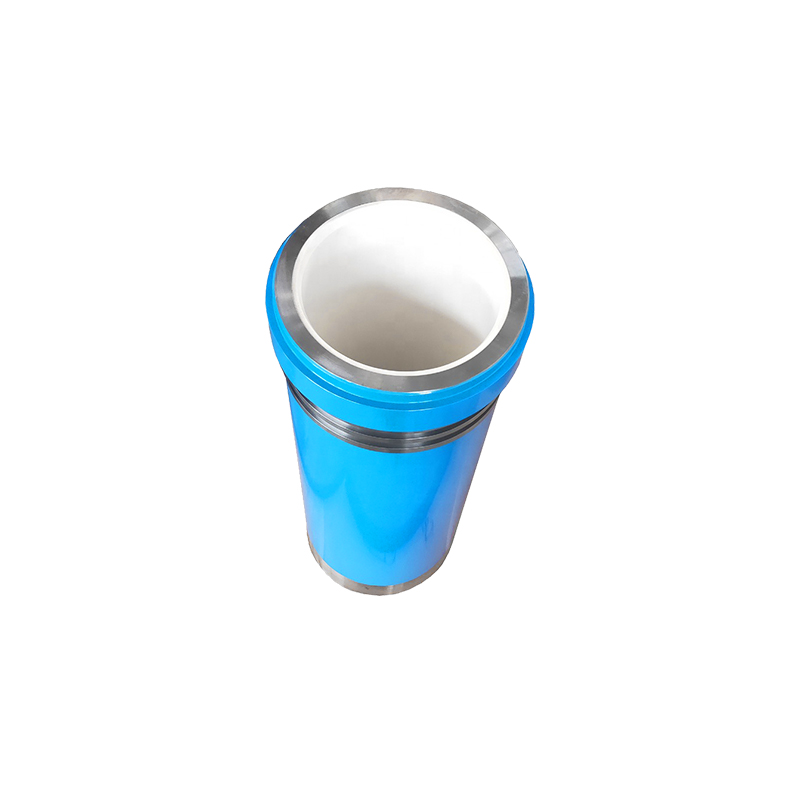

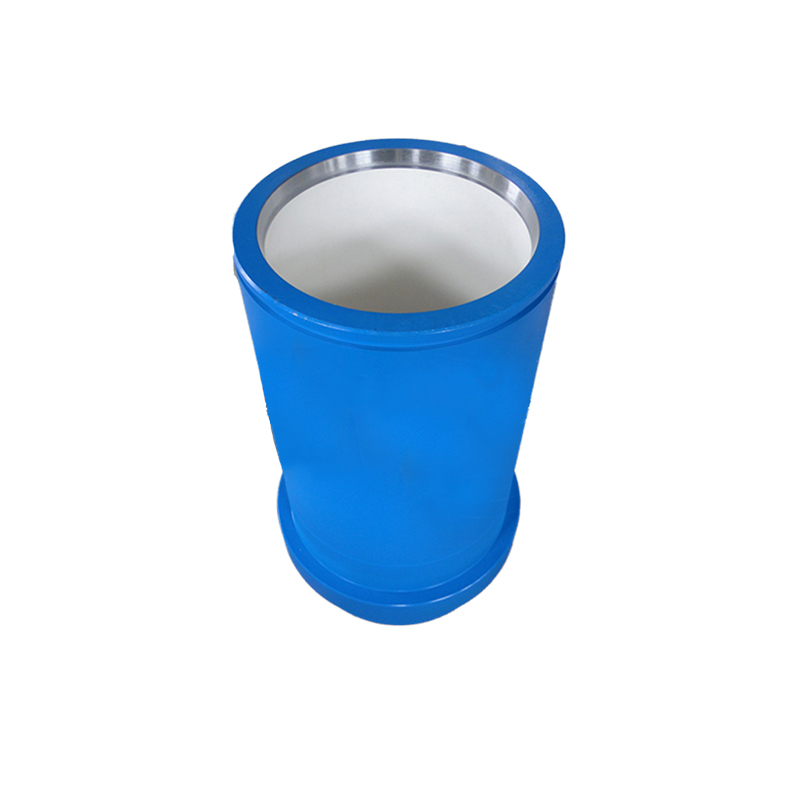

The sleeve of this liner is made of zirconia, with superior service life than regular steel sleeve liner, less rig downtime and lowest cost of per operating hour.

1. The zirconium ceramic liners can not only adapted to some tough environment such as deep oil reservoir, hard stratum and severe earthiness, but also can be used for offshore oil and natural gas exploitation as well.

2.Compared with bi-metal liner, the service life of ceramic liner is 5-10 times higher. Its maximum and minimum service life can reach more than 4，000 hours.

3. The zirconium ceramic liners which has used the phase transformation toughen technology has various advantages such as wear-resistance, erosion-resistance, high-pressure-resistance, high-temperature-resistance, high strength and high hardness.

4.The cost of shipment, maintenance, labor and storage in the drilling works can be reduced.

Mud Pump Cylinder Liner F800/F1000/F1300/F1600/F-2200hl

Drilling Mud Pump Parts

BOMCO Series: F500/F800/F1000/F1300/F1600/F1600HL/F2200HL.

HH Series: HHF500/HHF800/HHF1000/HHF1300/HHF1600/HHF2200

Rongsheng Series: RSF500/RSF800/RSF1000/RSF1300/RSF1600

Qingzhou Series: QZ3NB500,QZ3NB800,QZ3NB1000,QZ3NB1300A,QZ3NB1600.

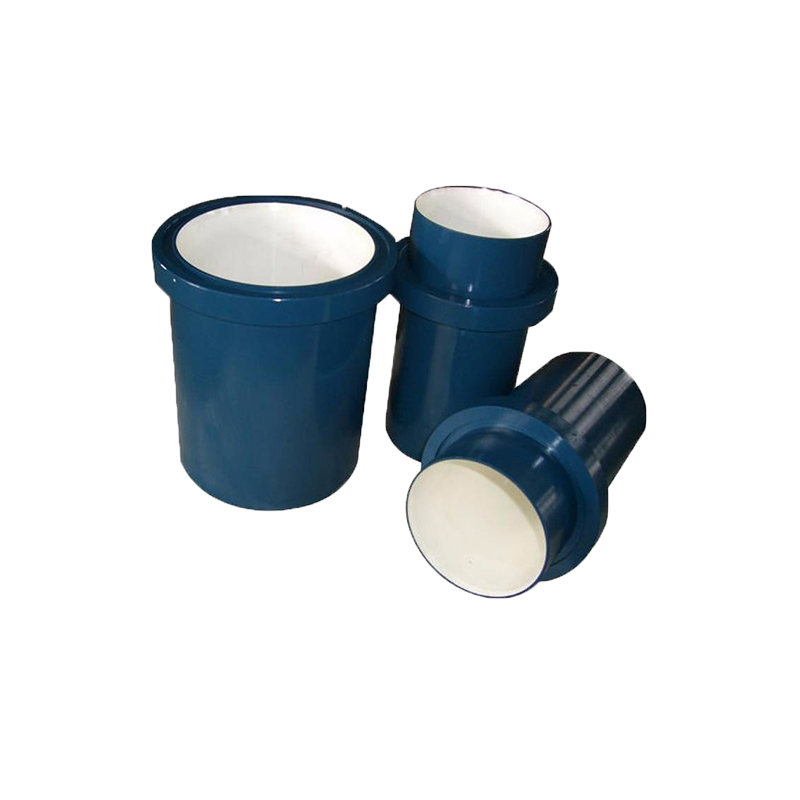

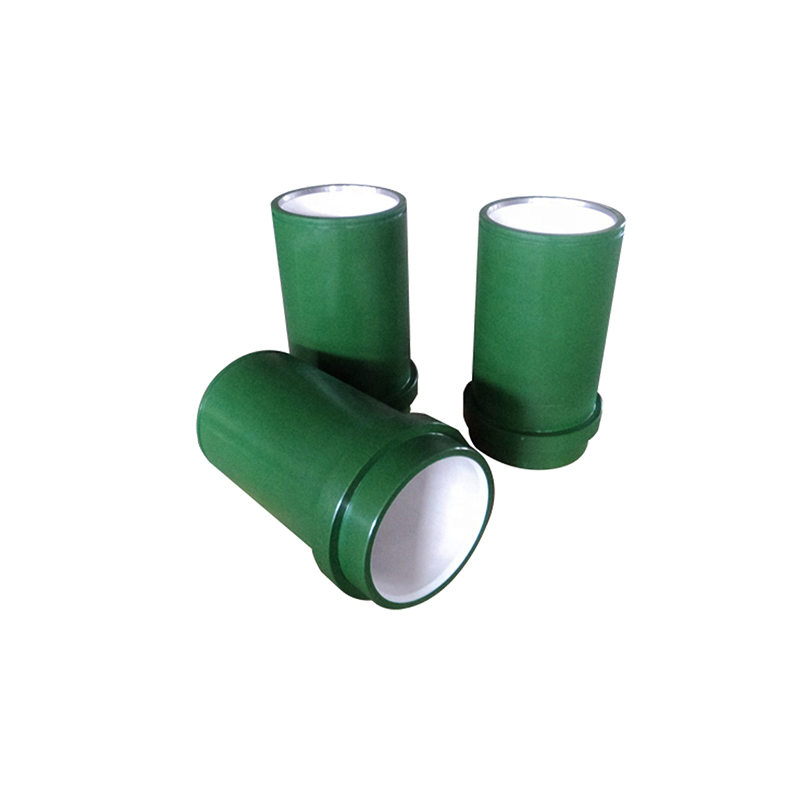

Mud pump Cylinder Liner

Fluid End: liner, piston rubber, valve body, valve seats, valve rubber, liner seals, cylinder head gasket, valve cover seals, piston rod, clamp assembly, valve cover, cylinder head, flange head, cylinder flange, cylinder cover, inhalation capsules, etc.

Power End: extension rod, crosshead, crosshead pin, cross pin baffle, upper and lower guide plate, packing boxes, seal ring, oil seal lips

Dampener: Dampener diaphragm, pressure gauges, fittings, tees, angle type valve, relief valve, exhaust valve.

Other Accessories: JA-3 valve assembly, the small piston, small rod, cushion, 2S gear pumps, 32PL spray pump.

Advantages of Mud pump Cylinder Liner

The bimetal liner offers long service life of about 800 hours, which is 2 to 3 times the lifetime of common ones in severe environment.

Specification of Mud pump Cylinder Liner

Linear for Mud Pump Model List
Bomco/Emsco	F-1300	FB-1300	F-1600	FB-1600	F1600HL	F2200HL	F-1000	F-800	F-500
National	7P50	8P80	9P100	10P130	12P160	14P220
Gardner Denver	PZ7	PZ8/9	PZ10/11	FK-FXK	FY-FXX	FG-FXG	FF-FXP	KG-KXG	FQ-FXQ
Oilwell	A-850-PT	A-1100-PT	A-1400-PT	A-1700-PT
Russian	UNBT-950	UNB-600	8T-650	UNBT1180L	3PN1600
Ideco	T-500	T-800	T-1000	T-1300	T-1600
Wirth	TPK1000	TPK1600	TPK2000
Wirth	TPK1000	TPK1600	TPK2000
LS National	3NB-500C	3NB1000C	3NB1300C	3NB1600	3NB800	3NB1300A
Drillmec	9T1000	12T1600
OTHER BRANDS: HONGHUA, QINGZHOU, WIRTH, OPI, ELLIS WILLIAMS, WILSON, GASO, SKYTO, BREWSTER, WETHERFORD

ceramic cylinder liner ceramic sleeve oil drilling mud pump mud pump spare parts oil field machine parts china manufacturer

FAQ

Q YP Petro manufactures power end components including extension rods, crossheads, crosshead pins, cross pin baffles, upper and lower guide plates, packing boxes, seal rings, and oil seal lips. We also supply crankshaft assemblies, gear sets, and connecting rods for major mud pump models.

A
Yes. YP Petro accepts OEM/ODM orders based on customer drawings, technical specifications, or reverse-engineered samples. Our engineering team can confirm feasibility, recommend material upgrades, and provide quotations within 3-5 working days.
Q What power end parts does YP Petro manufacture?

A
YP Petro manufactures power end components including extension rods, crossheads, crosshead pins, cross pin baffles, upper and lower guide plates, packing boxes, seal rings, and oil seal lips. We also supply crankshaft assemblies, gear sets, and connecting rods for major mud pump models.
Q What other fluid end parts does YP Petro supply?

A
In addition to cylinder liners, YP Petro supplies a complete range of fluid end parts, including pistons, piston rubber, valve bodies, valve seats, valve rubber, liner seals, cylinder head gaskets, valve cover seals, piston rods, clamp assemblies, valve covers, cylinder heads, flange heads, cylinder flanges, cylinder covers, and inhalation capsules. We also supply dampener diaphragms, pressure gauges, fittings, relief valves, and exhaust valves.
Q What size range of cylinder liners does YP Petro offer?

A
YP Petro cylinder liners are available in metric sizes from 100mm to 180mm and imperial sizes from 3" to 7.5" (including 3", 3.5", 4", 4.5", 5", 5.5", 6", 6.25", 6.5", 6.75", 7", 7.25", 7.5"). Custom sizes are available on request.
Q What is the difference between bi-metal, ceramic, chrome-plated, and high-frequency quenching cylinder liners?

A
| Type | Inner Material | Hardness | Service Life | Best For |
| Bi-Metal | High-chromium cast iron | HRC 62 | 800h+ | General high-pressure, abrasive drilling |
| Ceramic | Al₂O₃ or Zirconia | HRC 80+ | 1500h+ | Extreme abrasion, high-sand formations |
| Chrome-Plated | Hard chrome coating | HRC 55 | 300-400h | Moderate conditions, budget operations |
| High-Frequency Quenching | Quenched alloy iron | HRC 50 | 200-300h | Light-duty, low-cost applications |
