Product Description

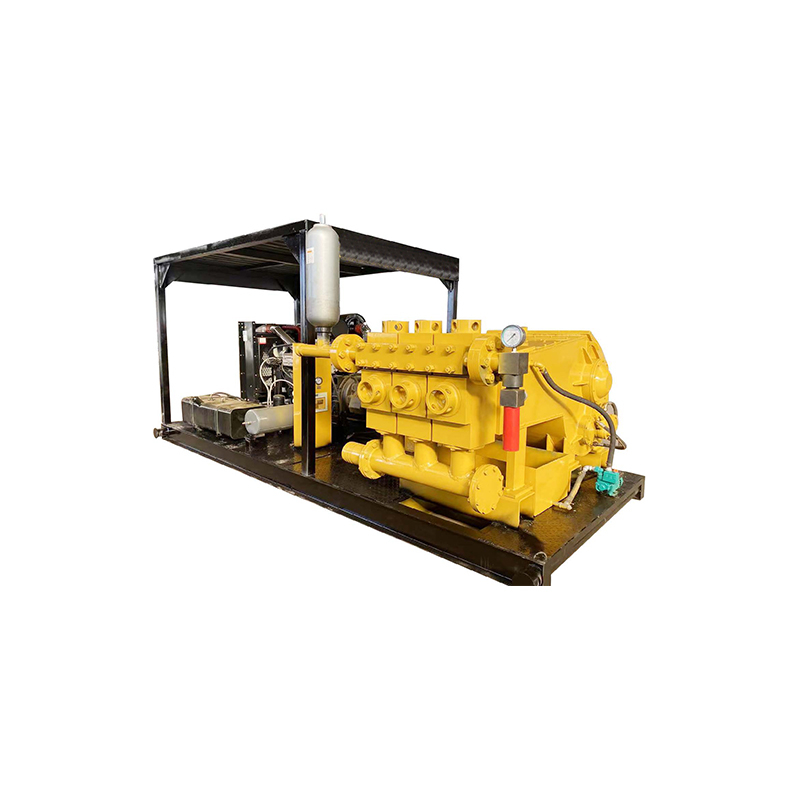

Non excavation mud pump
Non excavation mud pump is a device specifically designed to extract liquids such as underground cement slurry, sand slurry, oil and sewage during underground mining operations. According to different working methods and usage scenarios, non excavation mud pumps can be divided into two types: single stage and multi-stage.
The characteristic of a single stage non excavation mud pump is its low pressure and flow rate, which is suitable for scenarios with low liquid viscosity, such as the mining of small underground water wells. Multi stage non excavation mud pumps have relatively high pressure and flow rate, making them suitable for scenarios with high liquid viscosity, such as the extraction of large underground reservoirs, oil fields, etc.
Introduction to non excavation mud pump products
The non excavation mud pump adopts a multi-stage centrifugal pump, which can increase the pressure and flow rate of the liquid to the high-pressure range, achieving rapid discharge and extraction of the liquid. At the same time, the pump has the characteristics of small volume, low noise, and simple operation, and is widely used in the extraction of underground cement slurry, sand slurry, oily water, and other liquids.
Product data of non excavation mud pump
Rated flow rate: 200m ³/ H
Maximum pressure: 0.25MPa
Working temperature: -20~50 ℃
Applicable media: underground cement slurry, sand slurry, oily water, etc
Applicable scenarios: exploitation of small groundwater wells, exploitation of large groundwater reservoirs, oil fields, etc
Our HDD pump is developed based on the design specifications and API standards for petroleum drilling mud pumps, and is widely used in non excavation, coalbed methane drilling, geothermal water injection, and other applications. The pump can be equipped with different cylinder liners and pistons to adapt to various working conditions.
Pump model | 3TP-1800 | 3TP-2800 |
Type | Three cylinder plunger pump | Three cylinder plunger pump |
Lubrication method | Forced lubrication | Forced lubrication |
SPM | 140 | 140 |
Maximum displacement | 1800 L/min (475 gallons/min) | 2800 L/min (475 gallons/min) |
Maximum pressure | 9 MPa/1300 psi | 9 MPa/1300 psi |
Stroke length | 152.4 mm/6 inches | 177.8 mm/7 inches |
Installation gasket size | 190 mm (7 1/2 inches) | 220 mm (8 1/2 inches) |
Input power | 140 kW (187 horsepower) | 300 kW (400 horsepower) |
Outlet pipe diameter | 89(3 1/2 inches) | 89(3 1/2 inches) |
Intake pipe diameter | 219(8 1/2 inches) | 273(10 5/8 inches) |
Weight | 4800公斤(10582 lb) | 7800公斤(17196 lb) |
Size mm (length x width x height) | 2674×2000×2042 mm(802×600×612 feet) | 2300×1729×1700 mm(690×519×510 feet) |
Available diesel engines | (Weichai)WP7G300E300, 220kW/2300rpm, 1200N.m, 1600~1800rpm | (Weichai)WP12G480E310,353kW/2100rpm,2100N.m,1200~1500rpm |
Available transfers | FAST manual transmission, 2600rpm, 1800N. m, 7-shift system | FAST manual transmission, 2600rpm, 2600N. m, 9-shift system |
