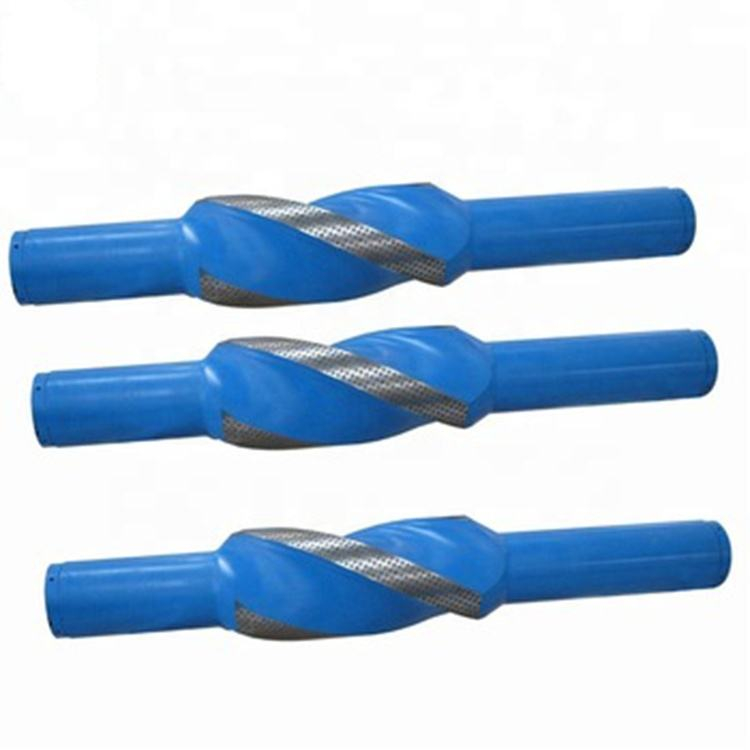

API 7-1 AISI 4145H Hot sale 20 inch near bit stabilizer oil drill stabilizer drill pipe stabilizer

API 7-1 AISI 4145H Hot sale 20 inch near bit stabilizer oil drill stabilizer drill pipe stabilizer


SKU:
Availability:



Inquire PDF Export

Product Description

Product Description

•API standard oilfield stabilizers are manufactured from one solid bar of AISI 4145H modifed steel, usually have 3 blade or 4 blades.Professional heat-treatment process gurantees the mechanical strengths meet the requirments of API SPEC7-1. Hardness of 285-341HB can be assured with 1'' beneath the outer surface and 4 quadrant across the neck OD.

•Replaceable sleeve stabilizer consists of mandrel and sleeve. The function is the same as spiral integral blade stabilizer. It can suit to different hole sizes and increase working life by changing the different size sleeves. The sleeve is threaded on the mandrel, so the sleeve can be fasten to the mandrel tightly and changed easily.

Drilling Stabilizers is an important tool to control hole deviation in petroleum and gas exploration drilling process.The type of it can be divided into drill string type and near bit type. The main types of stabilizers are divided into Integral Spiral Blade Stabilizer, Integral Straight Blade Stabilizer, Replaceable Sleeve Stabilizer, Tapered Stabilizer, Float Valve Stabilizer, Non-Rotating Stabilizer.

Type	Working O.D.(in)	O.D. Of Body (mm)	I.D. (mm)	Overrall Length/Spiral Band Length(mm)	Connection
					String Type		Near Bit Type
					Top	Down	Top	Down
WL149	5-7/8’’	121	50.8	1450/400	NC38			3-1/2REG
WL152	6’’
WL158	6-1/4’’
WL165	6-1/2’’
WL190	7-1/2’’	178	57.2 Or 71.4	1500/450	NC46			4-1/2REG
WL200	7-7/8’’
WL213	8-3/8’’				NC46 NC50
WL215	8-1/2’’
WL222	8-3/4’’
WL241	9-1/2’’				NC50	NC50	NC50	6-5/8REG
WL245	9-5/8’’	203	71.4	1700/550
WL251	9-7/8’’
WL311	12-1/4’’				NC56 6-5/8REG	NC56 6-5/8 REG	NC56 6-5/8REG	6-5/8REG
WL339-WL406	13.35-16’’	229		2000	NC61 7-5/8REG
WL445	17-1/2’’					NC61 7-5/8REG	NC61 7-5/8REG	NC61 7-5/8REG
WL450 WL609	17.7’’-24’’			2500
WL660	26’’
WL711	28’’

Drill Pipe 4145H stabilizer mud pump steel liner Mud Pump Piston high temperature pistons Mud Pump Parts Valve assembly Mud pump piston rod mud pump bladder parts mud pump piston rubber

FAQ

Q YP Petro manufactures power end components including extension rods, crossheads, crosshead pins, cross pin baffles, upper and lower guide plates, packing boxes, seal rings, and oil seal lips. We also supply crankshaft assemblies, gear sets, and connecting rods for major mud pump models.

A
Yes. YP Petro accepts OEM/ODM orders based on customer drawings, technical specifications, or reverse-engineered samples. Our engineering team can confirm feasibility, recommend material upgrades, and provide quotations within 3-5 working days.
Q What power end parts does YP Petro manufacture?

A
YP Petro manufactures power end components including extension rods, crossheads, crosshead pins, cross pin baffles, upper and lower guide plates, packing boxes, seal rings, and oil seal lips. We also supply crankshaft assemblies, gear sets, and connecting rods for major mud pump models.
Q What other fluid end parts does YP Petro supply?

A
In addition to cylinder liners, YP Petro supplies a complete range of fluid end parts, including pistons, piston rubber, valve bodies, valve seats, valve rubber, liner seals, cylinder head gaskets, valve cover seals, piston rods, clamp assemblies, valve covers, cylinder heads, flange heads, cylinder flanges, cylinder covers, and inhalation capsules. We also supply dampener diaphragms, pressure gauges, fittings, relief valves, and exhaust valves.
Q What size range of cylinder liners does YP Petro offer?

A
YP Petro cylinder liners are available in metric sizes from 100mm to 180mm and imperial sizes from 3" to 7.5" (including 3", 3.5", 4", 4.5", 5", 5.5", 6", 6.25", 6.5", 6.75", 7", 7.25", 7.5"). Custom sizes are available on request.
Q What is the difference between bi-metal, ceramic, chrome-plated, and high-frequency quenching cylinder liners?

A
| Type | Inner Material | Hardness | Service Life | Best For |
| Bi-Metal | High-chromium cast iron | HRC 62 | 800h+ | General high-pressure, abrasive drilling |
| Ceramic | Al₂O₃ or Zirconia | HRC 80+ | 1500h+ | Extreme abrasion, high-sand formations |
| Chrome-Plated | Hard chrome coating | HRC 55 | 300-400h | Moderate conditions, budget operations |
| High-Frequency Quenching | Quenched alloy iron | HRC 50 | 200-300h | Light-duty, low-cost applications |
