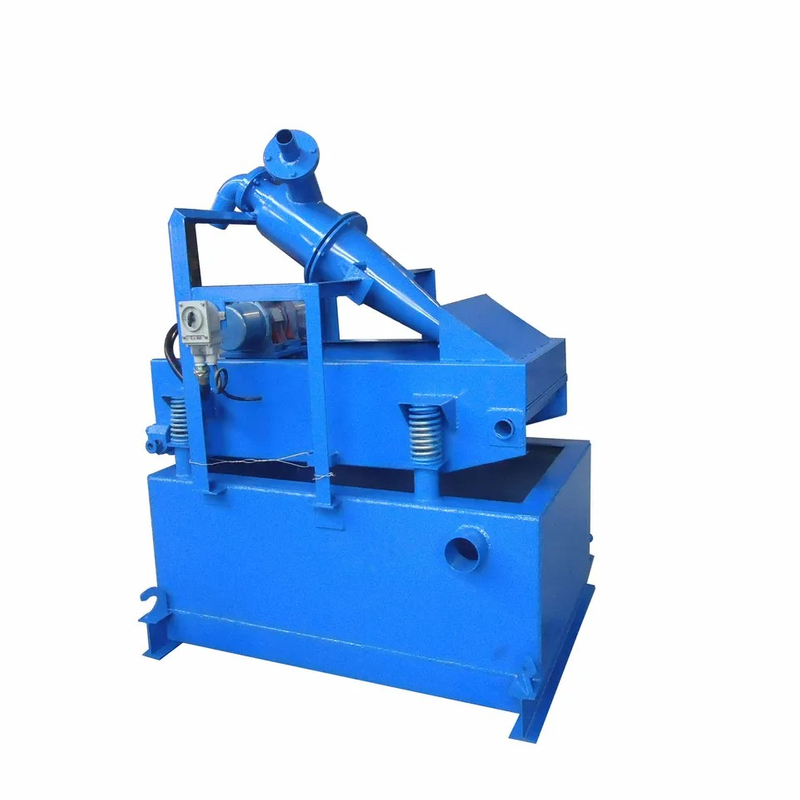

Drilling fluids mud desander with hydrocyclone cyclones

Drilling fluids mud desander with hydrocyclone cyclones

Drilling fluids mud desander is used to remove sand & cuttings from drilling mud. Drilling fluids mud desander is an important device for reducing average particle sizes and removing abrasive grit from unweighted drilling fluids.


SKU:
Availability:



Inquire PDF Export

Product Description

Product Description

Drilling Fluids Mud Desander

Desanders and desilters are solid control equipment with a set of hydrocyclones that separate sand and silt from the drilling fluids in drilling rigs. Desanders are installed on top of the mud tank following the shale shaker and the degasser, but before the desilter. Desander removes the abrasive solids from the drilling fluids which cannot be removed by shakers. Normally the solids diameter for desander to be separated would be 45~74μm for desilter. HL Petroleum Equipment Co., Ltd can customize products according to customers' needs.

Specification of Drilling Fluids Mud Desander

Model	HCS250S	HCs200×2S	HCS250×2S	HCS300×2S
Capacity	50 m3h	100 m3/h	200 m3h	240 m3h
cyclone Diameter	250mm(10")	200mm(8"")	250mm(10")	30omm(12")
Cyclone Quantity	1	2	2	2
separation article Size	44~74um	44~74um	44~74um	44~74um
Motor Power	0.5 kW	0.5 KW	0.5KW	0.75 KW
Applicable Field	Wells less than 100 meters	Horizontal Directional Drilling	4000m oil drilling	Oil drilling above 5000 meters
supporting sand Pump	SB4×3-15KW	SB5×4-22KW	SB8×6-55KW	SB8×6-75KW
Weight	550KG	750KG	80OKG	1100KG
Dimension: L×WxH	1500×800×1800 mm	1500×1200×1800 mm	1500×1300×1800 mm	1500×1500×1800 mm

desander Mud Desander

FAQ

Q YP Petro manufactures power end components including extension rods, crossheads, crosshead pins, cross pin baffles, upper and lower guide plates, packing boxes, seal rings, and oil seal lips. We also supply crankshaft assemblies, gear sets, and connecting rods for major mud pump models.

A
Yes. YP Petro accepts OEM/ODM orders based on customer drawings, technical specifications, or reverse-engineered samples. Our engineering team can confirm feasibility, recommend material upgrades, and provide quotations within 3-5 working days.
Q What power end parts does YP Petro manufacture?

A
YP Petro manufactures power end components including extension rods, crossheads, crosshead pins, cross pin baffles, upper and lower guide plates, packing boxes, seal rings, and oil seal lips. We also supply crankshaft assemblies, gear sets, and connecting rods for major mud pump models.
Q What other fluid end parts does YP Petro supply?

A
In addition to cylinder liners, YP Petro supplies a complete range of fluid end parts, including pistons, piston rubber, valve bodies, valve seats, valve rubber, liner seals, cylinder head gaskets, valve cover seals, piston rods, clamp assemblies, valve covers, cylinder heads, flange heads, cylinder flanges, cylinder covers, and inhalation capsules. We also supply dampener diaphragms, pressure gauges, fittings, relief valves, and exhaust valves.
Q What size range of cylinder liners does YP Petro offer?

A
YP Petro cylinder liners are available in metric sizes from 100mm to 180mm and imperial sizes from 3" to 7.5" (including 3", 3.5", 4", 4.5", 5", 5.5", 6", 6.25", 6.5", 6.75", 7", 7.25", 7.5"). Custom sizes are available on request.
Q What is the difference between bi-metal, ceramic, chrome-plated, and high-frequency quenching cylinder liners?

A
| Type | Inner Material | Hardness | Service Life | Best For |
| Bi-Metal | High-chromium cast iron | HRC 62 | 800h+ | General high-pressure, abrasive drilling |
| Ceramic | Al₂O₃ or Zirconia | HRC 80+ | 1500h+ | Extreme abrasion, high-sand formations |
| Chrome-Plated | Hard chrome coating | HRC 55 | 300-400h | Moderate conditions, budget operations |
| High-Frequency Quenching | Quenched alloy iron | HRC 50 | 200-300h | Light-duty, low-cost applications |
