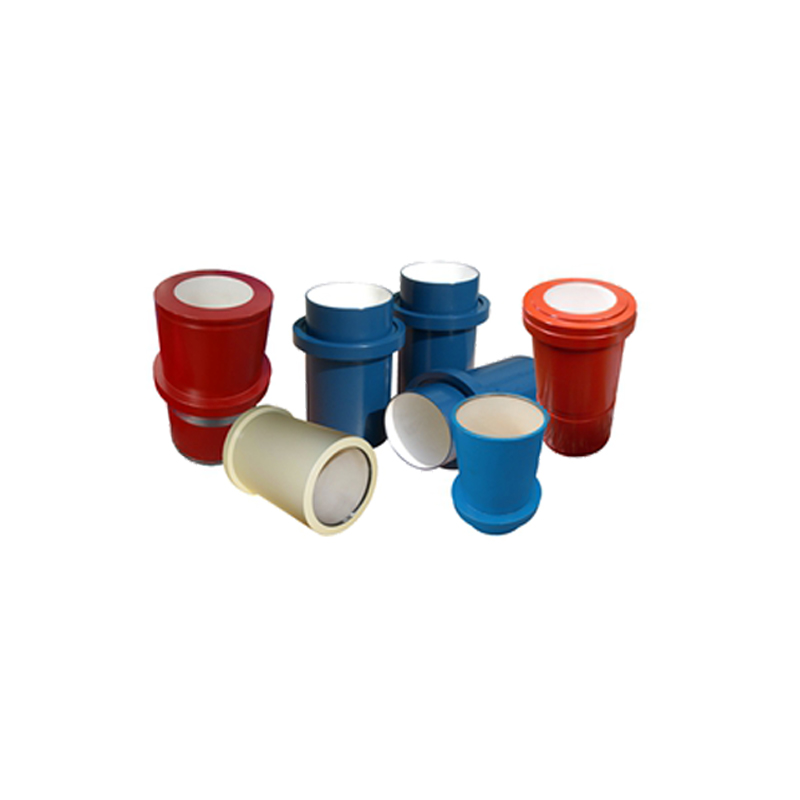

Mud Pump Cylinder Liner F800/F1000/F1300/F1600/F-2200hl

The bi-metal outer surface is made of premium carbon steel, the inner sleeve is made of wear-resistant high chrome cast iron and the surface hardness reaches HRC62. The sleeve of the liner is smooth like a mirror, the dimension of the inner hole is precious and service life is up to 800 hours.

size in metric from 100mm to 180mm;

size in inches from 3" 3 1/2" 4 4 1/2" 5" 5 1/2" 6" 6 1/4" 6 1/2" 6 3/4"  7" 7 1/4" 7 1/2".

ALL SIZE According to different mud pump type.

We can also supply ceramic liners(Al2O3 or Zirconia) , chrome-plated liners , high-frequency quenching liners for your need.


We have specialized in manufacturing spare parts of mud pump for over 10 years to the worldwide Oil Drilling industry.
We stock and sell a wide selection of mud pump fluid end expendables and spares parts.

Mud pump parts for F series mud pump, For P series mud pump, For PZ series mud pump, For 3NB series mud pump.

These parts include liners, pistons, valves & seats,piston rods, rod clamps, extension rods, all

fluid end seals and gaskets, fluid cylinder modules and accessories, as well as power end

components, such as crankshaft assemblies, gear sets, connecting rods, crosshead, and bearings.

Mud pump Cylinder Liner

Fluid End: liner, piston rubber, valve body, valve seats, valve rubber, liner seals, cylinder head gasket, valve cover seals, piston rod, clamp assembly, valve cover, cylinder head, flange head, cylinder flange, cylinder cover, inhalation capsules, etc.

Power End: extension rod, crosshead, crosshead pin, cross pin baffle, upper and lower guide plate, packing boxes, seal ring, oil seal lips

Dampener: Dampener diaphragm, pressure gauges, fittings, tees, angle type valve, relief valve, exhaust valve.

Other Accessories: JA-3 valve assembly, the small piston, small rod, cushion, 2S gear pumps, 32PL spray pump.

Advantages of Mud pump Cylinder Liner

The bimetal liner offers long service life of about 800 hours, which is 2 to 3 times the lifetime of common ones in severe environment.

Specification of Mud pump Cylinder Liner
