Product Description

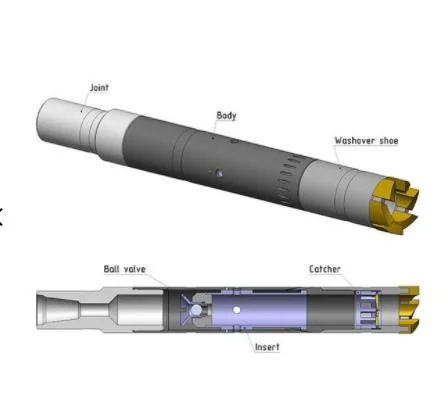

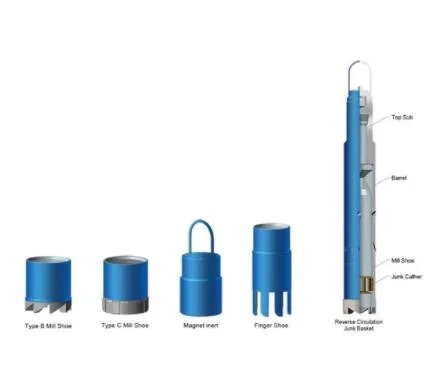

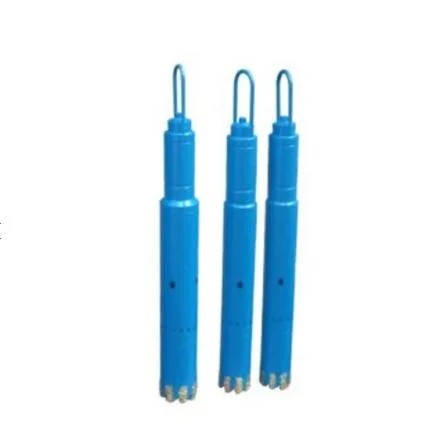

Reverse circulation junk basket is used to catch all kinds of small junk objects such as cones,cutters,hand tools from bottom well.During drilling operation,it produces a local reverse circulation of fluid at well core so as to effect a complete recovery of junk in the junk basket.
| type | Barrel O.D. (mm) | Fish Max.O.D. (mm) | Ball Dia. (mm) | Thread Conn | Hole Size (mm) |
| LL-381 | 381 | 282 | 55 | 7 5/8REG | 406-444 |
| LL-318 | 318 | 248 | 55 | 6 5/8REG | 349-406 |
| LL-F286 | 286 | 217 | 55 | 6 5/8REG | 320-346 |
| LL-F279 | 279 | 211 | 55 | 6 5/8REG | 300-341 |
| LL-F254 | 254 | 195 | 55 | 6 5/8REG | 275-295 |
| LL-F245 | 245 | 192 | 50 | NC50 | 275-295 |
| LL-F232 | 232 | 179 | 50 | NC50 | 255-270 |
| LL-F200 | 200 | 154 | 45 | NC50 | 223-241 |
| LL-F195 | 195 | 149 | 42 | NC50 | 215-241 |
| LL-F178 | 178 | 130 | 42 | NC50 | 198-209 |
| LL-F168 | 168 | 123 | 42 | NC50 | 190-209 |
| LL-F130 | 130 | 94 | 40 | NC31 | 155-165 |
| LL-F121 | 121 | 90 | 35 | NC31 | 142-152 |
| LL-F114 | 114 | 82 | 35 | NC31 | 130-140 |
| LL-F97 | 97 | 62 | 30 | NC26 | 117-127 |
| LL-F89 | 89 | 55 | 30 | NC26 | 108-114 |
