Casing Power Tong Hydraulic Power Tong Tq Series with Jaws for Workover

Casing Power Tong Hydraulic Power Tong Tq Series with Jaws for Workover

Model:
all
Brand:
hebei yingpai
Code:
84139100


SKU:
Availability:



Inquire PDF Export

Product Description

Product Description

Contact

Company	Hebel Xinhuafa Petroleum Machinery Co. LTD
Address	Chang'an District,Shijiazhuang,Hebei,China
Contacts	Anne Yang
Whatsapp	+8617831121697

TQ Casing Power Tong
It has the following characteristics:
The best cutting diameter ratio design, reliable clamping, no slippage;
The brake band brake, the righting mechanism under the;
The hydraulic, two gear speed, using gear gear;
The automatic control system of the optional torque. The installation of torque automatic control system is better.

Main technical parameters:

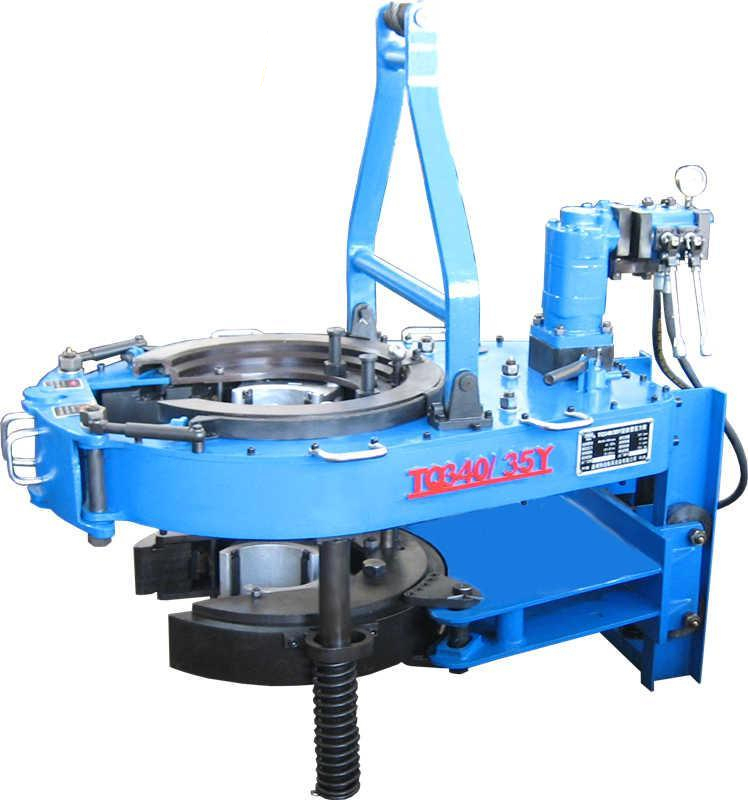

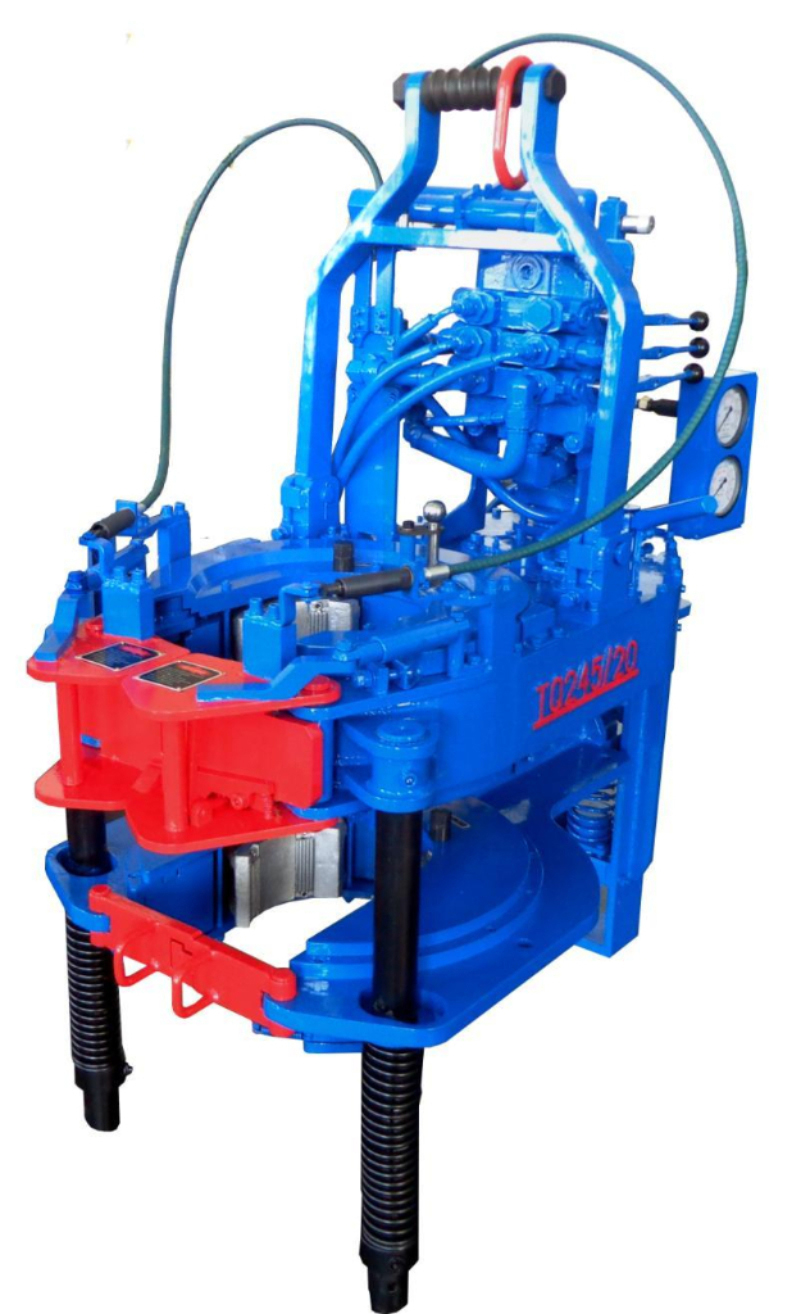

Model	TQ245/20Y	TQ340/35Y	TQ508/70Y
Application Range of Master Tong	Φ102~Φ245mm	Φ140~Φ340mm	Φ245~Φ508mm
Application Range of Backup Tong	Φ121~Φ270mm	Φ154~Φ365mm	Φ270~Φ533mm
High Gear Rated Torque	2600N.m	4800N.m	10160N.m
Low Gear Rated Torque	20000N.m	35000N.m	70000N.m
High Gear Rotation Speed	67 rpm	42 rpm	23 rpm
Low Gear Rotation Speed	9 rpm	6 rpm	3 rpm
Rated Operation Pressure	14 MPa	14 MPa	17 MPa
Max. Flow	120 L/min	120 L/min	120 L/min
Dimension:L×W×H mm	1500×630×650	1450×980×650	1980×1219×690
Weight(With Backup)	650kg	1050 kg	2250 kg
