Vibrating Shaker Screen Screen customization

Vibrating Shaker Screen Screen customization

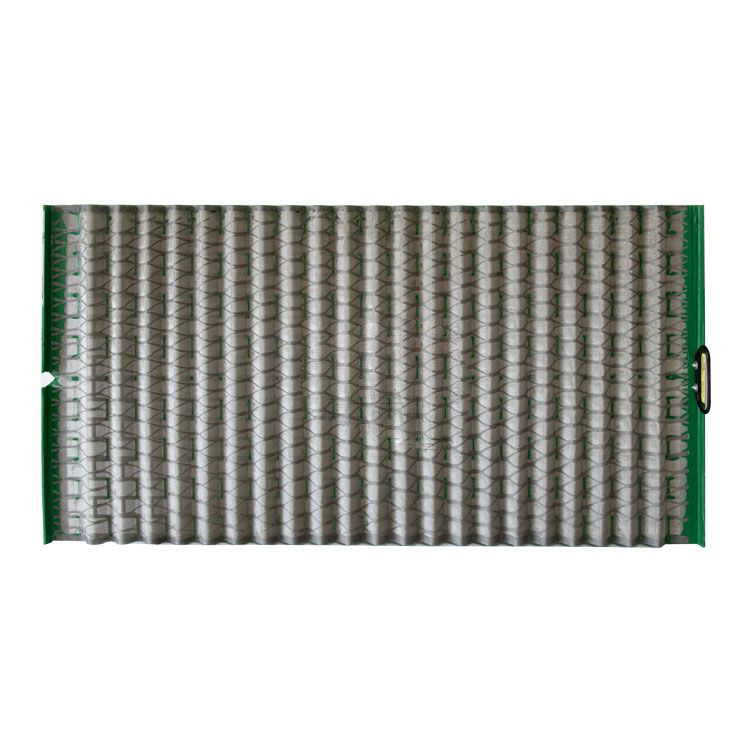

vibrating shaker screen For Derrick 600 with weave type has large effective area. Drilling fluid is handled in high service life.


SKU:
Availability:



Inquire PDF Export

Product Description

Product Description

PRODUCT FEATURES

vibrating shaker screen For Derrick 600 with weave type are mostly applied to the shale shakers with Quick mounting handles. These products screen panels are constructed with two or three 304 or 316 stainless steel wire cloth layers, after compounded and bended, with a steel backing plate combined together. The wire cloth and bottom steel backing plate combined tightly, increase the filtering area 120% to 150% more than hookstrip flat screen, get an better effective. Accessary rubber plugs can be used to repair rips or tears. By doing this, we can cut down time and reduce the production costs. We can supply composite frame screens with mesh sizes ranging from 20 to 320.

Screen Model	Range of Mesh	Dimension (Width x Length)	Brand & Model of Shaker
HSB-1(WAVE ®)	20-325	697×1053mm	FLC2000(PMD) Series
HSB-2((WAVE ®)	20-325	695×1050mm	FLC500(PMD) Series
HSB-3(WAVE ®)	20-325	710×626mm	FLC600 (PMD) Series
HSB-4(WAVE ®)	20-325	567×1070mm	HYPERPOOL
HSP-1	20-325	697×1053mm	FLC2000(PWP) Series
HSP-2	20-325	695×1050mm	FLC500(PWP) Series
HSP-3	20-325	697× 846 mm	FLC313M
HSZ-1/1	20-325	585×1165mm	SWACO MONGOOSE PT＆PRO
HSZ-3	20-325	610×660mm	SWACO MD-2＆MD-3
HSP-4	20-325	903×1155mm	SWACO BEM-3
HSF-1	20-250	700×1050mm	SWACO DERRICK-FLC2000
HSF-2	20-250	1212×1141mm	SWACO ALS-2
HSZ-2/1	20-325	635×1250mm	BRANDT KING COBRA＆COBRA
HSK-2	20-325	635×1253mm	BRANDT KING COBRA
HSK-3	20-325	940*686mm	BRANDT VSM300 Pramary
HSK-4	20-325	889*686mm	BRANDT VSM300 scalping
HSK-5	20-325	712×1180mm	BRANDT D380
HSK-4	20-325	720×1220mm	KTL48 SERIES
HSK-6	20-325	737*1067mm	FSI 50＆500＆5000
HSP-6	20-325	915×1150mm	LCM-2D
HSP-7	20-325	700×1165mm	S250

API RP 13C(ISO 13501)
D100 Separation(Microns)	API Screen Number
>780.0 to 925.0	API 20
>655.0 to 780.0	API 25
>550.0 to 655.0	API 30
>462.5 to 550.0	API 35
>390.0 to 462.5	API 40
>327.5 to 390.0	API 45
>275.0 to 327.5	API 50
>231.0 to 275.0	API 60
>196.0 to 231.0	API 70
>165.0 to 196.0	API 80
>137.5 to 165.0	API 100
>116.5 to 137.5	API 120
> 98.0 to 116.5	API 140
> 82.5 to 98.0	API 170
> 69.0 to 82.5	API 200
> 58.0 to 69.0	API 230
> 49.0 to 58.0	API 270
> 41.5 to 49.0	API 325
