Home » Products » Drilling Rig Mud Circulation System » Drilling pump » Other mud pump parts » Triplex Mud Pump Parts/Oil Drilling/API Standard Bladder / Petroleum Machinery Parts

PRODUCT CATEGORY

Triplex Mud Pump Parts/Oil Drilling/API Standard Bladder / Petroleum Machinery Parts

Triplex Mud Pump Parts/Oil Drilling/API Standard Bladder / Petroleum Machinery Parts

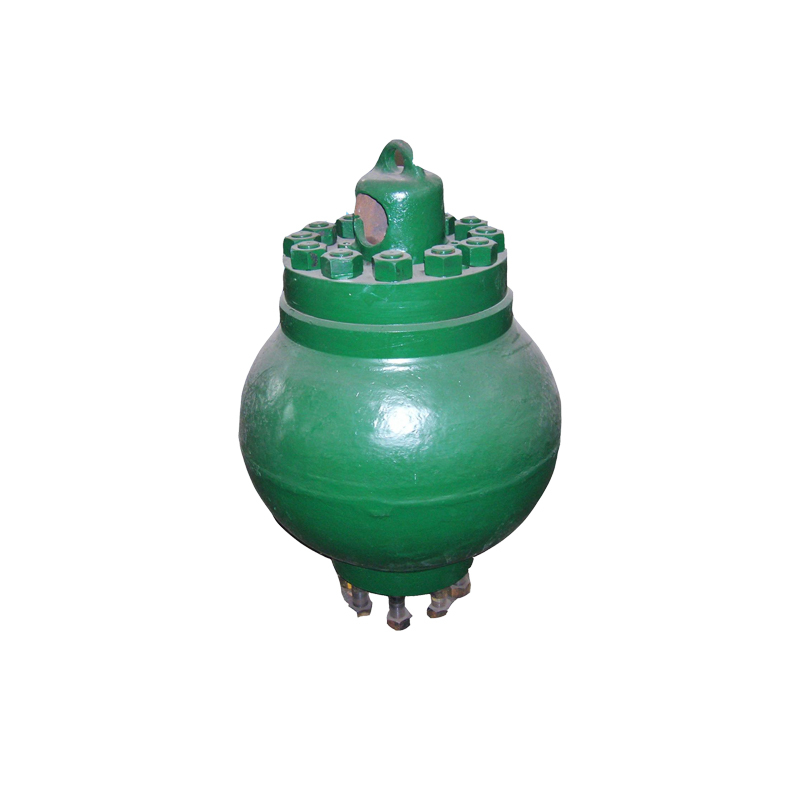

HNBR rubber bladder is composed of rubber pulsation bladder,rubber balance plate and pressure plate bolt, it can reduce the drilling pump pressure fluctuations of instantaneous displacement change;

Make the pump pressure smoothly, protect equipment from damage caused by severe vibration.

the product is also used as stabilizer and vibration absorber for air pump.

Filled with nitrogen in the air or inert gas, in the absence of them,air can replace.But oxygen or combustible gas is forbidden.

Inflation pressure is 20% ~ 30% of the maximum working pressure. The advanced filling pressure is 2.0-2.5 MPa.

Usage:

Mainly applicable to 25 to 35 Mpa drilling, to meet the needs of high pressure jet drilling.

Specification:

Above are our regular specification, any customizing request is also welcome.


SKU:
Availability:



Inquire PDF Export

Product Description

Product Description

Chinese Manufacturer for Mud Pump, Plunger Pump and Spare Parts

Company	Hebel Xinhuafa Petroleum Machinery Co. LTD
Address	Chang'an District,Shijiazhuang,Hebei,China
Contacts	Anne Yang
Mobile	+8615633571027

周三丨空气包 1

HNBR rubber bladder is composed of rubber pulsation bladder,rubber balance plate and pressure plate bolt, it can reduce the drilling pump pressure fluctuations of instantaneous displacement change;

Make the pump pressure smoothly, protect equipment from damage caused by severe vibration.

the product is also used as stabilizer and vibration absorber for air pump.

Filled with nitrogen in the air or inert gas, in the absence of them,air can replace.But oxygen or combustible gas is forbidden.

Inflation pressure is 20% ~ 30% of the maximum working pressure. The advanced filling pressure is 2.0-2.5 MPa.

Usage:

Mainly applicable to 25 to 35 Mpa drilling, to meet the needs of high pressure jet drilling.

Specification:

Above are our regular specification, any customizing request is also welcome.

API Standard Bladder petroleum machinery parts Triplex Mud Pump Parts oil drilling petroleum machinery drilling equipment

FAQ

Q YP Petro manufactures power end components including extension rods, crossheads, crosshead pins, cross pin baffles, upper and lower guide plates, packing boxes, seal rings, and oil seal lips. We also supply crankshaft assemblies, gear sets, and connecting rods for major mud pump models.

A
Yes. YP Petro accepts OEM/ODM orders based on customer drawings, technical specifications, or reverse-engineered samples. Our engineering team can confirm feasibility, recommend material upgrades, and provide quotations within 3-5 working days.
Q What power end parts does YP Petro manufacture?

A
YP Petro manufactures power end components including extension rods, crossheads, crosshead pins, cross pin baffles, upper and lower guide plates, packing boxes, seal rings, and oil seal lips. We also supply crankshaft assemblies, gear sets, and connecting rods for major mud pump models.
Q What other fluid end parts does YP Petro supply?

A
In addition to cylinder liners, YP Petro supplies a complete range of fluid end parts, including pistons, piston rubber, valve bodies, valve seats, valve rubber, liner seals, cylinder head gaskets, valve cover seals, piston rods, clamp assemblies, valve covers, cylinder heads, flange heads, cylinder flanges, cylinder covers, and inhalation capsules. We also supply dampener diaphragms, pressure gauges, fittings, relief valves, and exhaust valves.
Q What size range of cylinder liners does YP Petro offer?

A
YP Petro cylinder liners are available in metric sizes from 100mm to 180mm and imperial sizes from 3" to 7.5" (including 3", 3.5", 4", 4.5", 5", 5.5", 6", 6.25", 6.5", 6.75", 7", 7.25", 7.5"). Custom sizes are available on request.
Q What is the difference between bi-metal, ceramic, chrome-plated, and high-frequency quenching cylinder liners?

A
| Type | Inner Material | Hardness | Service Life | Best For |
| Bi-Metal | High-chromium cast iron | HRC 62 | 800h+ | General high-pressure, abrasive drilling |
| Ceramic | Al₂O₃ or Zirconia | HRC 80+ | 1500h+ | Extreme abrasion, high-sand formations |
| Chrome-Plated | Hard chrome coating | HRC 55 | 300-400h | Moderate conditions, budget operations |
| High-Frequency Quenching | Quenched alloy iron | HRC 50 | 200-300h | Light-duty, low-cost applications |
