API Drill Collar Spiral Drill Collar and non magnetic drill collar

API Drill Collar Spiral Drill Collar and non magnetic drill collar

There are different kinds of drill collars,including round drill collar,spiral drill collar,non-magnetic drill collar,square drill collar and so on.Ordinary drill collar is the circular cross section, the center has a water hole,the wall thickness is larger,the nozzle is smaller, the weight of per unit length is greater than the size of drill pipe almost 4- 5 times .The majority of drill collar is thread processing directly on the pipe body , but some of them also use the replaced joint.

Model:
all
Brand:
Xinhuafa
Code:
84139100


SKU:
Availability:



Inquire PDF Export

Product Description

Product Description

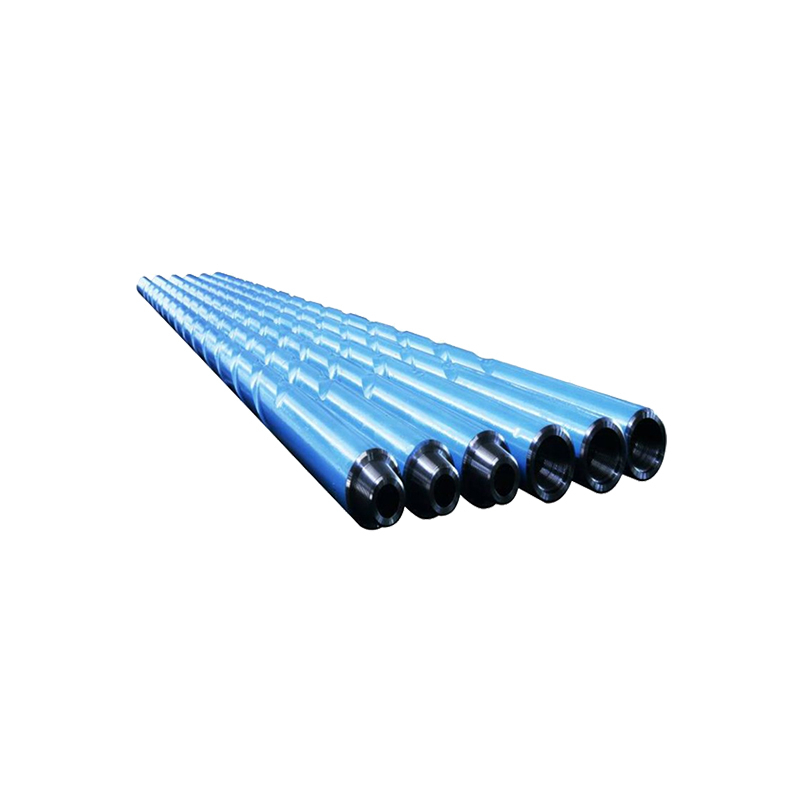

Standard spiral drill collar for well drilling

Hff4d65b542dd415c841d4c1aa82d59e5R - 副本

Features

(1)Eccentric-weight drill collar is an effective anti-deviation drilling tool,with high drill pressure used in oblique areas,rectifying oblique as well.

(2)When drilling directional wells eccentric-weight drill collar is an effective tool to reduce oblique or straighten the well hole using high drilling pressure.

(3)Eccentric-weight drill collar has the advantages of simple structure,convenient use,connected directly to common drill collar without centralizers,greatly convenient for sinking in,fishing and milling operations.

(4)Eccentric-weight drill collar runs downhole safely,danger of leakage or bit freezing hard to appear.

(5)Pay much attention to avoid mud balling and prevent effect of anti-deviation .

Size	O.D(mm)	I.D.(mm)	Code	Thread	Length(mm)	Weight(kg)
3-1/8	79.4	31.8(1-1/4)	NC23-31	NC23	9140	298
3-1/2	88.9	38.1(1-1/2)	NC26-35	NC26	9140	364
4-1/8	104.8	50.8(2)	NC31-41	NC31	9140/9450	474/490
4-3/4	120.6	50.8(2)	NC35-47	NC35	9140/9450	674/697
5	127	57.2(2-1/4)	NC38-50	NC38	9140/9450	725/749
6	152.4	57.2(2-1/4)	NC44-60	NC44	9140/9450	1125/1163
6	152.4	71.4(2-13/16)	NC44-60	NC44	9140/9450	1022/1056
6-1/4	158.8	57.2(2-1/4)	NC44-62	NC44	9140/9450	1237/1279
6-1/4	158.8	71.4(2-13/16)	NC46-62	NC44	9140/9450	1134/1172
6-1/2	165.1	57.2(2-1/4)	NC46-65	NC46	9140/9450	1352/1398
6-1/2	165.1	71.4(2-13/16)	NC46-65	NC50	9140/9450	1249/1291
6-3/4	171.4	57.2(2-1/4)	NC46-67	NC46	9140/9450	1471/1521
7	177.8	57.2(2-1/4)	NC50-70	NC50	9140/9450	1597/1651
7	177.8	71.4(2-13/16)	NC50-70	NC50	9140/9450	1494/1545
7-1/4	184.2	71.4(2-13/16)	NC50-72	NC50	9140/9450	1625/1680
7-3/4	196.8	71.4(2-13/16)	NC56-77	NC56	9140/9450	1895/1960
8	203.2	71.4(2-13/16)	NC56-80	NC56/6-5/8REG	9140/9450	2040/2109
8-1/4	209.6	71.4(2-13/16)	6-5/8REG	6-5/8REG	9140/9450	2188/2263
9	228.6	71.4(2-13/16)	NC61-90	NC61	9140/9450	2658/2748
9-1/2	241.3	76.2(2-13/16)	7-5/8REG	7-5/8REG	9140/9450	2954/3054
9-3/4	247.6	76.2(3)	NC70-97	NC70	9140/9450	3127/3234
10	254	76.2(3)	NC70-100	NC70	9140/9450	3308/3421
11	279.4	76.2(3)	8-5/8REG	8-5/8REG	9140/9450	4072/4210
Mechanical properties:<7 inch Drill Collar:Yield Strength≥758MPa,Tensile Strength≥965MPa,Four times elongation≥13%,Impact energy Ak≥54J,(Single impact work≥47J,Average≥54J)Hardness range 285HB~341HB≥7inch Drill Collar:Yield Strength≥689MPa,Tensile Strength≥931MPa,Four times elongation≥13%,Impact energy Ak≥54J,(Single impact work≥47J,Average≥54J) Hardness range 285HB~341HB
