Home » Products » Pump » Slurry Pump » 20 hp pump high flow diesel engine centrifugal cast iron slurry pump

PRODUCT CATEGORY

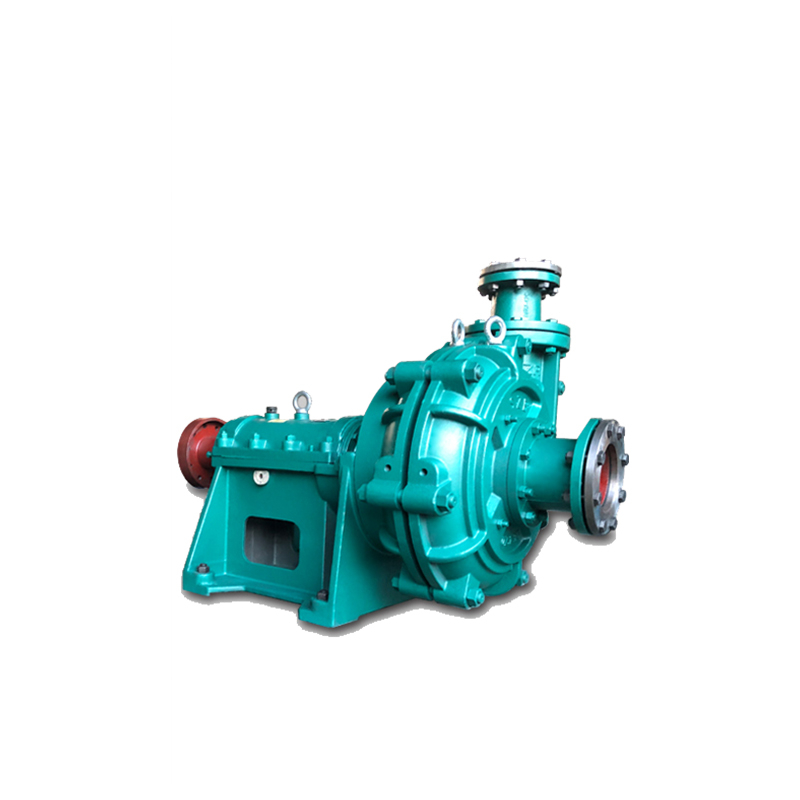

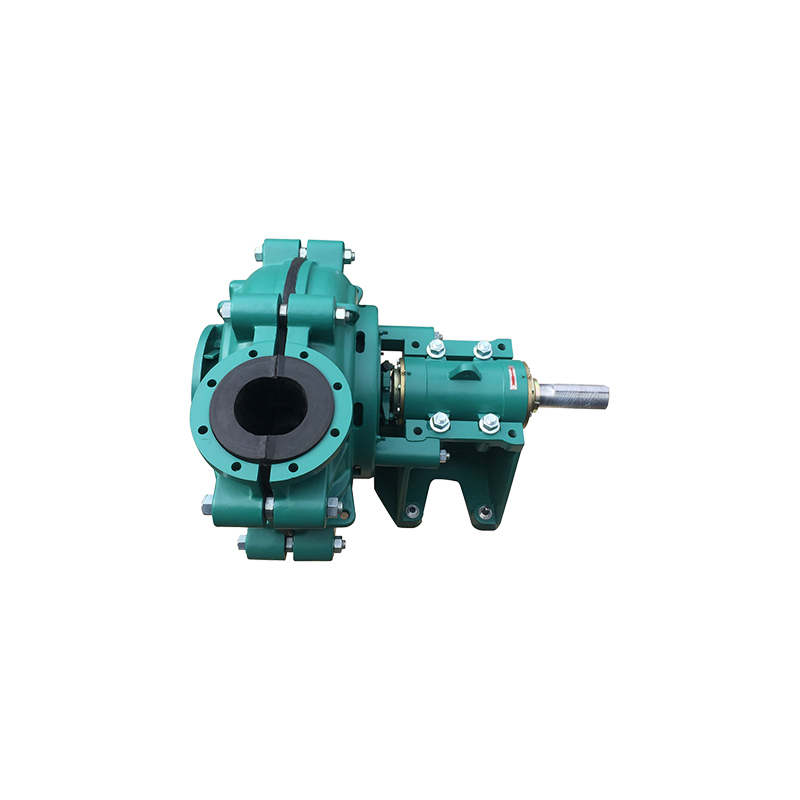

20 hp pump high flow diesel engine centrifugal cast iron slurry pump

20 hp pump high flow diesel engine centrifugal cast iron slurry pump

Model:
all
Brand:
hebei yingpai
Code:
84139100


SKU:
Availability:



Inquire PDF Export

Product Description

Product Description

Slurry pump

Product Parameters --

Type	Max. power	Capacity	Head	Speed	Max.Eff	NPSH	Impeller Dia.	Max.particle size
Type	(kw)	(m³/h)	(m)	(r/min)	(%)	(m)	(mm)	(mm)
MAH1.5-1	15	12-28	6-65	1200-3800	40	2-4	150	14
MAH2-1.5	15	32-72	6-58	1200-3200	45	3.5-8	185	19
MAH3-2	30	39-86	12-64	1300-2700	55	4-6	215	25
MAH4-3	60	86-198	9-52	1000-2200	71	4-5	245	28
MAH6-4	120	162-360	12-56	800-1500	68	5-8	365	44
MAH8-6	120	360-830	10-61	500-1140	72	2-9	510	63
MAH10-8	260	612-1368	11-61	400-850	71	4-10	685	76
MAH12-10	560	936-1980	7-68	400-750	82	1-5	760	86
MAH14-12	560	1260-2772	13-63	300-600	77	3-10	965	90

Rubber Pumps Material			Metal Pumps Material
No	Part	Material	No	Part	Material
1	Base	Cast Iron	1	Base	Cast Iron
2	Shaft	4140 High Tensile Steel*	2	Shaft	4140 High Tensile Steel*
3	Bearing Assembly	Timken (Cast Iron Body)	3	Bearing Assembly	Timken (Cast Iron Body)
4	Shaft Sleeve	420 Stainless Steel	4	Shaft Sleeve	420 Stainless Steel
5	Pump Casing	Cast Iron	5	Pump Casing	Cast Iron
6	Frame Plate Liner Insert	Rubber	6	Frame Plate Liner	27% Chrome White Iron
7	Cover Plate Liner	Rubber	7	Volute Liner	27% Chrome White Iron
8	Impeller	Rubber Coated High Tensile Steel	8	Impeller	27% Chrome White Iron
9	Throat Bush	Rubber	9	Throat Bush	27% Chrome White Iron
10	Cover Plate	Cast Iron	10	Joint Rings	Rubber
11	Stuffing Box	Cast Iron	11	Cover Plate	Cast Iron
12	Expeller	27% Chrome White Iron	12	Stuffing Box	Cast Iron
13	Expeller Ring	Natural Rubber	13	Expeller	27% Chrome White Iron
14	Bolts	Zinc Plated Steel	14	Expeller Ring	Natural Rubber
15	O-rings	Nitrile Rubber	15	Bolts	Zinc Plated Steel
16	Seals	Rubber	16	O-rings	Nitrile Rubber
17	Seals	Rubber	17	Seals	Rubber

Sand Slurry Pump Horizontal Slurry Pump Sand Suction Pump Slurry Pump Paste We-ir Mineral Slurry Pump 250zgm-600

FAQ

Q YP Petro manufactures power end components including extension rods, crossheads, crosshead pins, cross pin baffles, upper and lower guide plates, packing boxes, seal rings, and oil seal lips. We also supply crankshaft assemblies, gear sets, and connecting rods for major mud pump models.

A
Yes. YP Petro accepts OEM/ODM orders based on customer drawings, technical specifications, or reverse-engineered samples. Our engineering team can confirm feasibility, recommend material upgrades, and provide quotations within 3-5 working days.
Q What power end parts does YP Petro manufacture?

A
YP Petro manufactures power end components including extension rods, crossheads, crosshead pins, cross pin baffles, upper and lower guide plates, packing boxes, seal rings, and oil seal lips. We also supply crankshaft assemblies, gear sets, and connecting rods for major mud pump models.
Q What other fluid end parts does YP Petro supply?

A
In addition to cylinder liners, YP Petro supplies a complete range of fluid end parts, including pistons, piston rubber, valve bodies, valve seats, valve rubber, liner seals, cylinder head gaskets, valve cover seals, piston rods, clamp assemblies, valve covers, cylinder heads, flange heads, cylinder flanges, cylinder covers, and inhalation capsules. We also supply dampener diaphragms, pressure gauges, fittings, relief valves, and exhaust valves.
Q What size range of cylinder liners does YP Petro offer?

A
YP Petro cylinder liners are available in metric sizes from 100mm to 180mm and imperial sizes from 3" to 7.5" (including 3", 3.5", 4", 4.5", 5", 5.5", 6", 6.25", 6.5", 6.75", 7", 7.25", 7.5"). Custom sizes are available on request.
Q What is the difference between bi-metal, ceramic, chrome-plated, and high-frequency quenching cylinder liners?

A
| Type | Inner Material | Hardness | Service Life | Best For |
| Bi-Metal | High-chromium cast iron | HRC 62 | 800h+ | General high-pressure, abrasive drilling |
| Ceramic | Al₂O₃ or Zirconia | HRC 80+ | 1500h+ | Extreme abrasion, high-sand formations |
| Chrome-Plated | Hard chrome coating | HRC 55 | 300-400h | Moderate conditions, budget operations |
| High-Frequency Quenching | Quenched alloy iron | HRC 50 | 200-300h | Light-duty, low-cost applications |
