wholesale factory direct cheap price hydraulic drilling rig winch / direct driving winch

Availability:
sharethis sharing button
  • all

  • hebei yingpai

  • 84139100

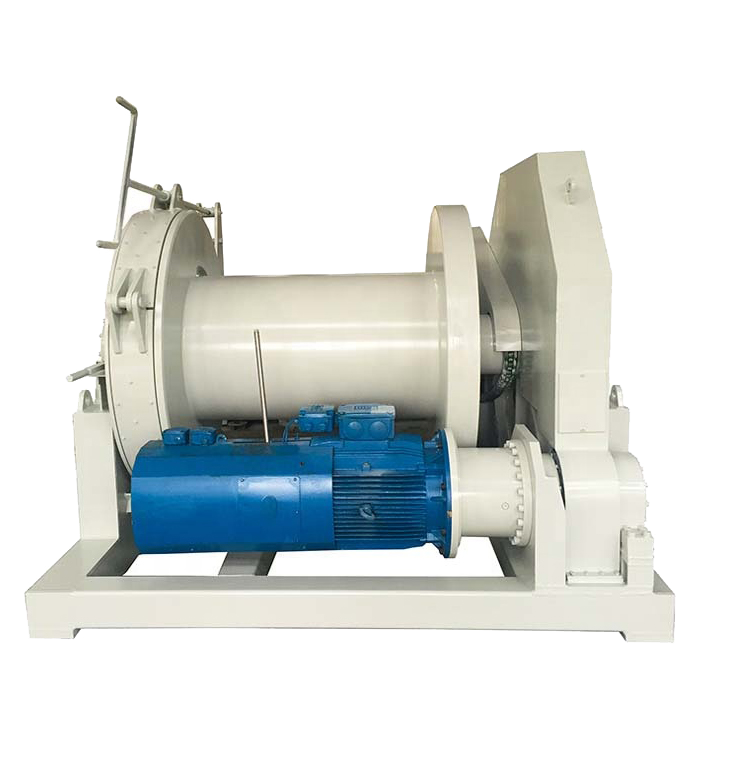

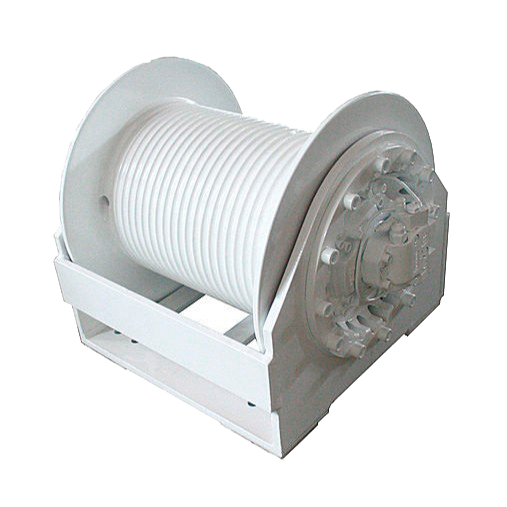

Hydraulic drilling rig winch
Description of products


SPECIFICATION HWX10000YD
Rated line pull

10000lbs(4536kgs)

Motor displacement

50ml/r

Oil flow

15~40L/min

Pressure

12.5Mpa

Gear reduction ratio

28:1

Cable (Dia.× L)

Ø3/8 "×85 ' (Ø9.2mm×26m)

Drum size(Dia.× L)

Ø2.6"×8. 5" (Ø66mm×217mm)

Mounting bolt pattern

21.7"×19.7 " ×4.5 " (550mm×500mm×114.3mm) 4-M12

Overall dimensions
(L×W×H)

22.8" (L) x 7.9" (W) x 9.5" (H)
580(L) mm X201 (W) mm X 242(H) mm

Net weight
Ibs(kgs)

96.3 / 43.7



Pull, Speed, Pressure, Flow (First layer)
Line pull
lbs(kgs)

Pressure
Mpa(Psi)

Flow
G/min(L/min)

Line speed
ft/min(m/min)

0

2.0(290.1)

4.0(15)

7.2(2.2)

4000(1814)

3.9(565.6)

6.6(25)

12.5(3.8)

6000(2722)

7.5(1087.7)

9.2(35)

17.7(5.4)

8000(3629)

10.5(1522.8)

10.6(40)

20.0(6.1)

10000(4536)

12.5(1812.9)

/

/



Line Pull and Rope Capacity Inlayer
Layer of wire rope

Rated line pull
lbs(kgs)

Total rope on drum
ft (m)

1

10000(4536)

17.4 (5.3)

2

7969(3615)

39.4 (12.0)

3

6624(3005)

65.0 (19.8)

4

5667(2571)

85.3(26.0)
