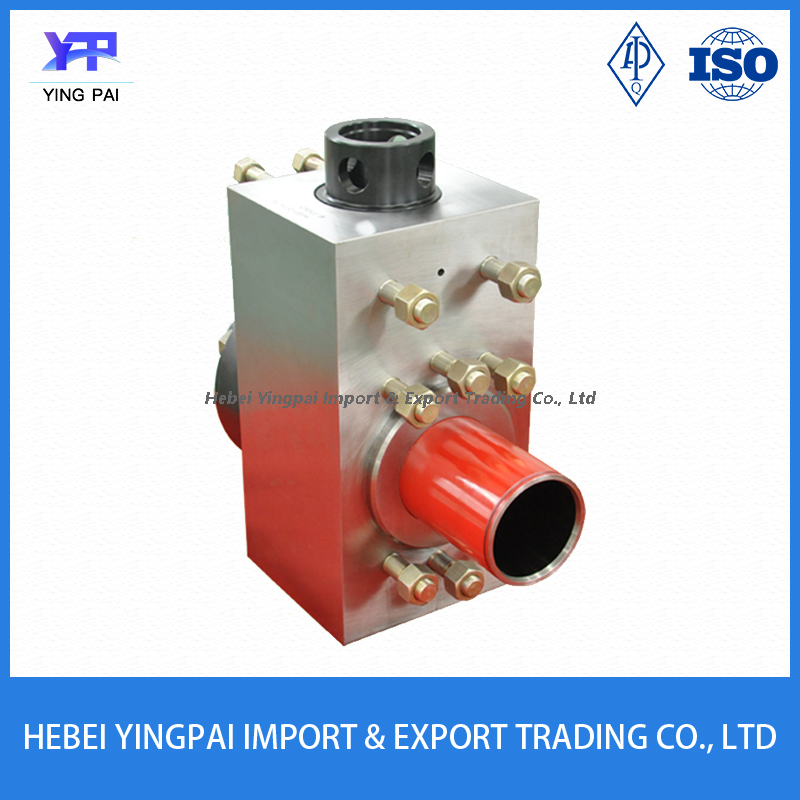

Mud Pump Parts Fluid End Module & Hydraulic Cylinder F-500, F-800, F-1000 F-1600, F-1600hl, F-2200hl

Hydraulic cylinder is also called the valve box, it is a major part to the fluid end parts. Blank forged by highstrength alloy steel. After heat treated, with multi-channel processes. The three cylinders of each pump is interchangeable. The following key parts: cone sawtooth thread of cylinder head, connect of the curve of all the screw hole and inner cavity.

We can supply various mud pump expendable parts, including power end assembly, fluid end assembly and its spare parts, which can be easily matched & exchanged with some international famous mud pump brand, such as parts for 3NB series Pump, F series Pump, PZ series Pump, HBRS Pump, BOMCO Pump, EMSCO Pump, NOV P Series Pump, IDECO Pump, etc.


Contains the components:
1. Made from 4130 or 4135 metal and heat-treated to hardness for long wear.
2. The clean exterior finish reflects the superior inside quality.
3. Valve and cylinder head plugs.
4. Valve cylinder head threaded rings.
5. Valve cylinder headlocks.
6. Studs and nuts.
7. Specialty items.

Features:
1. API 7K quality standards.
2. Heat-treated and internally hardened for high durability.
3. Pressure up to 5000, 7500, and 10000psi.
4. Discharge connections and suction connections on each side or front center.
5. Made from the premium alloy steel AISI 8620 or 4135.
6. Thermal refining treatment, rigid inspection.
7. The mechanical property: σ B≥ 850/MPC, σ S≥ 670/MPC, δ ≥ 15% ≥ 13%.

Primary competitive advantages:
1) Excellent and high quality control
2) Prompt delivery
3) Competitive price
4) Small order accepted
5) Customers' drawings or samples accepted
6) Specialized features/benefits
7) OEM service (model, number of teeth, outside and inside diameters, thickness)

Since established in 2011, our forging parts have been exported to many countries, such as American, European countries, Asian countries, and so on. Our products are widely used in the petroleum and chemical industry, power generation, shipbuilding, heavy machinery, and so on.

We have  a complete line of high-quality fluid end modules, and available types as follow:
