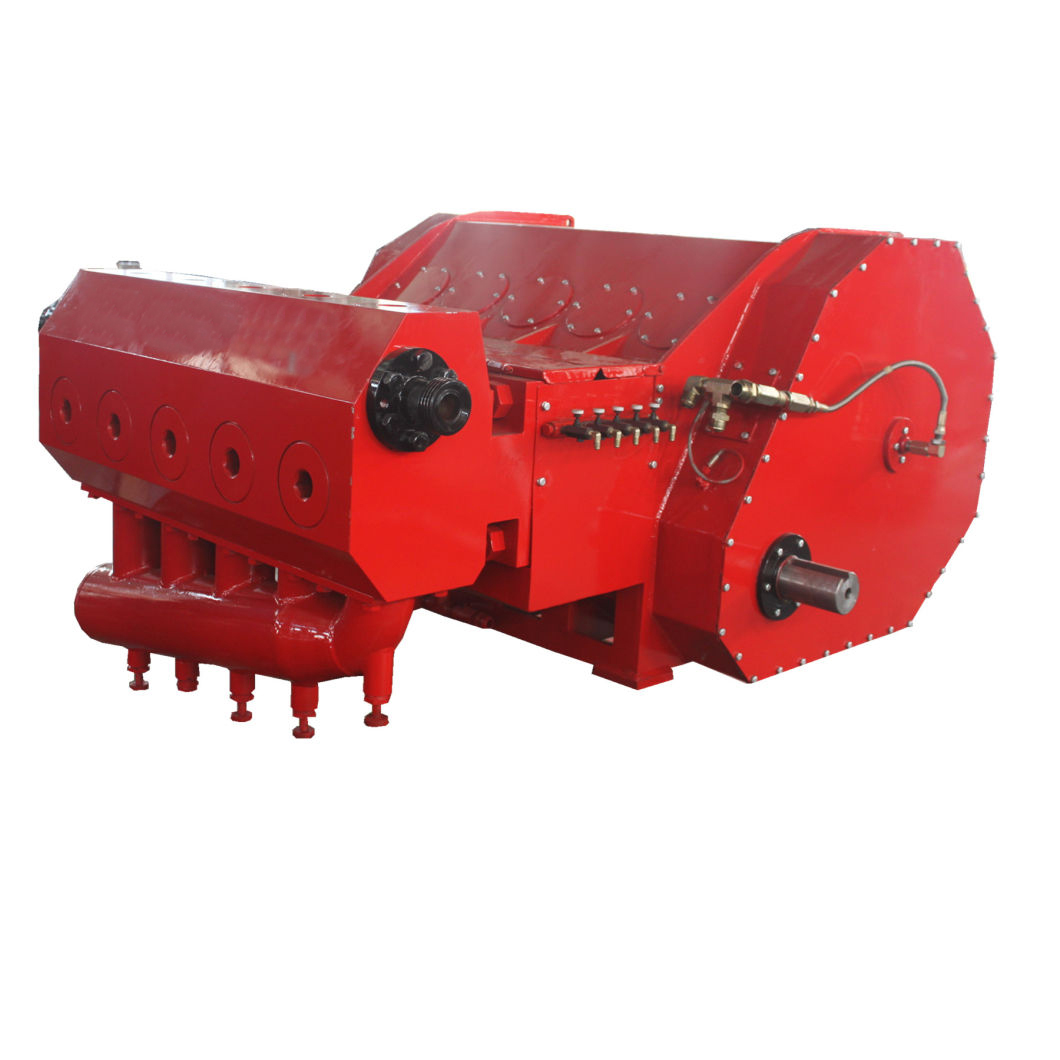

KQZ2500 Pump Well Service Plunger Fracturing Pump

KQZ2500 Pump is a reciprocating, volumetric, single acting and horizontal five-cylinder plunger pump, with a maximum input power of 1866KW (2500HP) and stroke of 203.2mm (8"). The The plunger diameter can be selected between 3 1/2" and 5 1/2".To meet users' demands for different pressure and displacement. All fluid ends of different diameter plungers match with the same Power end.The pump is used for intermittent oil well operations, such as acidification, fracturing and pressure well.
Availability:
sharethis sharing button

KQZ2500 Pump is a reciprocating, volumetric, single acting and horizontal five-cylinder plunger pump, with a maximum input power of 1866KW (2500HP) and stroke of 203.2mm (8"). The The plunger diameter can be selected between 3 1/2" and 5 1/2".To meet users' demands for different pressure and displacement. All fluid ends of different diameter plungers match with the same Power end.The pump is used for intermittent oil well operations, such as acidification, fracturing and pressure well.


Compared with same power plunger pump in the market, the 2500 pump has the following advantages:

1, It has the characteristics of high pressure, large displacement, and it has been widely applied in fracturing performance of oil market in recent years, which is a mature product through market survey, and the first choice of the current large power fracturing products;

2, Unique sealing structure design which guarantee the machine running more reliable;

3, Using the herringbone gear retarding mechanism, which is stable and reliable, and can effectively ensure the pump perform in low noise and high efficiency for a long time;

4, In small volume, light weight, it is more suitable for on-board equipment, while provide large displacement and high pressure, which is easy for maintenance and operation;

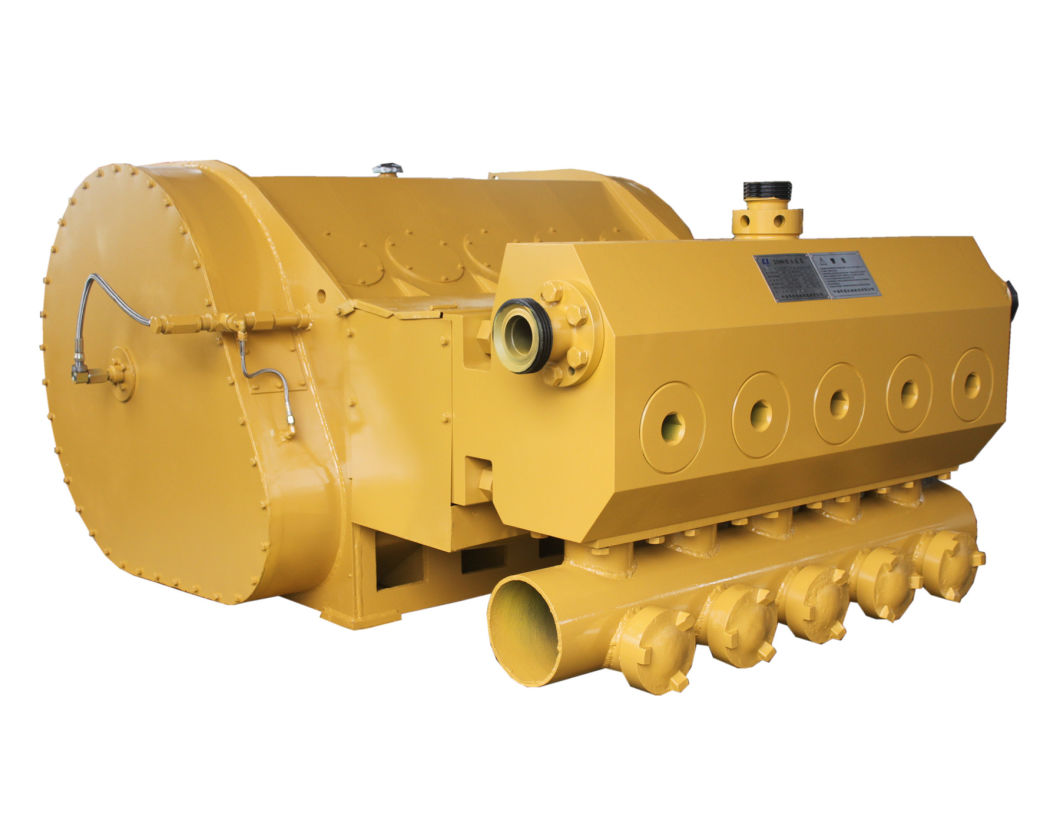

Well Service Plunger Fracturing Pump


Performance Parameters under Different Operation Conditions

Plunger Size
mm
(rpm)
111 150 200 250 330
Flow
GPM
(L/min)
Pressure
Psi
(MPa)
Flow
GPM
(L/min)
Pressure
Psi
(MPa)
Flow
GPM
(L/min)
Pressure
Psi
(MPa)
Flow
GPM
(L/min)
Pressure
Psi
(MPa)
Flow
GPM
(L/min)
Pressure
Psi
(MPa)
88.9 700 140 950 107.6 1264 80.8 1582 64.6 2086 49.0
95.3 802 121.9 1086 94.1 1446 70.7 1809 56.5 2385 42.8
101.6 912 107.2 1234 82.8 1643 62.2 2055 49.7 2710 37.7
114.3 1154 84.7 1563 65.4 2082 49.1 2604 39.2 3437 29.7
127 1427 68.6 1930 52.9 2574 39.7 3217 31.8 4247 24.1
139.7 1726 56.7 2335 43.8 3111 32.8 3891 26.3 5132 19.9
Input Power 1790kW 1866kW 1866kW 1866kW 1866kW
pinion shaft speed 705 953 1271 1588 2100
