A Beginner's Guide to Fracking Pumps

Fracking, short for hydraulic fracturing, is a revolutionary technology that has transformed the oil and gas industry. At the heart of this process lies a critical piece of equipment known as a fracking pump. In this beginner's guide, we will explore what fracking pumps are, how they work, their key components, and their role in the hydraulic fracturing process.

What Are Fracking Pumps?

Fracking pumps, also known as hydraulic fracturing pumps or frac pumps, are high-pressure pumps used to inject fluids into underground rock formations. These pumps are a central component of the hydraulic fracturing process, which is employed to extract oil and natural gas from deep reservoirs.

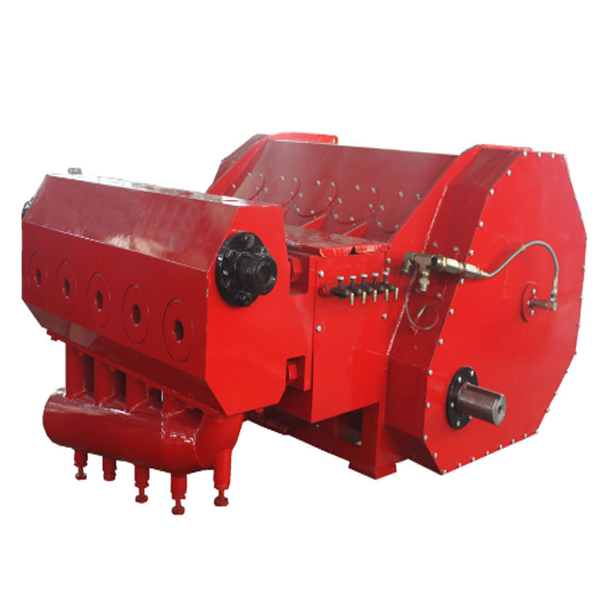

Pump Well Service Plunger Fracturing Pump

The Hydraulic Fracturing Process

Before we dive into the details of fracking pumps, it's essential to understand the hydraulic fracturing process. Hydraulic fracturing is a technique used to release oil and natural gas from underground rock formations, such as shale or tight sandstone. The process involves the following steps:

1. Well Drilling: A wellbore is drilled deep into the earth, typically thousands of feet below the surface, to reach the target rock formation.

2. Well Casing: Steel pipes, called casings, are inserted into the well to protect the surrounding groundwater and to prevent the wellbore from collapsing.

3. Fracturing Fluid Preparation: A mixture of water, sand, and chemicals, known as fracturing fluid, is prepared. This fluid will be injected into the wellbore at high pressure.

4. Pump Injection: Fracking pumps are used to inject the fracturing fluid into the wellbore at extremely high pressures, creating fractures in the surrounding rock.

5. Proppant Injection: As the fluid is injected, proppants (typically sand or ceramic beads) are added to the mix. These proppants hold open the fractures after the pressure is released, allowing hydrocarbons to flow to the surface.

6. Fracture Propagation: The high-pressure fracturing fluid creates fractures in the rock that extend outwards from the wellbore. These fractures provide pathways for the release of oil and gas.

7. Production: Once the fractures are created, the oil and gas can flow through the fractures and up the wellbore to the surface for collection.

The Role of Fracking Pumps

Fracking pumps are essential for several critical tasks within the hydraulic fracturing process:

1. High-Pressure Injection: Fracking pumps generate the incredibly high pressures needed to overcome the resistance of the rock and create fractures. The pressures often reach thousands of pounds per square inch (psi).

2. Fluid and Proppant Injection: In addition to injecting the fracturing fluid, these pumps are responsible for injecting proppants into the fractures to keep them open, allowing oil and gas to flow more freely.

3. Precise Control: Modern fracking pumps are equipped with advanced control systems that allow operators to monitor and regulate crucial parameters such as pressure, flow rate, and the composition of the fracturing fluid in real-time.

Triplex Well Service Pump TWS600 Cementing Pump Triplex Plunger High Pressure Pump

Components of Fracking Pumps

Fracking pumps consist of several key components, each with a specific function:

1. Power End:

- This component includes the engine or motor that drives the pump's reciprocating pistons. It generates the power needed to create the high pressures required for fracking.

2. Fluid End:

- The fluid end of the pump comprises valves, seats, and plungers. These components control the flow of the fracturing fluid and proppants while coming into direct contact with them.

3. Transmission System:

- The transmission system transfers the power generated by the engine or motor to the fluid end. It typically involves a gearbox and a series of belts or gears.

4. Control System:

- Fracking pumps are equipped with advanced control systems, which provide operators with real-time monitoring and precise control over key parameters like pressure, flow rate, and fluid composition.

5. Pump Skid:

- The pump skid is the structural framework that supports and secures the entire pump assembly. It is designed to withstand the high vibrations and forces generated during fracking operations.

Types of Fracking Pumps

There are primarily two types of fracking pumps used in hydraulic fracturing operations:

1. Reciprocating Pumps:

- Reciprocating pumps are the most common type used in hydraulic fracturing. They work by moving a piston back and forth in a cylinder to create the required high pressure. These pumps are known for their reliability and ability to generate the extreme pressures needed for fracturing.

2. Rotary Pumps:

- Rotary pumps, such as gear pumps and screw pumps, are another type used in fracking operations. They operate by the rotation of gears or screws, which displaces the fracturing fluid and pressurizes it. Rotary pumps are known for their smooth operation and versatility in handling a wide range of fluids and proppants.

Safety and Environmental Considerations

Safety is of utmost importance in hydraulic fracturing operations, and fracking pumps are no exception. The high pressures and volumes involved in hydraulic fracturing necessitate rigorous safety measures. Proper maintenance and monitoring of fracking pumps are essential to prevent accidents and environmental issues. Operators must adhere to strict safety protocols, including pressure testing, equipment inspection, and emergency shutdown procedures.

In addition to safety, environmental concerns are a significant aspect of hydraulic fracturing. The chemicals used in the fracturing fluid and the handling of wastewater are closely regulated to minimize environmental impacts. The industry continues to innovate and develop more environmentally friendly fracturing fluids and practices.

Conclusion

Fracking pumps are integral to the hydraulic fracturing process, enabling the extraction of valuable oil and natural gas resources from deep underground rock formations. These pumps are designed to withstand extreme pressures and provide precise control over the injection of fracturing fluids and proppants. With continued technological advancements, fracking pumps are expected to become even more efficient, environmentally friendly, and reliable, further shaping the landscape of the oil and gas industry. As you delve deeper into the world of hydraulic fracturing, you'll find that fracking pumps are indeed the unsung heroes of the industry, driving progress and ensuring the efficient extraction of vital energy resources.
